Dahua DHI-VTNS2003B-2-A - 2-Wire Switch for Video Intercom System and Door Entry System
Product Features
- Dahua DHI-VTNS2003B-2-A is a 2-wire switch for Dahua video intercom systems and video door entry systems.
- Supports 10-level cascade through the 2-wire port.
- Supports connecting to 20 indoor monitors and 2 door stations.
- Two RJ45 ports at 10 Mbps or 100 Mbps, two cascade ports and one device port, with guide rail mounting.
Dahua DHI-VTNS2003B-2-A - 2-Wire Switch for Video Intercom System

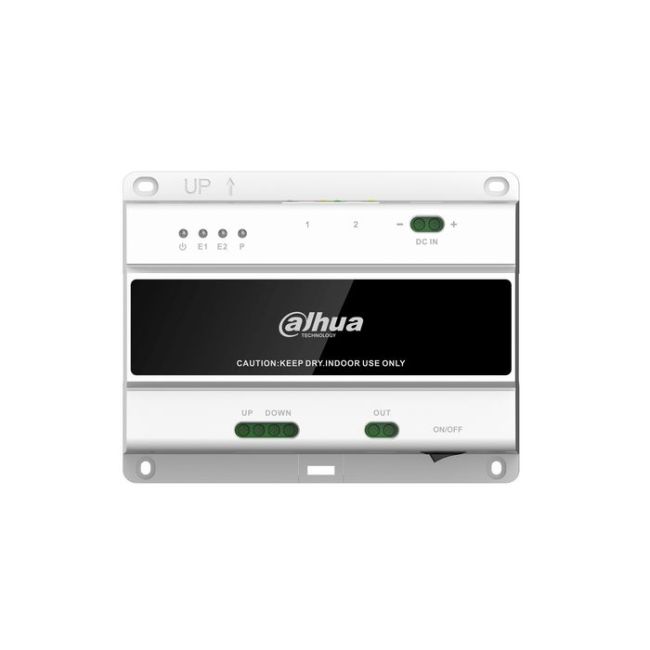

The Dahua DHI-VTNS2003B-2-A is a 2-wire switch for a Dahua video intercom system. It forms part of a video door entry system, linking the indoor monitors and door stations over 2-wire. Dahua describes the VTNS2003B-2 as a 2-wire switch that supports 10-level cascade through the 2-wire port, connects up to 20 indoor monitors and 2 door stations, and can also connect through an RJ45 port. Dahua's datasheet and UK product page are for the VTNS2003B-2; this listing carries the -A suffix, which Dahua's datasheet does not explain, so the specification below is Dahua's VTNS2003B-2 specification. It is a 2-wire intercom switch with a DC 48 V input, not a PoE switch.
Also listed as VTNS2003B-2-A.
Key features
- Supports 10-level cascade through the 2-wire port.
- Supports connecting to 20 indoor monitors and 2 door stations.
- Supports connecting through an RJ45 port.
- Two 2-wire ports for cascade, one 2-wire device port and two RJ45 ports (10 Mbps/100 Mbps Ethernet).
- 4 status indicator lights.
- PC + ABS casing in white, with guide rail mounting.
- DC 48 V, 1 A-5 A power supply.
Technical specification
| Model | DHI-VTNS2003B-2-A (Dahua datasheet model: DHI-VTNS2003B-2) |
|---|---|
| Communication mode | 2-wire |
| Cascade ability | 10 levels |
| Connectable devices | 20 indoor monitors and 2 door stations |
| 2-wire ports | Two 2-wire ports for cascade; one 2-wire device port |
| Network ports | Two RJ45 ports, 10 Mbps/100 Mbps Ethernet |
| Status indicator lights | 4 |
| Casing | PC + ABS |
| Appearance colour | White |
| Power supply | DC 48 V, 1 A-5 A |
| Installation | Guide rail mount |
| Product dimensions | 131.1 mm x 103 mm x 40 mm (5.16" x 4.06" x 1.57") |
| Operating temperature | -10 °C to +55 °C (14 °F to 131 °F) |
| Operating humidity | 10%-95% (RH, non-condensing) |
| Operating altitude | 0-3000 m |
| Power consumption | ≤ 15 W (KIT) |
| Net weight | 0.25 kg (0.55 lb) |
| Gross weight | 0.39 kg (0.86 lb) |
Works with
Dahua's VTO4202F-P1 datasheet lists the DHI-VTNS2003B-2-A as a 2-wire switch accessory for the VTO4202F modular door station (maximum power supply distance 50 m). Stocked by Zenith: the Dahua DHI-VTO4202F-P IP apartment door station. Related Dahua video door entry products at Zenith: Dahua DHI-KTX01(F) 2-wire video door entry kit, flush mount, Dahua DHI-KTX01(S) 2-wire video door entry kit, surface mount, Dahua DHI-VTO2202F-P-S3 video intercom door station and Dahua DHI-VTO3222E-P outdoor keypad station.
Common questions
How many indoor monitors and door stations can the Dahua DHI-VTNS2003B-2-A connect?
Dahua lists support for connecting to 20 indoor monitors and 2 door stations.
How many levels can it cascade?
Dahua lists 10-level cascade through the 2-wire port, with two 2-wire ports for cascade and one 2-wire device port.
What network ports does it have?
Two RJ45 ports, 10 Mbps/100 Mbps Ethernet.
How is it mounted and powered?
It is a guide rail mount unit with a DC 48 V, 1 A-5 A power supply and 4 status indicator lights.
Is it a PoE switch?
No. It is a 2-wire switch for a Dahua video intercom system. Dahua lists a 2-wire communication mode and a DC 48 V power supply, and does not list PoE.
Which Dahua intercom products does it work with?
Dahua's VTO4202F-P1 datasheet lists it as a 2-wire switch for the VTO4202F door station. For other systems, tell us your exact components and we will confirm compatibility before you order.
