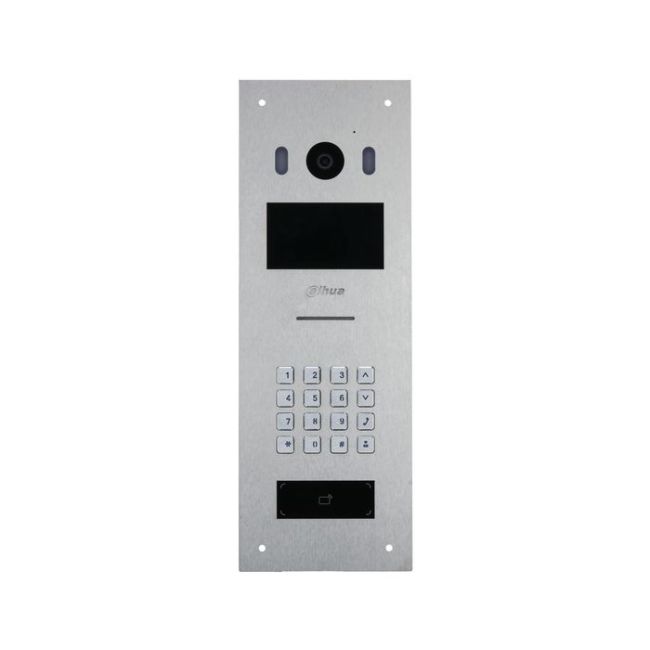

Dahua DHI-VTO6521K-S2 2MP IP video intercom system door station with 4.3-inch LCD, card and password door entry

Skip to the beginning of the images gallery

Dahua DHI-VTO6521K-S2 - 2MP IP Video Intercom Door Station

Name: Dahua DHI-VTO6521K-S2 - 2MP IP Video Intercom Door Station
Brand: Dahua
SKU: DHI-VTO6521K-S2
Price: 349.16 GBP
Availability: InStock

£349.16 £290.97

In stock

SKU

DHI-VTO6521K-S2

Product Features

Dahua DHI-VTO6521K-S2 is a 2MP IP video intercom door station for an apartment video door entry system, with a 4.3-inch LCD.
Gate intercom: unlock by password, IC card, QR code (supported by DSS) or remotely, for 40,000 users and 20,000 cards.
Stainless steel IP65 and IK08 panel, 120 dB WDR and auto white light.
Powered by 12 VDC or standard PoE, flush or wall mount.

Product Description

Product Specifications

Dahua DHI-VTO6521K-S2 - 2MP IP Video Intercom Door Station

The Dahua DHI-VTO6521K-S2 (VTO6521K-S2) is a 2MP IP video intercom door station with a 4.3-inch LCD, built for apartment door entry at multi-tenant entrances such as office buildings, compound buildings and communities. It has a 1/2.8" 2MP camera with 120 dB WDR and auto white light, a stainless steel panel rated IP65 (IK08 per Dahua's product page), and can be powered from 12 VDC or standard PoE. The video intercom works with Dahua indoor monitors (VTH), master stations (VTS) and the app, so the door station can form part of an intercom system and a video door entry system for the building.

Also listed as VTO6521K-S2.

Who is it for?

Apartment blocks, office buildings and multi-occupancy entrances that need a video intercom door station with password, IC card and remote unlock, and support for a large number of users. Dahua's application diagram also shows a fence entrance, so it can be used as a gate intercom as well as a door entry system for a building.

Key features

4.3" LCD with a resolution of 800 x 480 and a 2 MP HD camera
Smart illumination, which can reduce light pollution
Supports 40,000 users and 20,000 cards
Alarms including duress, tamper, emergency and door detector alarms
Leaves audio and video messages when no one responds through the indoor monitor (an SD card in the VTH is required)
Unlock by password, IC card, QR code (supported by DSS) or remotely, through the indoor monitor, management center or app
Provides 12 VDC, 500 mA power for an extension module or card reader
IP65 rated (silicone sealant required, see the quick start guide); standard PoE power supply

Technical specification

Model	DHI-VTO6521K-S2 (Dahua product page name: VTO6521K-S2)
Product type	IP apartment door station
Display	4.3-inch non-touchscreen, 800 (H) x 480 (V), mechanical buttons
Camera	1/2.8" 2MP CMOS, high definition, low illumination
Field of view	H: 95°; V: 50°; D: 110°
WDR / noise reduction	120 dB / 3D NR
Video compression	H.264; H.265, 25 fps, 1,024 kbps to 8,192 kbps
Video resolution	Main stream: 720P/D1/WVGA; sub stream: 1080P/720P/D1/WVGA/CIF/QVGA
Light compensation	Auto white light
Audio	Two-way audio, built-in speaker, 1 channel input, G.711a; G.711u; PCM, echo suppression and digital noise reduction
Communication	Full digital; verification by remote, card or password
Card	IC card, reading distance 0 cm to 4 cm, issue card locally, 20,000 cards
Ports	RS-485, Wiegand, 2 alarm inputs, 2 alarm outputs, 1 x 12 V 500 mA power output, exit button, door status detection, lock control, 1 x 10/100 Mbps Ethernet
Protocols	FTP; RTMP; HTTP/HTTPS; DNS; RTSP; SSH; ONVIF; SIP; RTP; CGI
Power supply	12 VDC, 2 A; standard PoE
Power consumption	5 W standby, 18 W working
Installation	Flush mount; wall mount
Casing	Stainless steel precision casting, silver
Protection	IP65 (silicone sealant required); IK08 per Dahua product page
Operating temperature	-30 °C to +60 °C, 0% to 90% RH non-condensing, altitude 0 m to 1,300 m
Dimensions / gross weight	406 x 143 x 54.05 mm (H x W x D) / 2.3 kg
Certification	CE

Works with

VTOB103 flush mounted box (listed by Dahua for this door station)
VTM57R surface mounted box with rain cover (listed by Dahua for this door station)
Related door station: DHI-VTO4202F-P

What you will need

Compatible Dahua indoor monitors (VTH) for each apartment, or a master station (VTS) or the app
A 12 VDC power supply, or an 802.3at PoE switch (a PSE switch that complies with 802.3at is needed if the 12 V output charges a load)
A flush mounted box (VTOB103) or surface mounted box with rain cover (VTM57R)
Silicone sealant for the shell, as described in Dahua's quick start guide

Common questions

How can residents and visitors unlock the door?

Password, IC card, QR code (supported by DSS) or remotely, through the indoor monitor, management center or app.

How many users and cards does it support?

Dahua lists 40,000 users and 20,000 cards.

Is it suitable for outdoor apartment entrances?

Yes, it works as an outdoor intercom door station. It is rated IP65 (silicone sealant is required, see the quick start guide) and IK08 on Dahua's product page, and operates from -30 °C to +60 °C.

Can it be used as a gate intercom?

Dahua's datasheet application diagram shows a fence entrance, so it can be used as a gate intercom at a fenced entrance as well as at building entrances.

How is it powered?

From 12 VDC, 2 A or standard PoE. If the 12 V output powers a load, connect it to a PSE switch that complies with 802.3at.

Which mounting boxes does Dahua list?

Dahua lists the VTOB103 flush mounted box and the VTM57R surface mounted box with rain cover.

What happens if nobody answers?

It supports leaving audio and video messages when no one responds through the indoor monitor (an SD card in the indoor monitor is required).

Full manufacturer specification: Dahua product page

Download the Dahua DHI-VTO6521K-S2 datasheet (PDF).
