Dahua PFM700-E - HDMI Extender over CAT5e/CAT6 Cable

Dahua PFM700-E

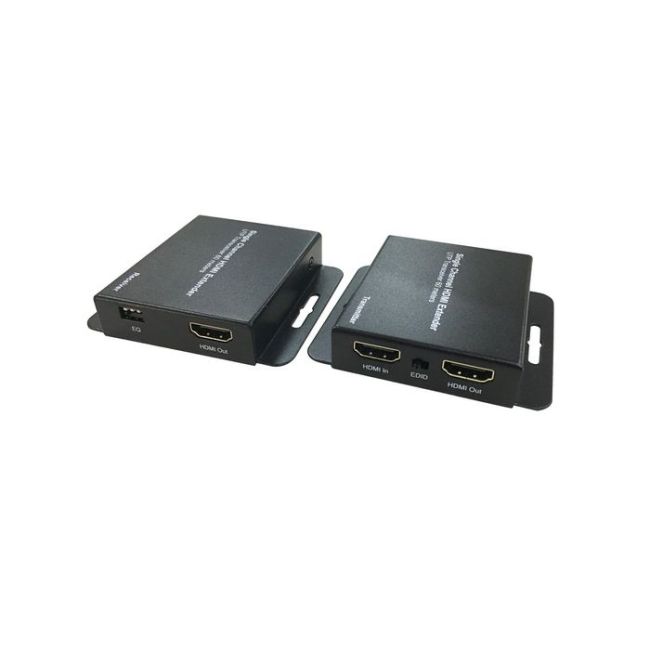

The Dahua PFM700-E is an HDMI extender that sends 1 channel of HDMI video over a single CAT5e or CAT6 cable (HDMI over CAT6), up to 50m (164ft) with pure copper CAT6 cable. The set has a transmitter and a receiver, supports resolutions up to 1080p, and Dahua lists it in its Video Extender Series. Only the transmitter needs power.

Key features

• Real-time HDMI transmission with no delay and strong anti-interference.
• 50m (164ft) range with pure copper CAT6 cable (DC impedance less than 9.5 ohm for every 100m).
• Single UTP cable, CAT-5E or CAT-6, carries 1 channel of HDMI.
• Supports HDMI 1.3 and lower, HDCP 1.2, EDID and HDMI local loop output.
• Supports one-way infrared remote control signal transmission.
• Input voltage DC5V, supplied to the transmitter only.
• Anti-thunder, anti-static and anti-interference protection.
• No driver program to install and no network parameters to set.

Technical specification

Package information (as listed by Dahua)

• HDMI extender PFM700-E: 1 transmitter and 1 receiver
• User manual
• IR transmit cable and IR receive cable
• DC5V 1A power adapter

Related

Need VGA instead of HDMI? See the Dahua PFM710 VGA extender, also listed in Dahua's Video Extender Series.

Common questions

How far can the Dahua PFM700-E extend HDMI?

Dahua states 50m (164ft) when using pure copper CAT6 cable with a DC impedance of less than 9.5 ohm for every 100m.

Does the receiver need its own power supply?

Dahua lists the DC5V input as supplied for the transmitter only.

Which resolutions does it support?

1080P, 1080I, 720P, 576P, 576I, 480P and 480I, with HDMI 1.3 and lower and HDCP 1.2 supported.

Can I use an infrared remote control through it?

Yes. It passes a one-way infrared remote control signal, and an IR transmit cable and IR receive cable are listed in the package.

Which cable does it use?

A single UTP cable, CAT-5E or CAT-6. The 50m figure applies to pure copper CAT6.

Do I need to install drivers or set network parameters?

No. Dahua states there is no driver program to install and no network parameters to set.

Full manufacturer specification: Dahua product page

Dahua datasheet for the PFM700-E: PFM700-E datasheet (PDF)
