Dahua DH-HAC-HDBW1500EP-S2 - 5MP HDCVI IR Vandal-Proof Dome Camera, 2.8mm
Product Features
- 5MP (2880 × 1620) HDCVI dome camera, up to 25fps at 5MP
- 2.8mm fixed lens (111° horizontal)
- Smart IR up to 30m
- IP67 weatherproof and IK10 vandal-proof
- CVI/TVI/AHD/CVBS switchable output
- 12V DC, max 3.5W, -40°C to +60°C

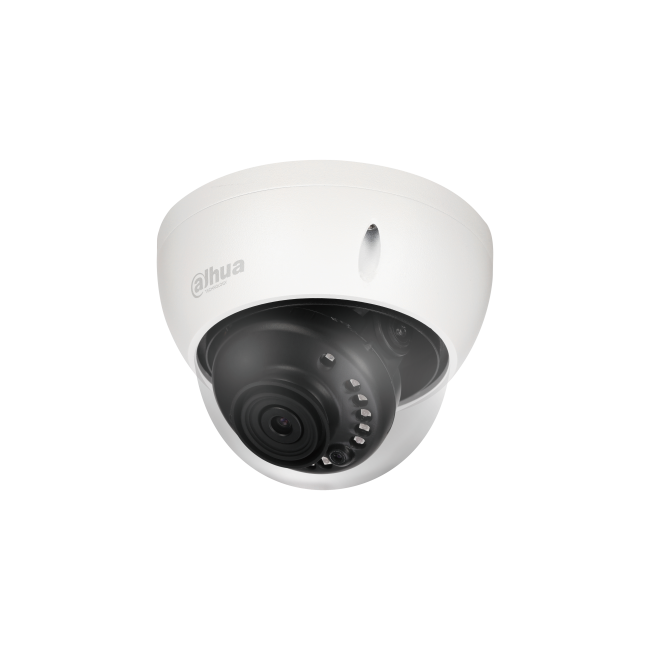

Dahua DH-HAC-HDBW1500EP-S2: 5MP HDCVI IR Vandal-Proof Dome Camera
The Dahua DH-HAC-HDBW1500EP-0280B-S2 (listed by Dahua as the HAC-HDBW1500E, S2 version) is a compact 5MP HDCVI dome camera from Dahua's HDCVI Lite Series. It records 5MP at up to 25fps through a wide 2.8mm lens, with Smart IR up to 30m for night coverage. The IK10 vandal-resistant dome and IP67 rating make it a sensible choice where a camera is within reach or exposed to the weather.
Who is it for?
Shops, offices, communal areas, stairwells and entrances where a low-profile dome is preferred and the camera might be tampered with. It is also an easy upgrade for older analogue systems, as it runs over existing coax.
Key specification
| Model | DH-HAC-HDBW1500EP-0280B-S2 (HAC-HDBW1500E) |
|---|---|
| Series | Dahua HDCVI Lite Series |
| Image sensor | 1/2.7" CMOS, 5MP |
| Max resolution | 2880 × 1620 at 25fps (CVI) |
| Lens | 2.8mm fixed-focal, M12, F1.6 |
| Field of view | H 111°, V 58°, D 132° |
| Min. illumination | 0.005 lux @ F1.6 (30 IRE); 0 lux with IR on |
| IR | 12 LEDs, Smart IR up to 30m |
| Day/Night | Auto (ICR) |
| WDR / NR | DWDR; BLC, HLC; 2D NR |
| Video output | CVI/TVI/AHD/CVBS switchable on one BNC |
| Power | 12V DC ±30%, max 3.5W (IR on) |
| Protection | IP67, IK10 |
| Housing | Plastic dome cover, metal upper casing and pedestal |
| Operating temperature | -40°C to +60°C |
| Dimensions / weight | Ø109.9mm × 81.0mm; 0.31kg net |
DORI distances
From Dahua's datasheet (EN 62676-4):
| Lens | Detect | Observe | Recognise | Identify |
|---|---|---|---|---|
| 2.8mm | 63.6m | 25.4m | 12.7m | 6.4m |
Mounting accessories (from Dahua's datasheet)
- DH-PFA136 junction box
- PFB203W wall mount bracket (alone or with PFA152-E)
- DH-PFA152-E pole mount bracket (with PFB203W)
- DH-PFB220C ceiling mount bracket with DH-PFA106 mount adapter
- PFM904 integrated mount tester
What you will need
- An HD analogue recorder, ideally a Dahua Penta-brid XVR
- RG59 coax (up to 700m for 5MP) or UTP with baluns (up to 300m)
- A 12V DC power supply
Frequently asked questions
Is this camera vandal-proof?
Yes. It is rated IK10 for impact resistance as well as IP67 against dust and water.
Does it have audio?
No. This model has no microphone or audio input.
How far does the night vision reach?
Smart IR covers up to 30m and adjusts its intensity so close subjects are not over-exposed.
Will it work with a non-Dahua DVR?
Yes, in most cases. The output can be switched between CVI, TVI, AHD and CVBS to suit the recorder.
Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales. Browse the full Dahua range or contact us on 01902 902251.
| Product Code | DH-HAC-HDBW1500EP-0280B-S2 |
|---|---|
| Manufacturer | Dahua |
| Illumination Distance | Up to 30m |
| WDR | DWDR |
| Noise Reduction | 2DNR |
| Built-in Mic | No |
| Material | Metal & Plastic |
| Protection Level | IP67, IK10 |
| Power Supply | 12V DC |
| Product Type | HDCVI Camera |
| Max Resolution | 5MP |
| Lens Size | 2.8 mm |
| Lens Type | Fixed |
| Angle of adjustment | Pan 0°–355°, Tilt 0°–65°, Rotation 0°–355° |
| Day & Night | Auto (ICR) |
| Noise Reduction | 2D NR |
| BLC | BLC/HLC/DWDR |
| Min. Illumination | 0.005 Lux/F1.6, 30IRE, 0 Lux IR on |
| Video Output | CVI/TVI/AHD/CVBS switchable via one BNC port |
| Protection Level, Ingress Protection | IP67, IK10 |
| Operating Temperature | -40°C to +60°C |
| Power | 12V DC ±30% |
| Dimensions | Ø109.9mm × 81.0mm |
