Dahua DH-HAC-HDBW2241FP-A-0280B-S2 - 2MP 1080p Starlight HDCVI CCTV Dome Camera

Dahua DH-HAC-HDBW2241FP-A: 2MP 1080p Starlight HDCVI CCTV Dome Camera

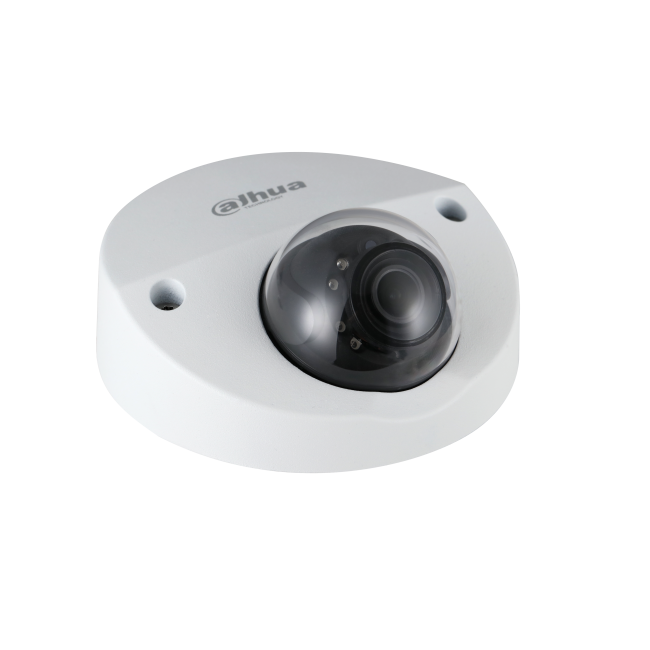

The Dahua DH-HAC-HDBW2241FP-A-0280B-S2 is a 2MP 1080p Starlight HDCVI IR dome CCTV camera from Dahua's HDCVI Pro Series. The Starlight sensor and 120dB true WDR hold detail and accurate colour in very low light and high-contrast scenes, and the -A version adds a built-in microphone with audio sent over the coax. An aluminium housing rated IP67 and IK10 suits both indoor and outdoor use.

Also listed as HAC-HDBW2241FP-A-0280B-S2.

Who is it for?

Offices, shops, receptions, corridors and car parks where a discreet, tamper-resistant dome is wanted with good low-light performance and audio evidence, on a new or existing coax installation.

Key features

• Starlight sensor with 120dB true WDR and 3D noise reduction
• 1080p (1920 x 1080) at 25/30fps, and 720p at up to 60fps
• Built-in microphone and audio input, with audio over the coax cable
• Smart IR up to 20m from 8 IR LEDs
• IP67 and IK10, with 4kV lightning protection
• HD video over coax: up to 800m at 1080p, or up to 300m over UTP (Dahua lab test)
• BLC, HLC and WDR modes, with multi-language OSD

Technical specification

DORI distances

From Dahua's datasheet (EN 62676-4):

Works with

Mounting accessories listed in Dahua's datasheet:

• DH-PFA139 junction box
• PFB204W wall mount (alone or with PFA152-E)
• DH-PFA152-E pole mount (with PFB204W)

You will also need an HDCVI recorder such as a Dahua Penta-brid XVR for audio over coax, RG59 coax or UTP with baluns, and a 12V DC power supply. Similar Zenith models: HAC-HDBW2241E (2MP, no -A suffix) and the DH-HAC-HDBW2501EP-0280B-S2 5MP dome.

Common questions

What does Starlight mean?

Starlight is Dahua's low-light sensor technology. It lets the camera capture more detail and accurate colour at night or in limited light, so it performs well in low light (0.004 lux minimum illumination at F1.6). Read our Starlight low-light cameras guide.

Does it record sound?

Yes. The -A model has a built-in microphone and an audio input, and audio is carried over the coax cable to a compatible HDCVI recorder.

Is it suitable outdoors?

Yes. It is rated IP67 against dust and water and IK10 for impact resistance, and runs from -40°C to +60°C. It works as a waterproof camera and an outdoor CCTV camera.

How far does the IR reach?

As an infrared camera it reaches up to 20m with Smart IR, which is well suited to rooms, corridors and entrances.

What does HDCVI mean?

HDCVI is Dahua's HD analogue technology, so this is an HD analogue CCTV camera that carries HD video over existing coaxial cable. See HDCVI cameras explained and Penta-brid recorders explained.

Which lens does this listing have?

The 2.8mm lens (110° horizontal). Dahua also lists a 3.6mm version of this camera under a different part number.

Full manufacturer specification: Dahua product page

Supplied by Zenith Security Co, Wolverhampton. We deliver to England, Scotland and Wales, or you can collect from our Wolverhampton trade counter (please call first).
