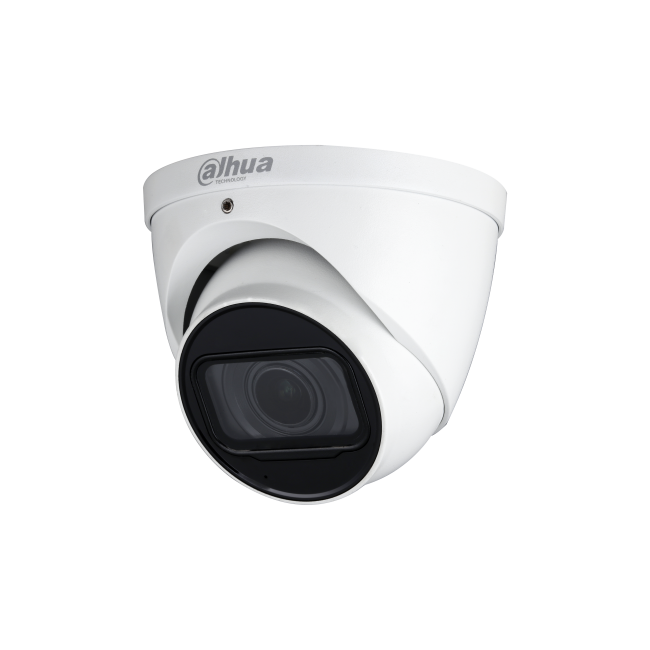

Dahua DH-HAC-HDW1801TP-Z-A-27135-S2 - 8MP 4K HDCVI IR Turret (Eyeball) CCTV Camera
Product Features
- Dahua DH-HAC-HDW1801TP-Z-A-S2 8MP 4K HDCVI IR turret (eyeball) CCTV camera, a waterproof outdoor security camera.
- Infrared night vision up to 60m with Smart IR, 120 dB true WDR and 3D noise reduction.
- Auto focus, motorised 2.7-13.5mm varifocal lens.
- Built-in microphone, 12 VDC power, IP67 weatherproof metal housing.
Dahua DH-HAC-HDW1801TP-Z-A-S2 — 8MP 4K HDCVI IR Night Vision Turret Eyeball CCTV Camera
The Dahua DH-HAC-HDW1801TP-Z-A-S2 (stocked as DH-HAC-HDW1801TP-Z-A-27135-S2, also written HAC-HDW1801TP-Z-A-27135-S2; Dahua's datasheet calls the family DH-HAC-HDW1801T-Z/T-Z-A) is an 8MP 4K HDCVI IR turret CCTV camera with a motorised varifocal 2.7-13.5mm lens and a built-in microphone. Dahua's own name for this housing is "eyeball". Smart IR reaches up to 60m for night vision, and HDCVI carries video, audio, data and power signals over one coaxial cable. Its IR LEDs reach up to 60m, and its IP67 rating (dust-tight and protected against immersion) means it can be mounted outdoors, working from -30 °C to +60 °C.
Also listed as HAC-HDW1801TP-Z-A-27135-S2, HAC-HDW1801T-Z-A-27135-S2 and HAC-HDW1801T-Z-A.
Key features
- 8MP 4K picture (3840 × 2160) from a 1/2.7" CMOS sensor.
- Auto focus and a motorised vari-focal 2.7-13.5mm lens.
- Smart IR night vision up to 60m, with automatic or manual IR control.
- 120 dB true WDR, 3D noise reduction, electronic defog and 4× digital zoom.
- Built-in microphone, with the audio carried back over the coax cable.
- Video output switchable between CVI, TVI, AHD and CVBS on one BNC port.
- 12 VDC ±30% power, IP67, metal casing, working from -30 °C to +60 °C.
- Up to 700m over coaxial cable and 300m over UTP for 4K and 4MP HD video (Dahua laboratory results).
Technical specification
| Model | DH-HAC-HDW1801TP-Z-A-27135-S2 (family datasheet DH-HAC-HDW1801T-Z/T-Z-A) |
|---|---|
| Camera type | 8MP 4K HDCVI IR turret (eyeball) camera |
| Image sensor | 1/2.7" CMOS |
| Effective pixels | 3840 × 2160 (8MP, 4K) |
| Video output | CVI, TVI, AHD or CVBS, switchable, one BNC port |
| Lens | Motorised vari-focal 2.7-13.5mm, fixed iris, auto focus |
| IR | Smart IR up to 60m, auto or manual control |
| Day/night | Auto (ICR) |
| Wide dynamic range | 120 dB; BLC, HLC, WDR |
| Noise reduction | 3D NR |
| White balance and gain | Auto or manual |
| Electronic defog | Yes |
| Digital zoom | 4× |
| Privacy masking | Off/On (8 areas, rectangle) |
| Audio | Built-in microphone (one channel) |
| Power | 12 VDC ±30% |
| Protection | IP67 |
| Casing | Metal |
| Operating temperature | -30 °C to +60 °C, below 95% humidity (non-condensing) |
| Size | 122.0 mm × 104.8 mm |
| Pan / tilt / rotation | Pan 0°-360°; tilt 0°-78°; rotation 0°-360° |
| Transmission distance (4K) | Up to 700m coaxial cable; up to 300m UTP |
Works with
- Dahua DH-PFA130-E water-proof junction box
- Dahua PFB203W water-proof wall mount bracket
- Dahua DH-PFA152-E pole mount bracket
- Dahua DH-PFM800-4K passive video balun pair
- Dahua DH-PFA106 adapter plate with the Dahua DH-PFB220C ceiling mount bracket
- Dahua DH-PFM904 camera tester
Common questions
Is this a 4K camera?
Yes. Dahua lists effective pixels of 3840 × 2160, which is 4K (8MP).
Is the lens motorised?
Yes. It is a motorised vari-focal 2.7-13.5mm lens with auto focus, so the view can be set without changing the lens.
How far can it see at night?
Smart IR reaches up to 60m, with automatic or manual IR control.
Does it record sound?
Yes. It has a built-in microphone, and HDCVI sends the audio back over the coaxial cable.
What is HDCVI?
HDCVI is Dahua's technology for sending HD video, audio, data and power over a single coaxial cable, so an existing analogue coax system can be upgraded without replacing the cabling. Our HDCVI cameras explained guide covers it in more detail.
Which recorder do I need?
The camera outputs CVI, TVI, AHD or CVBS. Our Penta-brid recorders explained guide covers recorders that take HDCVI cameras.
How far can I run the cable?
Dahua's laboratory results are up to 700m over coaxial cable and up to 300m over UTP cable for 4K and 4MP HD video.
Specifications on this page come from Dahua's datasheet for the DH-HAC-HDW1801T-Z/T-Z-A family, which does not list the S2 revision separately. Please ask us if you need a detail that is not shown here.
Supplied by Zenith Security Co, Wolverhampton. We deliver to England, Scotland and Wales, or you can collect from our Wolverhampton trade counter (please call first).
Browse the full Dahua range, more HD analogue cameras, or contact us on 01902 902251 or visit our Wolverhampton trade counter for advice.
| Product Code | DH-HAC-HDW1801TP-Z-A-27135-S2 |
|---|---|
| Manufacturer | Dahua |
| Style | Eyeball Cameras |
| Illumination Distance | 31–60m |
| WDR | 120dB |
| Noise Reduction | 3DNR |
| Built-in Mic | Yes |
| Material | Metal |
| Protection Level | IP67 |
| Power Supply | 12V DC |
| Product Type | HDCVI Camera |
| Max Resolution | 8MP (4K) |
| Lens Size | 2.7 mm to 13.5 mm |
| Lens Type | Motorized Zoom |
| Angle of adjustment | Pan 0°–360°, Tilt 0°–78°, Rotation 0°–360° |
| Day & Night | Auto (ICR) / Colour / B/W |
| Noise Reduction | 3D NR |
| Min. Illumination | 0.01 lux@F1.5 (Color, 30 IRE); 0.001 lux@F1.5 (B/W); 0 lux (Illuminator on) |
| Video Output | CVI/TVI/AHD/CVBS switchable via one BNC port |
| Protection Level, Ingress Protection | IP67 |
| Operating Temperature | -30°C to +60°C |
| Power | 12V DC ±30% |
| Dimensions | 122.0mm × 104.8mm |
