Dahua DH-IPC-HDW3649HP-ZAS-PV-2712-PRO - 6MP 3K WizColor TiOC Pro AI PoE Eyeball IP CCTV Camera

Dahua DH-IPC-HDW3649HP-ZAS-PV-2712-PRO — 6MP 3K WizColor TiOC Pro Turret IP CCTV Camera, 2.7-12mm

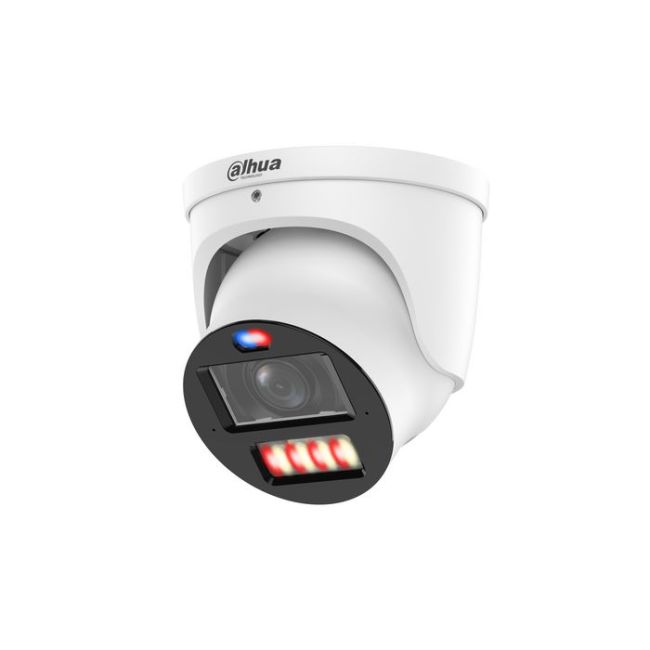

The Dahua DH-IPC-HDW3649HP-ZAS-PV-2712-PRO is a 6MP eyeball (turret) camera with a motorised 2.7-12mm lens, from Dahua's WizColor TiOC PRO range. It combines recording, colour night imaging and active deterrence in one housing, for shop fronts, entrances, yards and car parks.

The motorised lens covers 112 to 48 degrees horizontally, so one model can be framed wide over a forecourt or tight on a gate after installation. A 1/1.8 inch sensor and F1.2 lens give WizColor imaging rated at 0.0005 lux in colour, and multi-core lights provide IR up to 50m.

Red and blue warning lights and a siren give active deterrence, and a dual microphone and speaker allow two-way talk. AI includes SMD 4.0, intrusion, tripwire, stay and loitering detection, face detection and AcuPick. It takes PoE+ (802.3at) or 12V DC, with dual power backup, and is IP67 rated.

Also listed as IPC-HDW3649HP-ZAS-PV-2712-PRO, and without the 2712 lens code (2.7-12mm) as IPC-HDW3649HP-ZAS-PV-PRO.

Key features

• 6MP image: 3288 × 1850 (3K class) at up to 25/30 fps from a 1/1.8" CMOS sensor with an F1.2 lens.
• Motorised vari-focal lens, 2.7-12mm: a horizontal view of 112° at the wide end and 48° at the tele end.
• WizColor: AI-ISP, a large-pixel sensor and a large aperture capture colour images at night, with 0.0005 lux in colour at F1.2.
• Active deterrence: red and blue warning lights and a sound alarm.
• Four multi-core lights (IR and warm light) with Smart Dual Light, each up to 50m.
• Two-way talk: built-in dual microphone and speaker.
• SMD 4.0, perimeter protection (intrusion and tripwire with human and vehicle classification, stay and loitering detection), AcuPick, face detection and AI SSA.
• Electronic image stabilisation, Super AI Coding, 3 streams, and recording to micro SD up to 512GB or to NAS.
• IP67 rated metal housing, 130dB WDR, powered by PoE+ (802.3at) or 12 VDC (±30%).
• Infrared camera: the built-in IR LED reaches up to 50m in the dark, and WizColor adds colour video at night.

Technical specification

AcuPick search: this model supports Dahua AcuPick. See Dahua AcuPick 2.0 explained for how it works and what's new.

How far it can see (Dahua DORI figures)

Works with

• DH-PFA106 mount adapter
• DH-PFA130-E water-proof junction box
• DH-PFA151 corner mount bracket
• DH-PFB220C ceiling mount bracket
• PFA150 pole mount bracket
• PFB305W wall mount bracket
• DH-PFM900-E-V2 integrated mount tester for installers
• Dahua DHI-NVR5216-16P-EI2 16 Channel PoE NVR: 802.3af/at PoE ports up to 25.5W each and cameras up to 32MP

Pairings are suggested on general compatibility (same brand, matching connection type and specification), not as tested combinations.

Related models: the fixed-lens Dahua DH-IPC-HDW3649HP-AS-PV-PRO and the bullet version Dahua DH-IPC-HFW3649T1P-ZAS-PV-2712-PRO.

Common questions

What does TiOC Pro mean?

Dahua lists this camera as a TiOC PRO model, with red and blue warning lights and a sound alarm for active deterrence. TiOC stands for Three-in-One Camera: Dahua's name for a camera that combines monitoring, active deterrence and alarms in one unit. Our TiOC guide explains more.

What is WizColor?

WizColor combines AI-ISP, a large-pixel sensor and a large aperture to capture colour images at night, making use of weak light such as moonlight and city lights. Dahua quotes 0.0005 lux in colour at F1.2.

How far can it see?

In Dahua's DORI figures the wide end (2.7mm) detects at 74.9m and identifies at 7.5m, and the tele end (12mm) detects at 150.5m and identifies at 15.9m.

How is the lens adjusted?

The lens is a motorised vari-focal 2.7-12mm, so the horizontal view runs from 112° at the wide end to 48° at the tele end.

How is it powered?

By 12 VDC (±30%) or PoE+ (802.3at). It uses up to 13.8 W on PoE+ with everything switched on, including the siren and light deterrence.

How does the active deterrence work?

Dahua lists a sound and light alarm using red and blue lights, and the SMD area can be set in warm light areas that support triggering alarms.

Can it be used outdoors?

Yes. It is IP67 rated and operates from -30°C to +60°C, which makes it a waterproof camera and an outdoor camera.

Will it work with a recorder that is not Dahua?

It supports ONVIF Profile S, G, T and M, so it can be added to compatible third-party recorders. Smart Search works together with a Dahua Smart NVR.

Can I talk through the camera?

Yes. It has a built-in dual microphone and speaker for two-way talk.

Full manufacturer specification: DH-IPC-HDW3649H-ZAS-PV-PRO datasheet (PDF)
