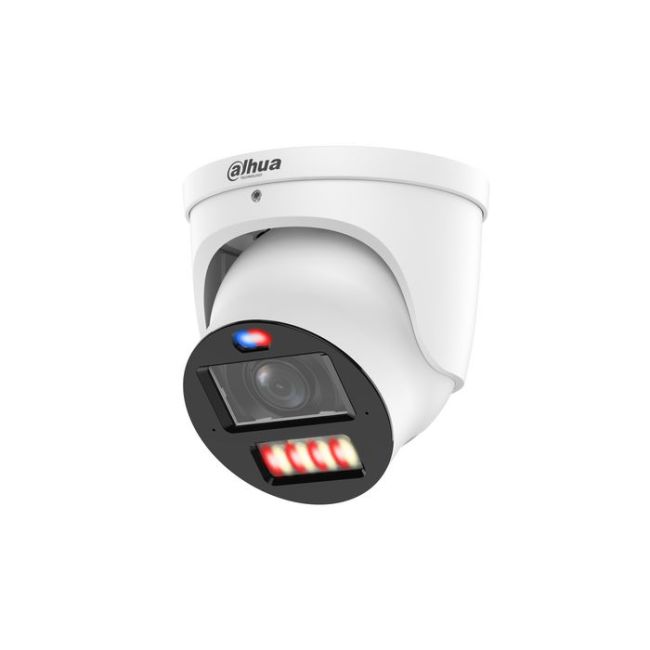

Dahua DH-IPC-HDW3849HP-ZAS-PV-2712-PRO - 8MP 4K WizColor TiOC PRO AI Turret IP CCTV Camera

Dahua DH-IPC-HDW3849HP-ZAS-PV-2712-PRO - 8MP 4K WizColor TiOC PRO AI Eyeball Turret IP CCTV Camera

The Dahua DH-IPC-HDW3849HP-ZAS-PV-2712-PRO is an 8MP 4K WizColor TiOC PRO WizSense AI IP CCTV camera in an eyeball housing, also called a turret camera, with a motorised varifocal lens of 2.7 mm to 12 mm. It combines active deterrence (a sound and light alarm with red and blue lights), two-way talk, WizColor full-colour night images and SMD 4.0 detection with AcuPick target search.

Also listed as IPC-HDW3849HP-ZAS-PV-2712-PRO.

Key features

• 8MP (3840 × 2160, 4K) at 25/30 fps from a 1/1.8" CMOS sensor with an F1.2 large aperture lens (Starlight technology).
• Motorised vari-focal lens, 2.7 mm to 12 mm.
• WizColor: AI-ISP, a large pixel size sensor and a large aperture capture vivid full-colour images at night from weak light such as moonlight and city lights.
• Infrared night vision camera with built-in multi-core light: IR and warm light each reach up to 50 m.
• Active deterrence: sound and light alarm with red and blue lights; one-tap arming and disarming.
• Two-way talk through the built-in dual microphone and speaker.
• SMD 4.0, AcuPick target search (with back-end devices) and AI SSA; intrusion and tripwire classify humans and vehicles; stay detection, loitering detection and face detection (full image).
• 130 dB WDR, 3D NR, HLC and BLC; Super AI Coding (H.265/H.264) saves bandwidth and storage.
• microSD slot up to 512 GB; 1 alarm input and output, 1 audio input and output; gigabit RJ-45 port.
• IP67 protection (dust-tight and protected against temporary immersion in water) for outdoor use; 12 VDC (±30%) or PoE+ (802.3at).

Technical specification

How far it can see (Dahua DORI figures)

Dahua datasheet figures (EN 62676-4), at the wide (W) and tele (T) ends of the lens. They do not reflect intelligent function distances.

Works with

• Dahua DH-PFB220C ceiling mount bracket
• Dahua DH-PFA106 mount adapter
• Dahua PFB305W wall mount bracket
• Dahua DH-PFB2203W wall mount bracket
• Dahua DH-PFA151 corner mount bracket
• Dahua PFA150 pole mount bracket
• Dahua DH-PFA130-E junction box
• Dahua DH-PFM900-E-V2 integrated mount tester

Common questions

Is it a waterproof outdoor security camera?

Yes. Its IP67 housing is dust-tight and protected against temporary immersion in water, so it can be mounted outdoors.

Is it an infrared camera?

Yes. It has built-in IR and warm light for night recording, and WizColor adds full-colour night images.

Is it a motion detection camera?

Yes. SMD 4.0 smart motion detection, with intrusion and tripwire rules, classifies humans and vehicles.

What does TiOC PRO mean?

Dahua lists this camera in its TiOC range, and its page for this model is titled 8MP WizColor TiOC PRO Camera. The datasheet lists a sound and light alarm with red and blue lights for active deterrence. See our TiOC guide.

What does WizColor do?

Dahua WizColor combines AI-ISP, a large pixel size sensor and a large aperture to capture vivid colour images at night, using weak light such as moonlight and city lights, while keeping detail and limiting motion blur.

Is it a 4K camera?

Yes. It is an 8MP camera with a maximum 3840 × 2160 image, which is 4K.

What does the varifocal lens give me?

The motorised vari-focal lens runs from 2.7 mm (112° horizontal view) to 12 mm (48° horizontal view), so one camera can cover a wide scene or reach a distant target.

Is it a Starlight camera?

Dahua says its Starlight technology and large aperture lens let the camera produce clear, vivid images in poor lighting. See our Starlight guide.

Does it need a separate power supply?

It runs on 12 VDC (±30%) or PoE+ (802.3at), using up to 13.8 W on PoE+. A PoE+ PoE switch can power it over the network cable.

Will it work with a recorder that is not Dahua?

It supports ONVIF Profile S, G, T and M, so it can be added to compatible third-party recorders. Smart Search and AcuPick work together with Dahua back-end devices. See our NVRs.
