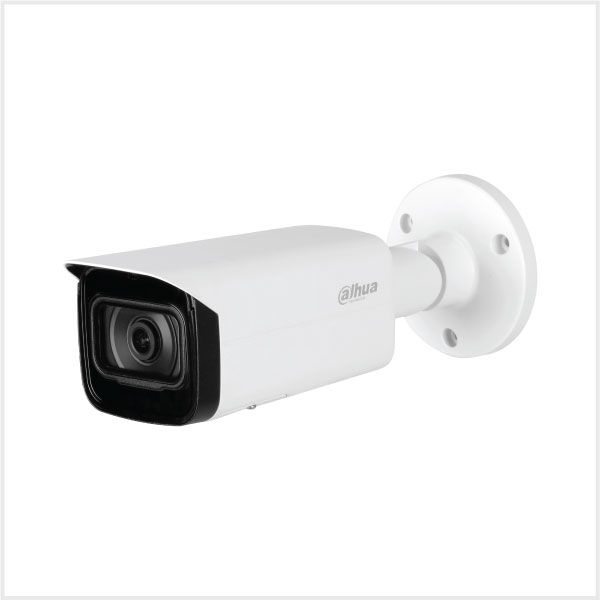

Dahua DH-IPC-HFW2431TP-AS-0360B-S2 - 4MP 2K Lite IR Bullet PoE IP CCTV Camera

Dahua DH-IPC-HFW2431TP-AS-0360B-S2 — 4MP 2K Lite IR Night Vision Bullet PoE IP CCTV Camera

The Dahua DH-IPC-HFW2431TP-AS-0360B-S2 is a 4MP 2K IP CCTV camera in a bullet housing, from Dahua's Lite series, with a fixed 3.6mm lens (the 0360B in the model number). Dahua's datasheet lists the model as DH-IPC-HFW2431T-AS-S2, and the P in this model number is the PAL version. It combines built-in IR night vision up to 80m, Starlight low-light imaging, 120dB WDR and PoE power in an IP67 housing. The IP67 housing is rated for outdoor use from -40 °C to +60 °C, and the 4 built-in infrared LEDs reach up to 80 m for night vision. As a PoE security camera it can be powered over its network cable (802.3af), and as an ONVIF camera it supports Profile S, G and T.

Also listed as IPC-HFW2431TP-AS-0360B-S2. Dahua's regional product pages also write it IPC-HFW2431TP-AS-S2.

Key features

• 4MP image (2688 × 1520, the 2K class) from a 1/3" progressive CMOS sensor at up to 20 fps, or 2560 × 1440 at 25/30 fps.
• IR night vision: 4 built-in IR LEDs reach up to 80 m, with 0.008 lux minimum illumination at F1.6.
• Dahua Starlight technology for colour video in low light (see our guide to Dahua Starlight low-light cameras), and 120 dB wide dynamic range for scenes with strong contrast.
• Smart H.265+ and Smart H.264+ compression with three streams, to save bandwidth and storage.
• IVS intelligent detection: tripwire and intrusion.
• One audio input and one audio output (RCA), one alarm input and one alarm output, and a Micro SD card slot for up to 256 GB.
• IP67 rated, powered by 12V DC or PoE (802.3af) at under 7.7 W.

Technical specification

How far it can see (Dahua DORI figures, 3.6mm lens)

Works with

• Dahua DH-PFA130-E water-proof junction box
• Dahua DH-PFA152-E pole mount bracket
• Dahua DH-EXB660 wall mount bracket
• Excel LR1002-1EC single-port long reach Ethernet over coax extender
• Excel LR1002-1ET single-port long reach Ethernet over coax extender

Common questions

Is this a 2K camera?

It is a 4MP camera that outputs up to 2688 × 1520 at 20 fps, or 2560 × 1440 at 25/30 fps, which is the 2K class.

How far does the IR night vision reach?

Dahua lists an IR illumination distance of 80 m from 4 built-in IR LEDs. Dahua's DORI figures for the 3.6mm lens are above: 80 m to detect a person and 8 m to identify one.

Does it need a separate power supply?

No. It runs on PoE (802.3af) or 12V DC, and uses under 7.7 W.

Does it have a built-in microphone?

Dahua lists one RCA audio input and one RCA audio output, and does not list a built-in microphone.

What does Starlight mean?

Dahua uses Starlight for imaging in low light. Our guide to Dahua Starlight low-light cameras explains it.

Will it work with a recorder that is not Dahua?

It supports ONVIF Profile S, G and T, so it can be added to compatible third-party recorders.

Is it suitable outdoors?

It is IP67 rated and works from -40 °C to +60 °C.

Full manufacturer specification: Dahua DH-IPC-HFW2431T-AS-S2 datasheet
