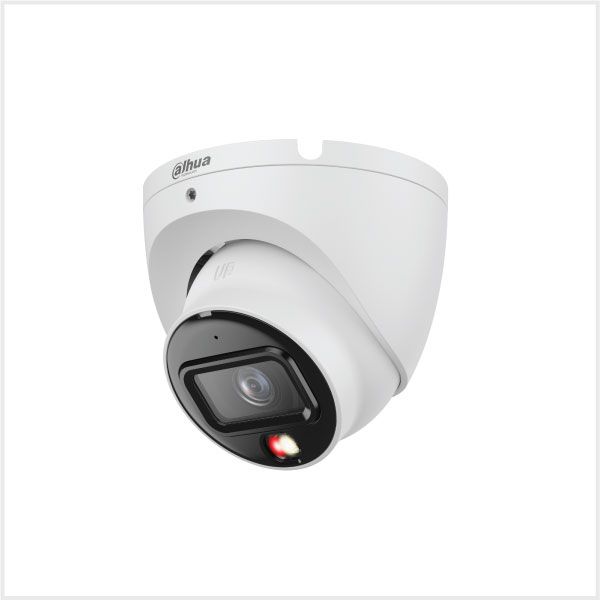

Dahua DH-IPC-HDW1639TP-A-IL-0280B-S6 - 6MP Dual Light Fixed-Lens Turret Network Camera
Product Features
- 1/2.7" CMOS image sensor for low-luminance, high-definition images
- Max. 6MP (3200 × 1800) @20fps, also supports 2688 × 1520 @25/30fps
- H.265 codec for high compression and ultra-low bit rate
- Built-in multi-core light with max. 30m IR distance and max. 30m warm light distance
- ROI and SMART H.264+/H.265+ flexible coding for various bandwidth/storage environments
- DWDR, 3D NR, HLC, BLC and digital watermarking for varied monitoring scenes
- Built-in microphone
- 12 VDC/PoE (802.3af) power supply for easy installation
- IP67-rated housing
- Supports human detection
Dahua DH-IPC-HDW1639TP-A-IL-0280B-S6 — 6MP Dual Light Turret Network Camera
The Dahua DH-IPC-HDW1639TP-A-IL-0280B-S6 is a 6MP turret network camera with a fixed 2.8mm lens and a built-in multi-core dual light (IR and warm light), giving up to 30m of night-time coverage in either mode. It uses a 1/2.7" CMOS sensor with H.265 encoding, has a built-in microphone, is powered over 12VDC or PoE (802.3af), and carries an IP67 rating for outdoor use.
Key specification
| Camera body style | Turret |
|---|---|
| Resolution | 6MP (3200 × 1800 @20fps; 2688 × 1520 @25/30fps) |
| Image sensor | 1/2.7" CMOS |
| Lens | 2.8mm fixed |
| Minimum illumination | 0.007 lux@F1.6 (colour, 30 IRE); 0.0007 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator on) |
| Day/night | Auto (ICR) / Colour / B&W |
| Max IR / warm light range | Up to 30m |
| Power supply | 12 VDC / PoE (802.3af) |
| Power consumption | Basic 2W (12VDC) / 2.9W (PoE); Max 4W (12VDC) / 5.3W (PoE) |
| Ingress protection | IP67 |
| Operating temperature | -40°C to 60°C |
| Dimensions | 85.6mm × Ø94.0mm |
| Colour | White |
| Audio | Built-in microphone |
Frequently asked questions
Does the DH-IPC-HDW1639TP-A-IL-0280B-S6 have a fixed or varifocal lens?
It has a fixed 2.8mm lens, so the field of view is set and there is no zoom adjustment.
Is this camera powered by PoE?
Yes, it can be powered by either a 12VDC supply or PoE (802.3af), so it can run over a single network cable.
Is it suitable for outdoor use?
Yes, it is rated IP67 and has an operating range of -40°C to 60°C.
Browse the full Dahua range, or get in touch with our Contact us team on 01902 902251, or visit our Wolverhampton trade counter for stock and advice.
| Product Code | DH-IPC-HDW1639TP-A-IL-0280B-S6 |
|---|---|
| Manufacturer | Dahua |
| Max Resolution | 6MP |
| Min. Illumination | 0.007 lux@F1.6 (Colour, 30 IRE); 0.0007 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) |
| Lens Type | Fixed |
| Lens Size | 2.8 mm |
| Max. IR Range | Up to 30 m |
| Protection Level, Ingress Protection | IP67 |
| Operating Temperature | -40 to 60°C |
| Power | 12 VDC/PoE (802.3af) |
| Dimensions | 85.6mm x Φ94.0mm |
