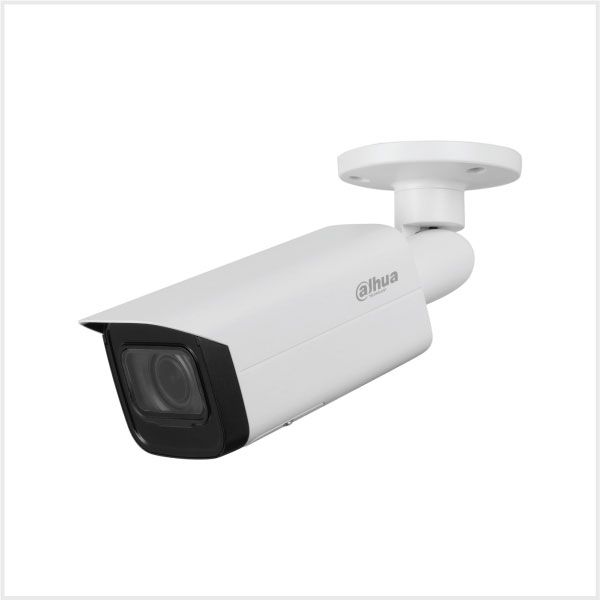

Dahua DH-IPC-HFW2531TP-ZS-S2 - 5MP Lite IR Varifocal Bullet PoE IP CCTV Camera

Dahua DH-IPC-HFW2531TP-ZS-S2 — 5MP Lite IR Night Vision Varifocal Bullet PoE IP CCTV Camera

The Dahua DH-IPC-HFW2531TP-ZS-S2 is a 5MP IP CCTV camera in a bullet housing, from Dahua's Lite series, with a 2.7-13.5mm motorised varifocal lens. Dahua's datasheet lists the model as DH-IPC-HFW2531T-ZS-S2, and the P in this model number is the PAL version. It combines built-in IR night vision up to 60m, Starlight low-light imaging, 120dB WDR and PoE power in an IP67 housing. The IP67 housing is rated for outdoor use from -30 °C to +60 °C, and the 4 built-in IR LEDs reach up to 60 m for night vision. As a PoE security camera it can be powered over its network cable (802.3af), and as an ONVIF camera it supports Profile S, G and T.

Also listed as IPC-HFW2531TP-ZS-S2.

Dahua's datasheet code without the DH- prefix is IPC-HFW2531T-ZS-S2.

Key features

• 5MP image (2592 × 1944) from a 1/2.7" progressive CMOS sensor at up to 20 fps, or 2688 × 1520 at 25/30 fps.
• Motorized vari-focal lens from 2.7 mm to 13.5 mm, giving a horizontal field of view from 100° down to 26°.
• IR night vision: 4 built-in IR LEDs reach up to 60 m, with 0.008 lux minimum illumination at F1.5.
• Dahua Starlight technology for colour video in low light (see our guide to Dahua Starlight low-light cameras), and 120 dB wide dynamic range for scenes with strong contrast.
• Smart H.265+ and Smart H.264+ compression with three streams, to save bandwidth and storage.
• IVS intelligent detection: tripwire and intrusion, and a Micro SD card slot for up to 256 GB.
• IP67 rated, powered by 12V DC or PoE (802.3af) at under 9.9 W.

Technical specification

How far it can see (Dahua DORI figures)

Works with

• Dahua DH-PFA130-E water-proof junction box
• Dahua DH-PFA152-E pole mount bracket
• Dahua DH-EXB660 wall mount bracket
• Excel LR1002-1EC single-port long reach Ethernet over coax extender
• Excel LR1002-1ET single-port long reach Ethernet over coax extender

Common questions

Can the view be adjusted after installation?

Dahua lists a motorized vari-focal lens from 2.7 mm to 13.5 mm, so the view can be set between wide (horizontal 100°) and narrow (horizontal 26°) without changing the lens.

How far does the IR night vision reach?

Dahua lists an IR illumination distance of 60 m from 4 built-in IR LEDs. Dahua's DORI figures are above: 64 m (wide) to 220 m (tele) to detect a person.

Does it need a separate power supply?

No. It runs on PoE (802.3af) or 12V DC, and uses under 9.9 W.

Does it support local storage?

Yes. It takes a Micro SD card up to 256 GB, and Dahua also lists NAS, FTP and SFTP storage.

What does Starlight mean?

Dahua uses Starlight for imaging in low light. Our guide to Dahua Starlight low-light cameras explains it.

Will it work with a recorder that is not Dahua?

It supports ONVIF Profile S, G and T, so it can be added to compatible third-party recorders.

Is it suitable outdoors?

It is IP67 rated and works from -30 °C to +60 °C.

Full manufacturer specification: Dahua datasheet
