Dahua DH-PFA13G - CCTV Junction Box for Security Cameras

Name: Dahua DH-PFA13G - CCTV Junction Box for Security Cameras
Brand: Dahua
SKU: DH-PFA13G
Price: 10.62 GBP
Availability: InStock

£10.62 £8.85

In stock

SKU

DH-PFA13G

Product Features

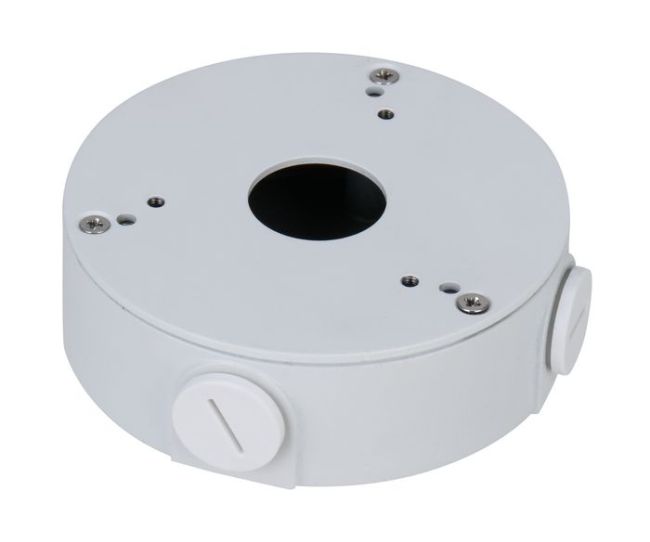

Dahua DH-PFA13G is a CCTV security camera junction box, made of aluminium alloy in white.
Cabling sits inside the box and can be threaded through the bottom or side.
G1/2 pipe thread, 2.0kg load bearing and 0.33kg weight.
Works from -40 to +60 degrees C and comes with screws, expansion bolts, a wrench and a G1/2 plastic waterproof connector.

Product Description

Product Specifications

Dahua DH-PFA13G — CCTV Junction Box for Cameras

The Dahua DH-PFA13G is a CCTV junction box for cameras, made of aluminium alloy and part of Dahua's Camera Mount Series. The cabling sits inside the junction box, and cable can be threaded through the bottom or the side. It is dedicated to particular cameras, and the pack includes a G1/2 plastic waterproof connector.

Also listed as PFA13G.

Key features

Aluminium alloy material, finished in white.
Cabling inside the junction box, with cable threading through the bottom or side.
G1/2" pipe thread and 2.0kg load bearing.
Compact at 111.6 mm x 36.0 mm and 0.33kg in weight.
Operating temperature -40 °C to +60 °C (-40 °F to +140 °F), operating humidity below 90% RH.
Dahua's package list: junction box, three M4 x 10 screws, three ST4 x 25 screws, three plastic expansion bolts, an S3.0 wrench and a G1/2 plastic waterproof connector.

Technical specification

Model	DH-PFA13G (PFA13G)
Product type	Junction Box (Dahua type: Camera Mount)
Series	Camera Mount Series
Material	Aluminum alloy
Dimensions	111.6 mm × 36.0 mm (4.39" × 1.42")
Pipe thread	G1/2"
Weight	0.33 kg (0.73 lb)
Load bearing	2.0 kg (4.4 lb)
Cabling	Inside the junction box; cable threading through bottom or side
Operating temperature	-40 °C to +60 °C (-40 °F to +140 °F)
Operating humidity	Less than 90% RH
Colour	White
Applicable model	Please see "Accessory Selection" (Dahua)
Package contents	Junction box × 1, M4 × 10 screws × 3, ST4 × 25 screws × 3, plastic expansion bolt × 3, S3.0 wrench × 1, G1/2 plastic waterproof connector × 1

Compatibility

Dahua does not list the compatible camera models on the datasheet; it points to its Camera Accessories Selection guide. Dahua describes this junction box as dedicated to particular cameras. This item is supplied as genuine UK-specification stock. If you are not certain it is the right part for your camera, send us the model and we will confirm compatibility before you order.

Related Dahua mounts

Other Dahua mounting accessories we supply:

Common questions

What is the Dahua DH-PFA13G?

It is a CCTV junction box for cameras, made of aluminium alloy, from Dahua's Camera Mount Series, and works as a security camera junction box. The cabling sits inside the box and can be threaded through the bottom or side.

What thread and load rating does it have?

It has a G1/2" pipe thread and a load bearing of 2.0 kg (4.4 lb).

Does it come with a waterproof connector?

Yes. Dahua's package list includes one G1/2 plastic waterproof connector. The datasheet gives no IP rating for the box itself.

What is in the pack?

Dahua's package information lists one junction box, three M4 x 10 screws, three ST4 x 25 screws, three plastic expansion bolts, one S3.0 wrench and one G1/2 plastic waterproof connector.

Which cameras does it fit?

Dahua lists applicable models in its accessory selection guide, not on the datasheet. Tell us your camera model and we will confirm before you order.

Can I collect it?

Yes, from our Wolverhampton trade counter (please call first).

Full manufacturer specification: Dahua product page

Browse the full Dahua range, all CCTV accessories, or contact us on 01902 902251. Trade customers are welcome at our Wolverhampton trade counter.

Download the Dahua DH-PFA13G datasheet (PDF).
