Dahua DH-PFC610-4D: 19" Rack Mount Tray

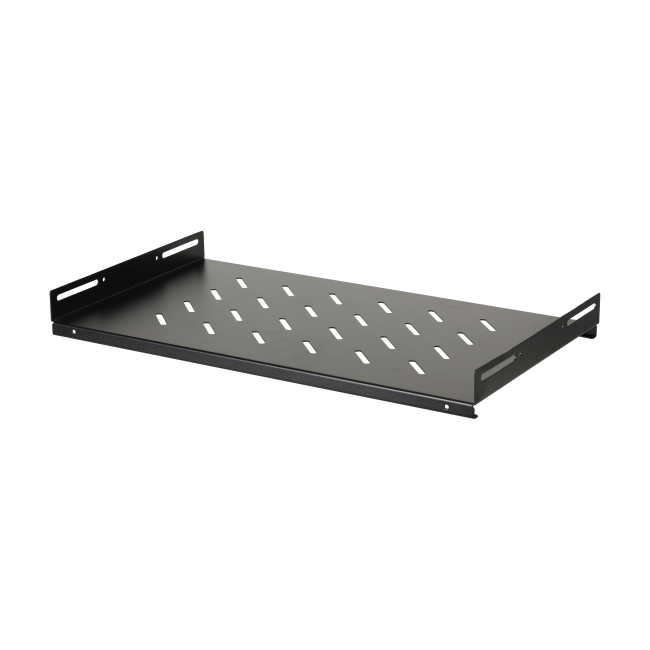

The Dahua PFC610-4D is a 19-inch rack mount tray for Dahua's PFC200D series wall and floor cabinets. Use it to hold recorders, routers, power supplies and other kit that doesn't have its own rack ears. The SPCC steel tray carries up to 40kg.
Who is it for?
Installers fitting out a Dahua PFC200D cabinet (such as the 6U PFC200D-6U4D) for a CCTV or network install.
Key specification
| Type | 19" rack mount tray |
|---|
| Applicable model | DH-PFC200D series cabinets |
|---|
| Material | SPCC steel |
|---|
| Colour | Black |
|---|
| Dimensions (W x D x H) | 489 x 275 x 47.6 mm |
|---|
| Weight | 1.6kg |
|---|
| Load bearing | 40kg |
|---|
| Operating temperature | -40 °C to +60 °C, <90% RH |
|---|
Frequently asked questions
Which cabinets does it fit?
Dahua lists it for the DH-PFC200D series cabinets, for example the PFC200D-6U4D.
How much weight can it hold?
Up to 40kg.
How deep is the tray?
275mm, with an overall width of 489mm and height of 47.6mm.
