Dahua DH-PFS3005-4ET-60-V2 - 5 Port PoE+ Switch for CCTV

Dahua DH-PFS3005-4ET-60-V2 - 5 Port PoE Switch

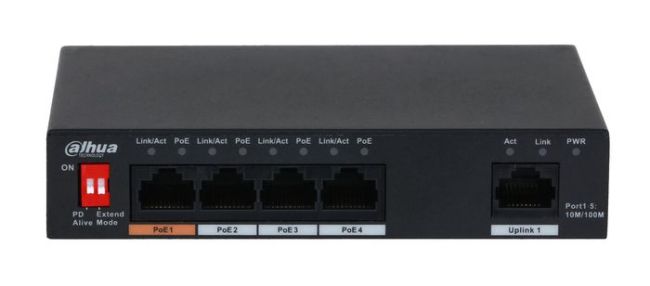

The Dahua DH-PFS3005-4ET-60-V2 is a 5 port PoE switch: an unmanaged desktop Ethernet network switch with four 10/100 Mbps PoE ports and one 10/100 Mbps uplink port. Dahua lists it on its UK site as DH-PFS3005-4ET-60 and states that the datasheet applies to version 2.0. Port 1 supports Hi-PoE up to 60 W and long distance PoE reaches 250 m.

Also listed as PFS3005-4ET-60-V2.

Dahua gives the scenes as home, office, server farm and small mall. Here it suits a small camera install of up to four PoE devices, such as a single room, a small shop or an extension to an existing system. It is a PoE switch for security cameras and, with IEEE802.3at support on its four PoE ports, a PoE+ switch for CCTV.

Key features

• Four 10/100 Mbps RJ-45 PoE ports (ports 1-4) and one 10/100 Mbps RJ-45 uplink port (port 5).
• IEEE802.3af, IEEE802.3at and Hi-PoE: port 1 up to 60 W (the orange Hi-PoE port), ports 2-4 up to 30 W each, 60 W in total.
• 250 m long distance PoE transmission, with two transmission modes (Extend Mode on and Extend Mode off).
• Intelligent PoE power management and a PoE watchdog that restarts a failed port if the IP camera connection is lost.
• 8-pin PoE power supply (pins 1, 2, 4, 5 positive and 3, 6, 7, 8 negative) to reduce cable loss.
• Wall-mount installation with an anti-theft lock hole; works from -10 °C to +55 °C.

Technical specification

Related Dahua switches

• Dahua DH-PFS3110-8ET-96-V2 10 port unmanaged desktop PoE switch with 8 PoE ports
• Dahua DH-PFS3005-5GT-V2 5 port Gigabit unmanaged switch (no PoE)

Common questions

How many PoE cameras can it power?

It has four PoE ports. Port 1 supplies up to 60 W (Hi-PoE), ports 2-4 up to 30 W each, within a 60 W total, so check the combined draw of your cameras.

How far can PoE reach?

Dahua specifies 250 m long distance PoE transmission. In its lab table (53 V supply, Cat5e or Cat6) a port delivering IEEE802.3at 30 W gives the device 25.5 W, at 100 Mbps over 100 m and at 10 Mbps from 150 m to 250 m. Dahua says the figures are for reference only.

Is it a managed switch?

No. Dahua describes it as an unmanaged desktop switch, with 10/100 Mbps ports and a 10/100 Mbps uplink. For Gigabit or managed features, see our network switches.

Can I mount it on a wall?

Yes. Dahua lists wall-mount installation and an anti-theft lock hole. It measures 130 x 85 x 26 mm and weighs 0.30 kg.

What power does the switch need?

A 48 V to 57 V DC power input. Dahua gives idle consumption as 0.8 W and full load as 60 W.
