Dahua DH-PFS3110-8ET-96-V2 - 8 Port PoE+ Switch for CCTV

Dahua DH-PFS3110-8ET-96-V2 - 8 Port PoE Switch

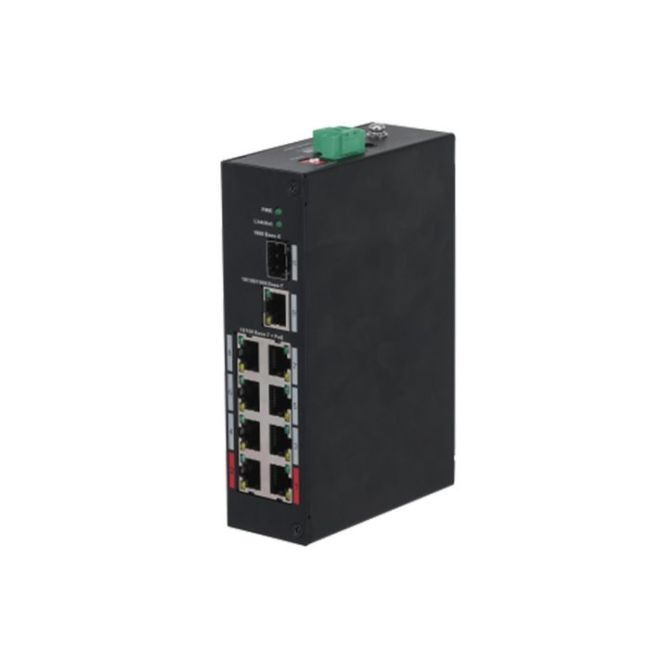

The Dahua DH-PFS3110-8ET-96-V2 is an 8 port PoE switch in a 10 port unmanaged desktop network switch: eight 10/100 Mbps PoE ports, one 10/100/1000 Mbps RJ-45 uplink and one 1000 Mbps SFP uplink. Dahua lists it on its UK site as DH-PFS3110-8ET-96, with its datasheet applying to version 2.0, and describes it as an unmanaged hardened PoE switch. Ports 1-2 supply up to 90 W (IEEE802.3bt), the total PoE budget is 96 W and PoE reaches 250 m in long distance mode.

Also listed as PFS3110-8ET-96-V2.

Dahua gives the scenes as home, office, server farm and small mall. Here it suits camera installs of up to eight PoE devices where a straightforward switch is enough and either copper Gigabit or fibre SFP is needed for the uplink back to the recorder. It is a PoE switch for security cameras and, with IEEE802.3at support, a PoE+ switch for CCTV; ports 1-2 also support IEEE802.3bt.

Key features

• Eight 10/100 Mbps RJ-45 PoE ports (ports 1-8), one 10/100/1000 Mbps RJ-45 uplink (port 9) and one 1000 Mbps SFP uplink (port 10).
• IEEE802.3af, IEEE802.3at, Hi-PoE and IEEE802.3bt: ports 1-2 up to 90 W, ports 3-8 up to 30 W each, 96 W in total.
• 250 m long distance PoE in Extend Mode, with bandwidth reduced to 10 Mbps at that distance.
• Intelligent PoE monitors power in real time and prioritises important ports; the PoE watchdog restarts failed ports if an IP camera connection is lost.
• 8-pin PoE power supply (pins 1, 2, 4, 5 positive and 3, 6, 7, 8 negative) for better IP camera compatibility and less cable loss.
• Works from -30 °C to +65 °C.

Technical specification

Works with

Dahua lists these SFP modules for the SFP uplink port:

• Dahua GSFP-1310R-20-SMF Gigabit SFP module, LC, 20 km, single-mode
• Dahua GSFP-1310T-20-SMF Gigabit SFP module, LC, 20 km, single-mode
• Dahua GSFP-850-MMF Gigabit SFP module, LC, 550 m, multi-mode

Related Dahua switches

• Dahua DH-LR2110-8ET-120-V2 10 port unmanaged ePoE switch
• Dahua DH-PFS3005-4ET-60-V2 5 port unmanaged desktop PoE switch

Common questions

Why is a 10 port switch described as an 8 port PoE switch?

Eight of the ten ports supply PoE (ports 1-8). The other two are uplinks: a 10/100/1000 Mbps RJ-45 port and a 1000 Mbps SFP port.

How much power can each port supply?

Dahua's table gives ports 1-2 up to 90 W, ports 3-8 up to 30 W each and 96 W in total, so check the combined draw of your cameras. Dahua says the red ports support IEEE802.3bt and Hi-PoE.

How far can PoE reach?

Up to 250 m in Extend Mode, with bandwidth reduced to 10 Mbps. In Dahua's lab table (53 V supply, Cat5e or Cat6) a port delivering IEEE802.3at 30 W gives the device 25.5 W, at 100 Mbps over 100 m and at 10 Mbps from 150 m to 250 m. Dahua says the figures are for reference only.

Can I use fibre for the uplink?

Yes. Port 10 is a 1000 Mbps SFP port. Dahua's ordering information lists GSFP-1310T-20-SMF, GSFP-1310R-20-SMF and GSFP-1310-20-SMF (single-mode, 1310 nm, 20 km, LC) and GSFP-850-MMF (multi-mode, 850 nm, 550 m, LC).

Is it a managed switch?

No. Dahua describes it as an unmanaged switch. See our network switches if you need managed features.

What temperature range does it work in?

Dahua gives -30 °C to +65 °C and 5% to 95% humidity.

Browse the full Dahua range, all network switches or contact us on 01902 902251.

Full manufacturer specification: Dahua product page
