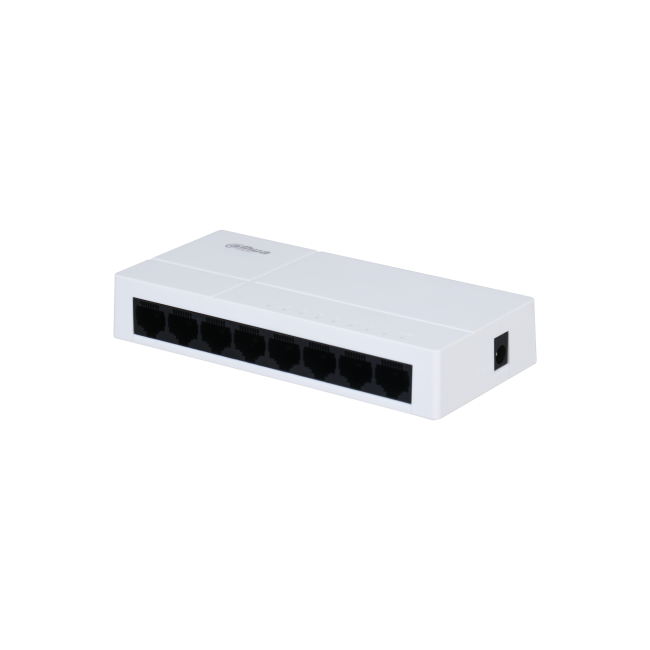

Dahua DH-PFS3008-8GT-L-V2 - 8-Port Unmanaged Gigabit Desktop Switch
Product Features
- 8 x 10/100/1000 Mbps adaptive Gigabit ports
- Unmanaged, plug-and-play - no configuration needed
- 16 Gbit switching capacity, 11.904 Mpps forwarding
- Compact plastic desktop housing, 0.16kg
- 5 VDC, 1A power adapter included
Dahua DH-PFS3008-8GT-L-V2: 8-Port Unmanaged Gigabit Switch
The Dahua PFS3008-8GT-L is a small, light 8-port Gigabit Ethernet switch in a plastic desktop housing. All eight ports run at 10/100/1000 Mbps with automatic speed negotiation, so it is a simple way to add wired ports for recorders, PCs, access points and other network devices. It has no PoE and needs no setup - plug it in and it works.
Who is it for?
Home and small-office networks, CCTV installers who need extra Gigabit ports next to an NVR or router, and anyone after a low-cost, low-power desktop switch.
Key specification
| Ethernet ports | 8 x 10/100/1000 Base-T |
|---|---|
| PoE | No |
| Switching capacity | 16 Gbit |
| Packet forwarding rate | 11.904 Mpps |
| Packet buffer | 1.5 Mbit |
| MAC table | 2K |
| Power supply | 5 VDC, 1A (power adapter included) |
| Power consumption | Idle 0.5W; full load 3.0W |
| Surge / ESD protection | Lightning common mode 2 kV; air discharge 8 kV, contact 4 kV |
| Operating temperature | 0 °C to +45 °C, 5%-95% RH |
| Casing | Plastic, desktop mount |
| Dimensions | 132.9 x 62.4 x 24.0 mm |
| Net weight | 0.16 kg |
| Certifications | CE, FCC |
What you will need
Cat5e or Cat6 patch leads for each device. The power adapter is in the box. If you need to power cameras from the switch, choose a Dahua PoE switch instead.
Frequently asked questions
What is the difference between the 8GT-L and the 8GT-V2?
Both are 8-port unmanaged Gigabit switches. The "L" model has a lighter plastic housing; the DH-PFS3008-8GT-V2 has a metal case.
Does it support PoE?
No. It passes data only and does not power cameras.
Does it need configuring?
No. It is unmanaged and plug-and-play.
Can it be wall mounted?
Dahua lists it as a desktop-mount switch.
Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales. Browse the full Dahua range or contact us on 01902 902251.
| Product Code | DH-PFS3008-8GT-L-V2 |
|---|---|
| Dimensions | 132.9mm x 62.4mm x 24.0mm |
| Manufacturer | Dahua |
| Device Port Speed | 10/100/1000 Mbps |
| Power | 5 VDC, 1 A (external adapter included) |
| Connection Type | Wired |
| Device Ports | 8 |
| Managed | No |
| PoE Ports | 0 |
| Product Type | Network Switch & Wireless |
