Dahua DH-PFWB5-90AC - 5GHz AC867 WiFi Outdoor Wireless Base Station

Name: Dahua DH-PFWB5-90AC - 5GHz AC867 WiFi Outdoor Wireless Base Station
Brand: Dahua
SKU: DH-PFWB5-90AC
Price: 264.18 GBP
Availability: InStock

£264.18 £220.15

In stock

SKU

DH-PFWB5-90AC

Product Features

Dahua DH-PFWB5-90AC is a 5GHz 802.11ac outdoor wireless bridge base station for point to multipoint WiFi links.
Up to 867 Mbps bandwidth, a point to point range of up to 5 km and a 90 degree horizontal and vertical antenna angle.
IP65 housing for wall or pole mounting, working from -30 °C to +70 °C.
One 10/100/1000 Base-T RJ-45 port, with a 24V PoE adapter and pole mount bracket in the box.

Product Description

Product Specifications

Dahua DH-PFWB5-90AC - 5GHz AC867 WiFi Outdoor Wireless Base Station

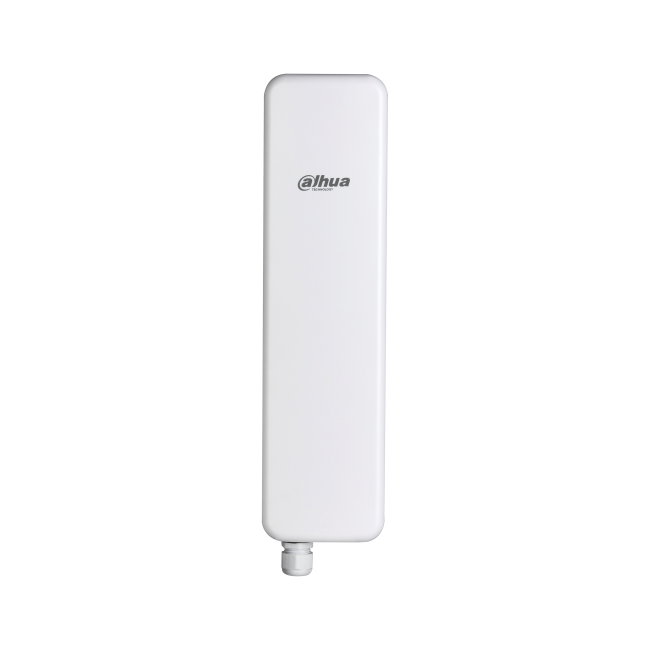

The Dahua DH-PFWB5-90AC is a V-Radio outdoor 11ac 5G wireless bridge built as a base station. An enhanced antenna gives point to point transmission of up to 5 km and bandwidth of up to 867 Mbps, and the antenna angle is 90 degrees horizontal and vertical. Dahua describes the DH-PFWB5 series as point to point and point to multipoint base stations and customer premises equipment, and this unit is the base station version, with AP (WDS) among its operating modes. The IP65 housing handles outdoor weather from -30 °C to +70 °C, and it mounts on a wall or pole.

Also listed as PFWB5-90AC.

Key features

Point to point transmission distance of up to 5 km, with a 90 degree horizontal and 90 degree vertical antenna angle
Bandwidth up to 867 Mbps on 5 GHz 802.11a/n/ac, with 5/10/20/40/80 MHz channel width and 2 x 2 MU-MIMO
TDMA enhancement to stabilise video transmission bandwidth and locate hidden wireless nodes
AP (WDS), WAP (TDMA2/TDMA3) and Station operating modes
IP65 rated housing with built-in lightning-proof circuits, working from -30 °C to +70 °C
Wall mount and pole mount installation, with a 24 V PoE adapter and pole mount bracket in the box

Technical specification

Model	DH-PFWB5-90AC (Dahua datasheet name: DH-PFWB5-90ac)
Description	V-Radio Outdoor 11ac 5G Wireless Bridge (Base Station)
Sold in pairs	No
Wireless standard	5 GHz 802.11a/n/ac
Operating frequency	5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)
Wireless transmission rate	802.11ac at 80 MHz: 866, 780, 650, 585, 520, 390, 260, 195, 130, 65 Mbps
Channel width	5/10/20/40/80 MHz
Max. output power (CE EIRP)	23 dBm at 5150-5250 MHz, 23 dBm at 5250-5350 MHz, 27 dBm at 5470-5725 MHz, 14 dBm at 5725-5850 MHz
Antenna direction angle	Horizontal 90°, vertical 90°
Transmission distance	5 km
Ethernet port	1 x RJ-45 10/100/1000 Base-T
PoE	PoE in 24 V/0.5 A, PoE out not available
Operating modes	AP (WDS), WAP (TDMA2), WAP (TDMA3), Station (WDS/TDMA2/TDMA3), Station (ARPNAT)
MU-MIMO	2 x 2
Security	WPA/WPA2-Personal, WPA/WPA2-Enterprise, ACL, user isolation
Software	WEB management and update, DHCP server, SNMP server, NTP client, router advertisement daemon, ping watchdog
Power supply	100 - 240 VAC (24 V PoE power adapter supplied)
Power consumption	Full load: 10 W
Operating temperature	-30 °C to +70 °C
Operating humidity	0%-90% RH, non-condensing
Protection	IP65
Dimensions	380 mm x 100 mm x 35 mm
Net weight	0.46 kg
Certifications	CE, FCC
In the box	Device, 2 dowel pins, pole mount bracket, power cord, 24 V PoE power adapter, quick start guide

Works with

Dahua lists this base station as not sold in pairs, so any remote unit is bought separately. Related units we list from the same series:

DH-PFWB5-30AC 5GHz AC867 outdoor wireless bridge CPE
DH-PFWB5-10AC 5GHz AC867 outdoor wireless bridge from the same series

Common questions

Is this sold as a pair?

No. Dahua lists it as not sold in pairs. It is one base station, so add a unit for each remote point.

How much bandwidth does it give?

Dahua quotes up to 867 Mbps, with a top 802.11ac rate of 866 Mbps on an 80 MHz channel.

What is the difference between the 90AC and the 90N?

The DH-PFWB5-90AC is the 802.11ac version with up to 867 Mbps. We also list the DH-PFWB5-90N, which is the N300 version with up to 300 Mbps.

How is it powered?

Through the supplied 24 V PoE power adapter (PoE in 24 V/0.5 A, 100 - 240 VAC mains). Dahua gives 10 W power consumption at full load.

Is there an optional mounting accessory?

Dahua lists the PFA15A as an optional accessory for fixing wireless devices. Ask us if you need one.
