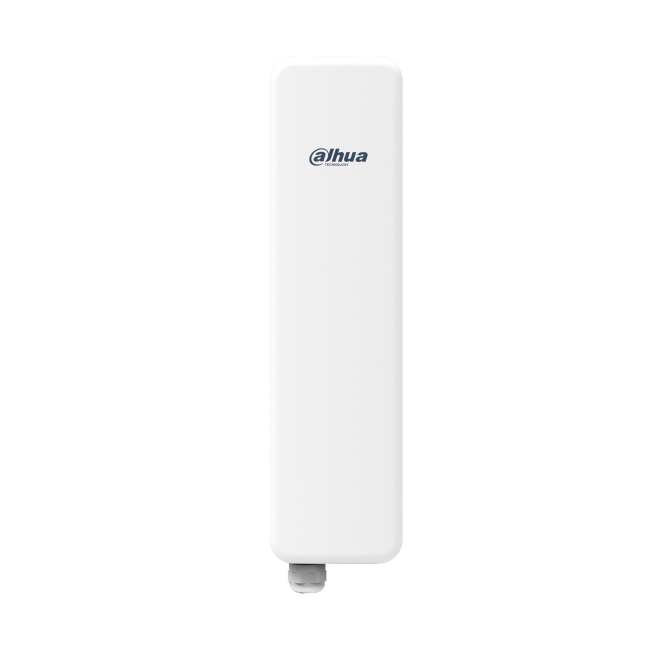

Dahua DH-PFWB5-90N - 5GHz N300 Outdoor WiFi Bridge and Wireless Base Station

£193.97 £161.64

In stock

SKU

DH-PFWB5-90N

Product Features

Dahua DH-PFWB5-90N is a 5GHz N300 outdoor wireless bridge base station for CCTV and network links.
Outdoor WiFi bridge with up to 5km point to point range and up to 300Mbps on 5GHz 802.11a/n.
Antenna direction angle of 90 degrees horizontal and vertical, with 2x2 MIMO.
One 10/100/1000 RJ-45 port with 24V PoE input.
Works from -30C to +70C, with wall or pole mounting.

Product Description

Product Specifications

Dahua DH-PFWB5-90N - 5GHz N300 Outdoor Wireless Base Station

The Dahua DH-PFWB5-90N is the base station in Dahua's V-Radio 5GHz N300 range. Its 90 degree horizontal and vertical antenna angle covers a wide area, so it sits at the central end of a wireless link, for example to bring cameras on a yard, farm or car park back to the main network.

It runs on 5GHz 802.11a/n at up to 300Mbps with 2x2 MU-MIMO, and Dahua quotes up to 5km point to point. Operating modes include AP (WDS), TDMA based WAP modes and several station modes.

It has one gigabit RJ-45 port and is powered by the 24V PoE adapter in the box, which also includes a pole mount bracket. It works from -30 to +70 degrees C and uses 4.5W at full load. It is sold singly, so a link needs a compatible unit at the far end.

Also listed as PFWB5-90N.

Key features

5 GHz IEEE 802.11a/n, 5.150 to 5.850 GHz, 2x2 MIMO, up to 300Mbps wireless transmission rate
Point to point transmission distance up to 5 km (5000 m) with an enhanced antenna
Antenna direction angle 90 degrees horizontal and 90 degrees vertical
TDMA to stabilise video transmission bandwidth and to locate hidden nodes
Wide operating temperature of -30 °C to +70 °C with built-in lightning-proof circuits
Wall mount and pole mount installation; a pole mount bracket and 24V PoE power adapter are listed in the package
Minimal WEB interface; operating modes AP (WDS), WAP (TDMA2, TDMA3), Station (WDS, TDMA2, TDMA6) and Station (ARPNAT)
One 10/100/1000 Base-T RJ-45 port, with 24V PoE input

Technical specification

Model	DH-PFWB5-90N (Dahua datasheet and page: DH-PFWB5-90n)
Type	V-Radio outdoor 11n 5G wireless bridge (base station); not sold in pairs
Wireless standard	5 GHz: 802.11a/n
Operating frequency	5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)
Wireless transmission rate	802.11n: 300, 270, 240, 180, 120, 90, 60, 30 Mbps; 802.11a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
Channel width	5/10/20/40 MHz
Max. output power (CE EIRP)	23 dBm at 5150-5250 MHz; 23 dBm at 5250-5350 MHz; 27 dBm at 5470-5725 MHz; 14 dBm at 5725-5850 MHz
MIMO	2 x 2
Antenna direction angle	Horizontal 90°, vertical 90°
Transmission distance	5000 m
Operating modes	AP (WDS)/WAP (TDMA2)/WAP (TDMA3)/Station (WDS/TDMA2/TDMA6)/Station (ARPNAT)
Security	WPA/WPA2-Personal; WPA/WPA2-Enterprise; ACL; user isolation
Software	WEB; DHCP server; SNMP server; NTP client; router advertisement daemon; ping watchdog; web update
Ethernet port	1 x RJ-45 10/100/1000 Base-T
PoE	PoE in 24V/0.5A; PoE out: none
Power supply	100 - 240 VAC (24V PoE power adapter listed in the package)
Power consumption	Full load 4.5 W
Indicator lights	1 x PWR; 1 x LAN; 4 x RSSI LEDs
Operating temperature and humidity	-30 °C to +70 °C; 5% to 95% RH, non-condensing
Weather protection	Dahua gives IP65 in the product overview and IP66 in the specification table
Dimensions and weight	111 x 100 x 37 mm; 0.5 kg net
Installation	Bracket mount (wall or pole)
Certifications	CE; FCC
Package (per Dahua datasheet)	1 device; 2 dowel pins; 1 pole mount bracket; 1 power cord; 1 24V PoE power adapter; 1 quick start guide

Related products

Dahua V-Radio 5GHz units: the DH-PFWB5-30N N300 CPE, the DH-PFWB5-90AC AC867 base station, the DH-PFWB5-30AC and the DH-PFWB5-10AC. Dahua lists the PFA15A as an optional mounting accessory.

Works well with

Dahua DH-CS4010-8ET2GT-110 PoE Switch: a Dahua PoE switch for powering cameras at the remote end, as the bridge has no PoE output
Dahua DH-IPC-HFW2849TLP-S-T-PV-0280 8MP Bullet Camera: an outdoor 802.3af PoE camera for a remote point on the link

Pairings are suggested on general compatibility (same brand, matching connection type and specification), not as tested combinations.

Common questions

Is the DH-PFWB5-90N sold as a pair?

No. Dahua lists it as not sold in pairs. This model is the base station version. Dahua describes the PFWB5 series as point to point and point to multipoint base stations and customer premises equipment (CPE).

How far can it transmit?

Dahua quotes a point to point transmission distance of up to 5 km (5000 m).

What is the difference between the 90N and the 90AC?

The DH-PFWB5-90N is 802.11n at up to 300Mbps. Our DH-PFWB5-90AC is the AC867 version.

How is it powered?

It takes a 24V PoE input at 0.5A, and Dahua lists a 24V PoE power adapter in the package, fed from 100 - 240 VAC.

What is it suitable for?

Dahua says the series suits internet access, video surveillance and use in rural areas.

Can it be fitted outdoors all year?

It is an outdoor unit rated for -30 °C to +70 °C, with wall or pole mounting. Dahua quotes IP65 in its overview and IP66 in its specification table.

What type of device is it?

It is an outdoor WiFi bridge in the base station version, working on 5GHz 802.11a/n for point to point links of up to 5 km. Dahua describes the PFWB5 series as point to point and point to multipoint base stations and CPE.

Which operating modes does it support?

AP (WDS), WAP (TDMA2 and TDMA3), Station (WDS, TDMA2 and TDMA6) and Station (ARPNAT).

Is the wireless link encrypted?

Dahua lists WPA/WPA2-Personal and WPA/WPA2-Enterprise security, plus ACL and user isolation.

How is it mounted?

On a bracket. Dahua's packing list includes a pole mount bracket and two dowel pins.
