Dahua DH-VCS-SH30 15W IP67 outdoor waterproof wall and pole mount IP speaker

Skip to the beginning of the images gallery

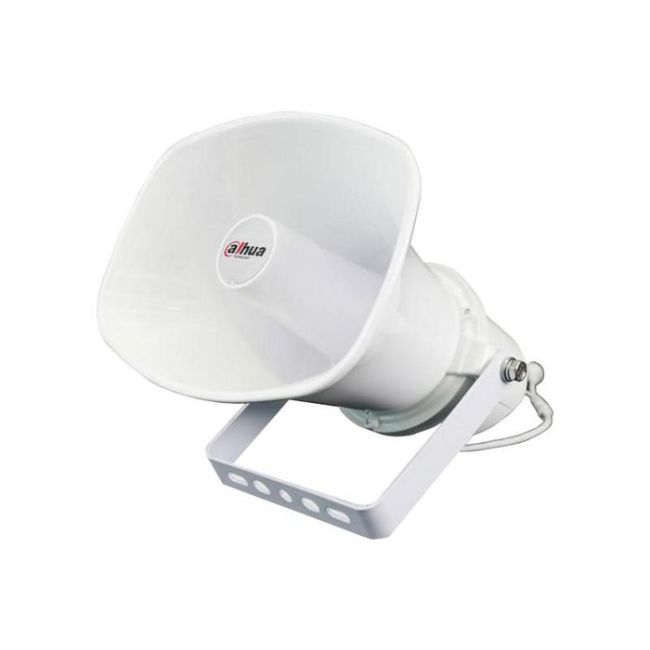

Dahua DH-VCS-SH30 - 15W IP67 Wall and Pole Mount IP Speaker

Name: Dahua DH-VCS-SH30 - 15W IP67 Wall and Pole Mount IP Speaker
Brand: Dahua
SKU: DH-VCS-SH30
Price: 365.4 GBP
Availability: InStock

£365.40 £304.50

In stock

SKU

DH-VCS-SH30

Product Features

Dahua DH-VCS-SH30 is a 15W outdoor waterproof wall mount IP speaker for audio-video monitoring sites.
IP67 and IK10 aviation aluminium housing for wall or pole mount, with a network audio decoding chip and horn speaker.
SIP and ONVIF support with SIP-based intercom, 512 MB storage with TF card expansion and a built-in microphone.
Powered by PoE+ (IEEE 802.3at Class 4) or 24 VDC.

Product Description

Product Specifications

Dahua DH-VCS-SH30 - 15W IP67 Outdoor Waterproof IP Speaker

The Dahua DH-VCS-SH30 is a 15W network IP speaker in an aviation aluminium housing rated IP67 and IK10, for outdoor use at car parks, compound perimeters, schools and similar locations that need audio-video synchronised monitoring. It features voice talk, broadcast audio and stored audio files, supports SIP and ONVIF, and is powered by PoE+. Dahua's datasheet lists the model as DHI-VCS-SH30.

Also listed as VCS-SH30.

Key features

Voice talk, broadcast audio and stored audio files, managed on its web page or in batches on a platform.
SIP and ONVIF support, including device registration and intercom based on each protocol.
Built-in network audio decoding chip, high fidelity digital operational amplifier and horn speaker (15 W output).
Aviation aluminium housing, IP67 and IK10, resistant to corrosion and designed for a range of outdoor climates.
Cone-shaped corners make it easy to control the direction of audio broadcasts; wall mount and pole mount installation.
512 MB storage with custom audio uploads and TF card expansion (the back cover must be open).
PoE+ power for convenient on-site installation, remote management over the network and a one-click reset button.

Technical specification

Model	DH-VCS-SH30 (Dahua datasheet model: DHI-VCS-SH30)
Speaker output	15 W; built-in 15 W and 8Ω amplifier
Speaker frequency response	250 Hz-16 kHz
Max. sound pressure level	108 dB
SNR	75 dB
Coverage pattern	H: 70°; V: 100°
Microphone	Built-in microphone (one microphone switch)
Microphone pickup distance	3 m
Microphone frequency response / input	50 Hz-12 kHz; MIC input 15 mV
Network port	1 RJ45 port
Network protocol	TCP, UDP, ARP, ICMP, IGMP, DHCP, HTTP, SIP, ONVIF
Audio protocol	MP3, G.711a/u
Storage	512 MB and TF card
TF card interface	Supports TF card storage
Power input	24 VDC, 1 A, 24 W; PoE: IEEE 802.3at, Class 4
Power consumption	15 W
Operating temperature	-40 °C to +60 °C (-40 °F to +140 °F)
Operating humidity	60%-95% (RH), non-condensing
Protection level	IP67, IK10
Certifications	CE EMC, CE LVD
Product dimensions	228 mm x 170 mm x 250 mm (8.98" x 6.69" x 9.84") (L x W x H)
Weight	Net 1.8 kg (3.97 lb); gross 2.5 kg (5.51 lb)

Other Dahua audio products in our range: Dahua DH-HAP100 microphone and Dahua DH-HAP120 microphone.

Common questions

Can the Dahua DH-VCS-SH30 be used outdoors?

Yes. It is rated IP67 and IK10, works from -40 °C to +60 °C and its aviation aluminium housing is resistant to corrosion and designed to endure a range of outdoor climates. Dahua notes it is not suitable for environments with high corrosion resistance requirements, such as seaside locations, ports, chemical plants and thermal power plants.

How is it powered?

By PoE+ (IEEE 802.3at, Class 4) or by 24 VDC at 1 A (24 W). Power consumption is 15 W.

Can I upload my own announcements?

Yes. It supports uploading custom audio to its 512 MB storage and using TF cards for expansion; the back cover must be open to fit the card.

Does it support SIP and ONVIF?

Yes. It supports device registration and intercom based on the ONVIF protocol, and the standard SIP protocol with SIP-based intercom.

Does it have a microphone?

Yes. It has a built-in microphone with a pickup distance of 3 m for voice talk.

Full manufacturer specification: Dahua product page

Browse the full Dahua range, contact us on 01902 902251, or see our Wolverhampton trade counter page.

Download the Dahua DHI-VCS-SH30 datasheet (PDF).
