Dahua DHI-ART-ARC3000H-03-GW2(868) - AirShield Wireless Home Alarm System Kit
Product Features
- Dahua DHI-ART-ARC3000H-03-GW2(868) AirShield wireless home alarm system kit with hub, PIR detector, door detector and keyfob.
- Intruder alarm system for villas, shops and apartments, with up to 150 wireless peripherals.
- Hub connects by Ethernet, Wi-Fi or dual SIM cellular, with SMS and phone call alerts.
- 868MHz two-way AES128 wireless, up to 2,000m for the hub, 12 hours of battery standby.
Dahua DHI-ART-ARC3000H-03-GW2(868) — AirShield Wireless Alarm System Kit
The Dahua DHI-ART-ARC3000H-03-GW2(868) is an AirShield wireless alarm system kit. Dahua lists an alarm hub, a wireless keyfob, a wireless door detector and a wireless PIR detector. The hub connects by Ethernet, Wi-Fi or cellular (dual SIM, one active at a time), supports 150 wireless peripherals (6 sirens and 64 keyfobs) and can alert by SMS and phone call to up to 5 numbers. Everything talks over two-way 868MHz wireless with AES128 encryption and frequency hopping. Dahua says you receive notifications and manage the system from the DMSS app (end users) or DoLynk Care (installers), and that it is mainly applied in villas, shops and apartments.
Also listed as ART-ARC3000H-03-GW2(868).
Key features
- Supports 150 wireless peripherals (6 sirens, 64 wireless keyfobs).
- Peripherals status display: signal strength, battery level, temperature and program version.
- Wired, Wi-Fi or cellular network connection; dual SIM with automatic switching (single standby).
- Automatic network replenishment (ANR) with an offline cache of up to 50 entries.
- Video linkage on the app, and SOS emergency alarm.
- SMS and phone call alerts to up to 5 phone numbers.
- Frequency hopping and two-way communication keep the wireless link stable; cloud update with automatic recovery from update failure.
Technical specification
| Model | DHI-ART-ARC3000H-03-GW2(868) |
|---|---|
| Kit contents (Dahua ordering information) | Alarm hub (2G, supplied with a UK plug power adapter), wireless keyfob, wireless door detector, wireless PIR detector |
| Hub wireless capacity | 150-channel wireless peripherals (6 sirens, 64 wireless keyfobs) |
| Hub network mode | Ethernet, Wi-Fi and cellular network (dual SIM supported, only one card enabled at a time) |
| Hub Ethernet port | 1 × RJ-45 10 M/100 M Ethernet port |
| Hub Wi-Fi | IEEE 802.11b/g/n, 2400-2483.5 MHz |
| Hub cellular | GSM 1,800/900 MHz |
| Alerts | SMS and phone call (up to 5 phone numbers each); app notifications |
| Arm and disarm | App; keyfob; schedule |
| Hub power supply | 12 V DC, 1.5 A (UK plug power adapter supplied) |
| Hub backup battery | Built-in lithium battery; standby for 12 hours |
| Hub offline cache | Max. 50 entries (ANR) |
| Wireless carrier frequency | 868.0 MHz-868.6 MHz (all devices) |
| Communication mechanism | Two-way |
| Encryption mode | AES128 |
| Frequency hopping | Yes |
| Communication distance (open space) | Hub up to 2,000 m; PIR detector up to 1,600 m; door detector up to 1,200 m; keyfob up to 900 m |
| PIR detection range | 12 m (90°) with installation height of 2.2 m |
| Battery life | Keyfob 5 years (CR2032); door detector 5 years (CR123A); PIR detector 4 years (CR123A) |
| Operating temperature | Hub -10 °C to +50 °C; keyfob, door detector and PIR detector -10 °C to +55 °C (indoor) |
| Operating humidity | 10%-90% (RH) |
| Hub dimensions | 163.0 mm × 163.0 mm × 32.0 mm |
| Hub installation | Wall mount; desktop |
| Certifications | CE (all devices) |
Works with
Also in our range: the Dahua DHI-ART-ARC3800H-03-W2(868) AirShield alarm kit.
Common questions
What is in the kit?

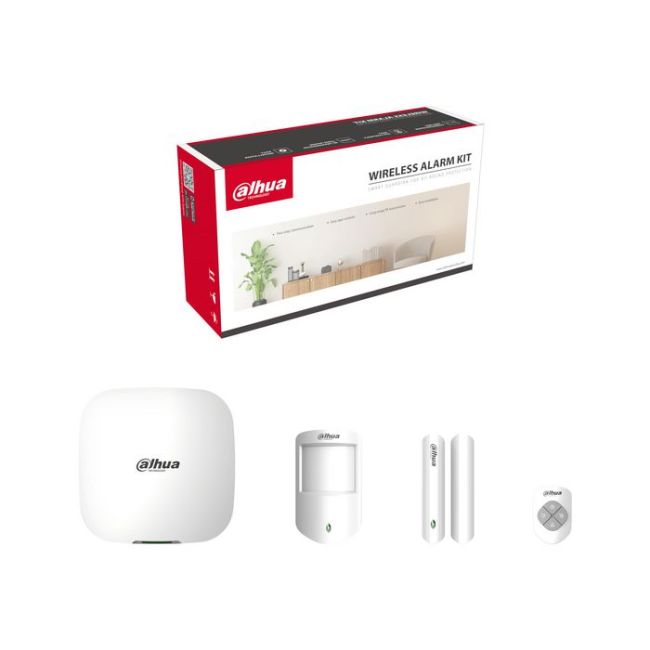

Dahua's ordering information lists an alarm hub, a wireless keyfob, a wireless door detector and a wireless PIR detector.
Which power adapter does the hub use?
The hub runs on 12 V DC, 1.5 A, and the kits we supply come with a UK plug power adapter.
Does it need broadband?
The hub connects by Ethernet, Wi-Fi or cellular (dual SIM, only one card enabled at a time), so a SIM can be used instead of a wired or Wi-Fi connection. Dahua's ordering information describes this hub as 2G, with cellular on GSM 1,800/900 MHz.
How many devices can I add?
The hub supports 150 wireless peripherals in total, including up to 6 sirens and 64 wireless keyfobs.
How far does the wireless reach?
Dahua quotes, in open space: hub up to 2,000 m, PIR detector up to 1,600 m, door detector up to 1,200 m and keyfob up to 900 m.
What happens if the power goes out?
The hub has a built-in lithium battery that keeps it on standby for 12 hours. Low battery alarm is supported on all devices, and tamper alarm on the hub, door detector and PIR detector.
How will I be alerted?
The hub supports SMS and phone call alerts to up to 5 numbers, and you can receive notifications in the DMSS app (for end users) or DoLynk Care (for installers).
What can I use it for?
Dahua says the kit is mainly applied in villas, shops and apartments. With its PIR detector and door detector it also works as a burglar alarm system or intruder alarm system, and you can arm and disarm it from the app, the keyfob or a schedule.
Full manufacturer specification: Dahua product page
Supplied by Zenith Security Co, Wolverhampton. We deliver to England, Scotland and Wales, or you can collect from our Wolverhampton trade counter (please call first).
Browse the full Dahua range, the Intruder alarms category, or contact us on 01902 902251 or visit our Wolverhampton trade counter for advice.
Browse the range: Dahua AirShield alarms · Dahua cameras.
| Product Code | DHI-ART-ARC3000H-03-GW2(868) |
|---|---|
| Brand | Dahua |
| Product Type | Intruder Alarm Kit |
