Dahua DHI-ART-ARC3800H-03-W2(868) wireless home alarm system kit with hub, PIR motion detector and door sensor

Skip to the beginning of the images gallery

Dahua DHI-ART-ARC3800H-03-W2(868) - AirShield Wireless Home Alarm System Kit

Name: Dahua DHI-ART-ARC3800H-03-W2(868) - AirShield Wireless Home Alarm System Kit
Brand: Dahua
SKU: DHI-ART-ARC3800H-03-W2(868)
Price: 198.73 GBP
Availability: InStock

£198.73 £165.61

In stock

SKU

DHI-ART-ARC3800H-03-W2(868)

Product Features

Dahua DHI-ART-ARC3800H-03-W2(868) AirShield wireless alarm system kit with a hub, PIR motion detector, door sensor and keyfob.
The hub is the alarm panel: Ethernet and Wi-Fi, EN 50131 Security Grade 2 and a built-in 4,750 mAh battery.
Video verification from 8 IP cameras, up to 150 wireless peripherals, 868MHz two-way AES128 and frequency hopping.

Product Description

Product Specifications

Dahua DHI-ART-ARC3800H-03-W2(868) — AirShield Wireless Alarm System Starter Kit

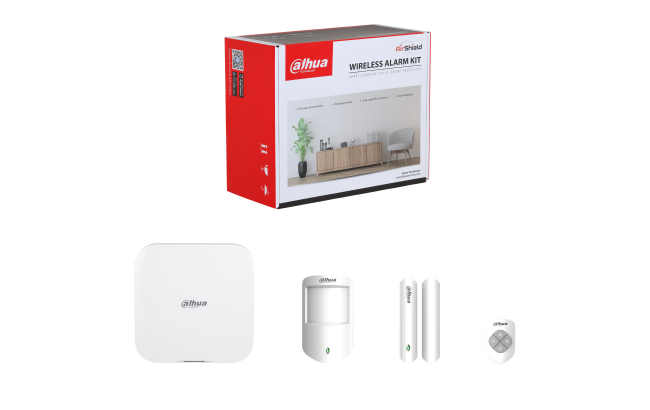

The Dahua DHI-ART-ARC3800H-03-W2(868) is an AirShield wireless alarm system starter kit. Dahua says the kit contains all the products required for a basic wireless alarm system, and its datasheet specifies a hub (the alarm panel), a PIR motion detector, a door detector (door sensor) and a keyfob. The hub connects by Ethernet and Wi-Fi with network redundancy, and every device uses two-way 868MHz communication with AES128 encryption and frequency hopping. Dahua suggests it for villas, shops and apartments.

Also listed as ART-ARC3800H-03-W2(868).

Key features

Hub with Ethernet (RJ-45, 10/100 Mbps) and Wi-Fi 2.4 GHz, with multi-network redundancy for a stable connection.
Alarm video verification: the hub supports 8 IP cameras (alarm video upload only) integrated with the hub.
Voice call alarm; wired and AP network configuration methods make it easier to add the hub to the app.
Up to 150 wireless peripherals on the hub, including 64 keyfobs, 8 keypads and 4 repeaters.
Arm and disarm by app, keypad, remote control, card or scheduled arming and disarming.
868MHz two-way communication, AES128 encryption and frequency hopping on all devices.
Hub: EN 50131 Security Grade 2, Environmental Class II; built-in 4,750 mAh rechargeable battery.
Cloud update for the hub and the wireless devices, with a dual backup system and automatic recovery if an update fails.

Technical specification

Model	DHI-ART-ARC3800H-03-W2(868) (Dahua Wireless Alarm KIT)
Kit devices (per Dahua datasheet)	Hub, PIR detector, door detector, keyfob
Hub wireless zone	150 channels of wireless peripherals (64 PIR cameras (only 8 indoor PIR cameras), 64 keyfobs, 8 keypads and 4 repeaters)
Hub network	Ethernet and Wi-Fi; 1 RJ-45 10 Mbps/100 Mbps port; IEEE 802.11b/g/n, 2400-2483.5 MHz
Hub video input	8-ch IPC, which only supports the upload of alarm videos
Arm and disarm	App, keypad, remote control, card, scheduled arming and disarming
User management	33 app users (31 general users, 1 admin user and 1 installer) and 32 keypad users
Logs	Up to 5,000 entries
Alarm receiving protocol	SIA, SoftGuard
Hub power supply	100-240 VAC, 50/60 Hz
Hub storage battery	One built-in 4,750 mAh rechargeable lithium battery; up to 12 hours when fully charged, under Dahua's stated test conditions
PIR detector	Dual-element low-noise PIR sensor; 12 m (90°) at 2.2 m installation height; 3 sensitivity levels; pet immunity ≤ 18 kg; CR123A battery, 4 years
Door detector	Reed switch; movement distance under 40 mm; for non-metal doors; CR123A battery, 4 years
Keyfob	4 buttons (Home, Away, Disarm, SOS); CR2032 battery, 3 years
Carrier frequency	868.0 MHz-868.6 MHz (all devices); transmitter power limit 25 mW
Communication distance (open space)	Hub up to 2,000 m; PIR detector up to 1,600 m; door detector up to 1,200 m; keyfob up to 900 m
Encryption / hopping	AES128 / frequency hopping (all devices)
Hub dimensions	174.8 mm × 174.8 mm × 38.3 mm (L × W × H); net weight 510 g
Installation	Hub: wall mount or desktop; PIR detector: wall mount; door detector: bracket mount
Operating temperature	-10 °C to +55 °C (+14 °F to +131 °F) (indoor)
Certifications (hub)	CE; EN 50131 Security Grade 2; Environmental Class II; ATS category SP2/DP2
Kit gross weight / packaging	1.46 kg (3.22 lb); 270 mm × 218 mm × 122 mm

Datasheet: Dahua ART-ARC3800H-03-W2(868) datasheet (PDF)

Works with

Add-ons we stock:

Our other AirShield kit is the Dahua DHI-ART-ARC3000H-03-GW2(868), with Wi-Fi and cellular on the hub.

Common questions

Does the hub have 4G?

Dahua lists the hub's network mode as Ethernet and Wi-Fi only. For a hub with 4G, see the DHI-ARC3800H-FW2(868) 4G wireless alarm hub.

Can I add more detectors later?

Yes. The hub supports 150 channels of wireless peripherals, including 64 keyfobs, 8 keypads and 4 repeaters.

Will pets set off the PIR detector?

The PIR detector has pet immunity for animals up to 18 kg.

What happens in a power cut?

The hub has a built-in 4,750 mAh rechargeable battery. Dahua says it lasts up to 12 hours when fully charged, connected to Wi-Fi and 8 peripherals and the cloud, with a 1,800 second heartbeat.

Can I connect cameras?

The hub has an 8-channel IPC input for alarm video verification. Dahua says it only supports the upload of alarm videos.

How do I arm and disarm it?

By app, keypad, remote control, card or a schedule. The keyfob has Home, Away, Disarm and SOS buttons.

Does it meet an alarm standard?

Dahua lists the hub as EN 50131 Security Grade 2, Environmental Class II, with ATS category SP2/DP2.

Full manufacturer specification: Dahua product page
