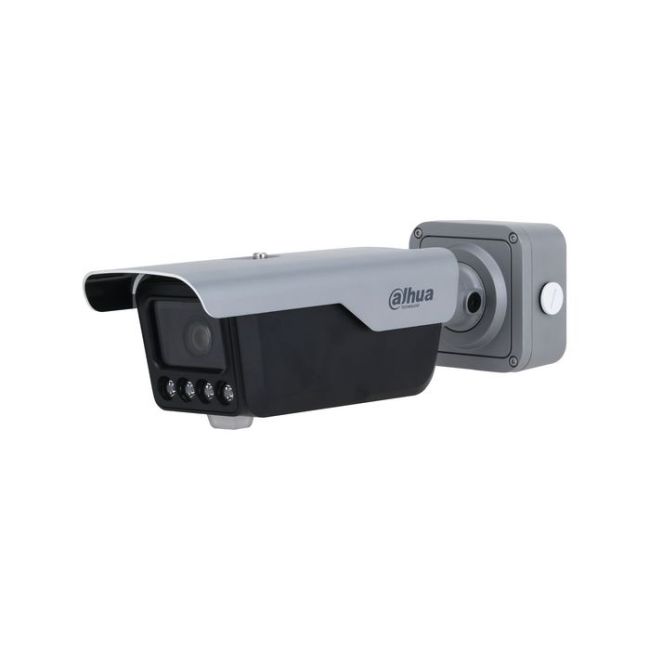

Dahua DHI-ITC413-PW4D-IZ1 4MP 2K Short Range ANPR IP CCTV Camera, Number Plate Recognition, Waterproof

Skip to the beginning of the images gallery

Dahua DHI-ITC413-PW4D-IZ1 - 4MP 2K Short Range ANPR IP CCTV Camera

£699.52 £582.93

In stock

SKU

DHI-ITC413-PW4D-IZ1

Product Features

Dahua DHI-ITC413-PW4D-IZ1 is a 4MP 2K short range ANPR IP CCTV camera for number plate recognition at entry and exit points.
IP67 waterproof and IK10 rated, with deep learning that recognises vehicles, number plates, vehicle brands and colours.
2.7mm-12mm motorised lens, 850nm IR, relay outputs, RS-485 and Wiegand for barrier control.
Built-in microphone, ONVIF and PoE (802.3at) or 12 VDC power.
Colour: white · Horizontal field of view: 92°-46.1° (2.7-12 mm lens)

Product Description

Product Specifications

Dahua DHI-ITC413-PW4D-IZ1 — 4MP 2K Short Range ANPR CCTV Camera

The DHI-ITC413-PW4D-IZ1 is a 4MP number plate recognition (ANPR) camera built for short approaches: barrier lanes, gated entrances and site access roads where vehicles slow down before the gate. Dahua rates it for a capture distance of 3 m to 8 m, a detected lane width of 3 m to 4 m and vehicles up to 80 km/h, with a 2.7-12 mm motorised lens to frame the plate.

Plate reading happens on the camera itself, so it can open a barrier without a separate ANPR server. It holds an allowlist and a blocklist of 110,000 plates each, and switches a barrier or gate controller through its two relay outputs or Wiegand. It also recognises vehicle make (147 logos), 12 colours and 10 vehicle types, which helps when you search footage for a car whose plate was missed.

Four 850 nm IR illuminators give 10 m of illumination for ANPR at night (30 m for general video). The camera, bracket and junction box come as one IP67, IK10 unit, powered by PoE+ (802.3at, 20 W max) or 12 VDC, with a built-in microphone and 2 W speaker for audio deterrence.

Also listed as ITC413-PW4D-IZ1.

Key features

4MP: 1/1.8" CMOS, 2688 × 1520.
Deep learning ANPR: recognises vehicle type, number plate, vehicle brand (147 logos) and vehicle colour (12 colours).
Short range: capture distance 3m-8m, detected width 3m-4m, maximum detection speed 80 km/h.
2.7mm-12mm motorised vari-focal lens at F1.4 with DC iris and auto, area or manual focus.
4 IR (850nm) illuminators: 10m for ANPR and 30m for video monitoring.
Barrier control: 2 relay outputs, 2 alarm inputs, RS-485 and Wiegand, with allowlist and blocklist of 110,000 plates each.
Intrusion and loitering detection (up to 4 areas) with a red and blue light and sound alarm, and custom audio, for active deterrence.
Camera with built-in microphone and 2W speaker.
ONVIF camera support: Profile S, T and M, over a 10/100 Mbps RJ-45 network port.
IP67 and IK10 rated, all-in-one with junction box and bracket; PoE (802.3at) or 12 VDC.

Technical specification

Model	DHI-ITC413-PW4D-IZ1
Series	DHI-ITC413-PW4D Series, Smart ANPR Camera (Access ANPR)
Image sensor	1/1.8" CMOS
Resolution	4MP, 2688 × 1520
Lens	Motorised vari-focal 2.7mm-12mm, F1.4, DC iris
Field of view	H 92° (W) to 46.1° (T); V 49° to 26.0°; D 109° to 52.8°
Minimum illumination	0.0004 lux@F1.4 colour; 0.0001 lux@F1.4 B/W; 0 lux with illuminator on
Illuminators	4 × IR (850nm); ANPR 10 m, video monitoring 30 m
Max. detection speed	80 km/h
Capture distance / detected width	3 m-8 m / 3 m-4 m
Video compression	H.264H; H.264B; H.264M; H.265; MJPEG; main stream 4M (2688 × 1520), 1080p, 720p
Recognition	147 vehicle logos; 12 vehicle colours; 10 vehicle types
Plate lists	Allowlist 110,000; blocklist 110,000
Storage	Built-in TF card port; Dahua, Kingston and SanDisk cards up to 256 GB listed
Audio	Built-in microphone; built-in speaker 2 W; 1-channel RCA audio output
Alarm and control	2 alarm inputs; 2 relay outputs (2A 30 VDC / 0.5A 125 VAC); 2 × RS-485; Wiegand
Network	RJ-45 10/100 Mbps; ONVIF Profile S, T and M
Power	12 VDC 2 A or PoE 802.3at Type 2 Class 4 (max. 20 W); under 6 W with no lighting, under 12 W with lighting
Protection	IP67; IK10; aluminium alloy body and plastic
Operating temperature	-30 °C to +65 °C
Size and weight	395.0 × 120.8 × 127.8 mm (L × W × H); 2.3 kg net

How far it can see (Dahua DORI figures for -IZ1)

Lens	Detect	Observe	Recognise	Identify
Wide (2.7mm)	60.4 m	24.2 m	12.1 m	6.0 m
Tele (12mm)	128.7 m	51.5 m	25.7 m	12.9 m

Works with

Accessory Dahua lists for this camera that Zenith stocks:

Dahua PFA150 pole mount bracket
Dahua DHI-NVR5208-8P-EI2 8 Channel PoE NVR: 8 channels with 8 PoE ports rated IEEE 802.3af/at, up to 25.5 W per port, which covers the camera's 20 W PoE+ maximum.
Dahua DHI-NVR5232-16P-EI2 32 Channel 16-Port PoE NVR: a larger site option: 32 channels with 16 PoE ports (802.3af/at).

These are general compatibility suggestions (same brand, ONVIF IP, matching power and channel specifications), not pairings we have tested.

Same Dahua ITC413-PW4D series with a longer lens: the DHI-ITC413-PW4D-IZ3, with an 8-32mm motorised lens.

Common questions

What range does it cover?

Dahua lists a capture distance of 3m-8m and a detected width of 3m-4m for this model, with a maximum detection speed of 80 km/h. It is a short range unit for entry and exit points such as barriers and gates.

Does it need a separate ANPR server?

Dahua says the camera can perform its functions without being connected to other devices, with recognition done on the camera.

How does it control a barrier?

It has 2 relay outputs (2A 30 VDC / 0.5A 125 VAC) that can connect to devices such as barriers, plus RS-485 and Wiegand. Dahua describes built-in signal, data and communication ports for controlling entry and exit barriers.

What does it recognise?

Vehicle type, number plate, vehicle brand (147 logos) and vehicle colour (12 colours), with 10 vehicle types listed.

Is it rated for outdoor use?

Yes. It is IP67 and IK10 rated, and Dahua describes it as dustproof, waterproof and tamper-proof. Operating temperature is -30 °C to +65 °C.

How is it powered?

By PoE (802.3at Type 2 Class 4, max. 20 W) or 12 VDC 2 A.

Full manufacturer specification: Dahua product page

Supplied by Zenith Security Co, Wolverhampton. We deliver to England, Scotland and Wales, or you can collect from our Wolverhampton trade counter (please call first).

Browse the full Dahua range, more IP cameras, or contact us on 01902 902251 or visit our Wolverhampton trade counter for advice.
