Dahua DHI-KTW02 - 2MP Wi-Fi Video Intercom System Kit

Dahua DHI-KTW02 — 2MP Wi-Fi Video Intercom Kit with Villa Door Station

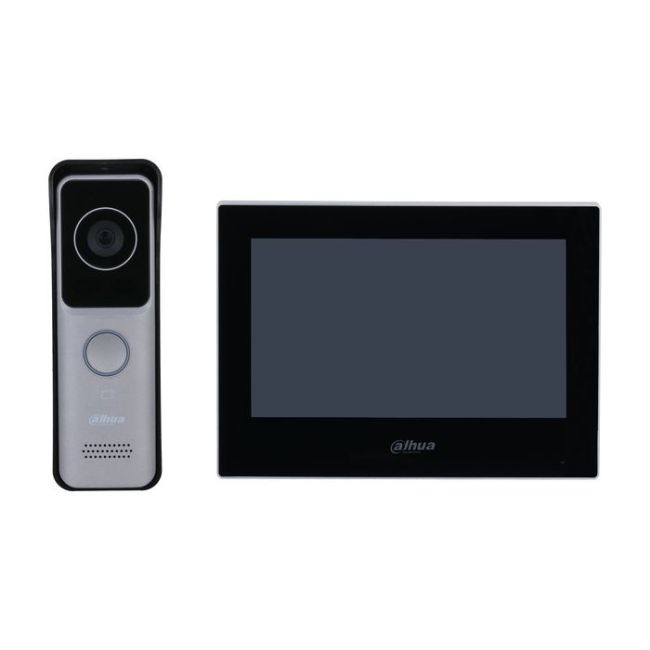

The Dahua DHI-KTW02 is a Wi-Fi video intercom kit: a DHI-VTO2311R-WP villa door station with a DHI-VTH2621G-WP 7-inch IP indoor monitor. The ultra slim door station has a 1/2.8" 2-MP HD CMOS camera with 120 dB WDR and auto IR, in an IP65 rated PC and ABS casing. The indoor monitor is a 7" capacitive touchscreen at 1024 × 600 with Wi-Fi, so it can join your network without a cable to every room. It works as a house intercom system and a video door entry system: the villa door station at the entrance and the indoor monitor let you talk to visitors and unlock the door by IC card, from the monitor or through the app.

Also listed as KTW02.

Who is it for?

This kit suits a single-occupancy villa or house wanting a straightforward Wi-Fi IP video intercom system, unlocking by IC card, the indoor monitor or the app.

Key features

• Ultra slim door station in PC and ABS material, for indoor and outdoor use.
• 1/2.8" 2-MP HD CMOS camera with IR illumination and auto WDR.
• Two-way video call with the indoor monitor; video and voice messages from visitors can be checked on the indoor monitor.
• Video call and unlocking through the app, or unlock with an IC card.
• Wi-Fi connection on the door station and the indoor monitor, and a PoE power supply option.
• IP65 rated door station with H.264 and H.265.
• Indoor monitor: 7" TFT capacitive touchscreen, 1024 × 600, 6-channel alarm input and 1-channel alarm output, H.265 and H.264 decoding.

Technical specification

Works with

• Dahua DHI-VTO2311R-WP Wi-Fi villa door station, the door station in this kit, also listed on its own

What you will need

• A PoE switch or injector, or a 12–33 VDC power adapter, for the door station
• A Wi-Fi network for the indoor monitor, or an Ethernet connection if you prefer
• A Micro SD card (up to 256 GB) if you want local video or snapshot storage

Common questions

Does the indoor monitor need a network cable?

No. It has Wi-Fi (IEEE 802.11b/g/n on 2.4 GHz), and Dahua also lists an RJ-45 Ethernet port for a wired connection.

How is the door unlocked?

By IC card, from the indoor monitor, or remotely through the app.

Is the door station suitable outdoors?

Yes. It is IP65 rated, in a PC and ABS casing, with an operating temperature of –40 °C to +60 °C.

What power does it need?

The door station takes 12–33 VDC, 1 A or standard PoE, and the power adapter is optional. The indoor monitor takes 12 VDC 1 A or standard PoE.

Can I keep visitor messages?

Dahua lists video and voice messages from visitors that can be checked on the indoor monitor. Messages are kept when an SD card is inserted in the indoor monitor or door station, and the door station takes a Micro SD card up to 256 GB.

How many indoor monitors can I add?

Dahua lists 9 extensions for a villa and 4 for an apartment.

Full manufacturer specification: Dahua product page
