Dahua DHI-VTO2311R-WP 2MP Wi-Fi villa door station, slim IP video intercom system, IP65

Skip to the beginning of the images gallery

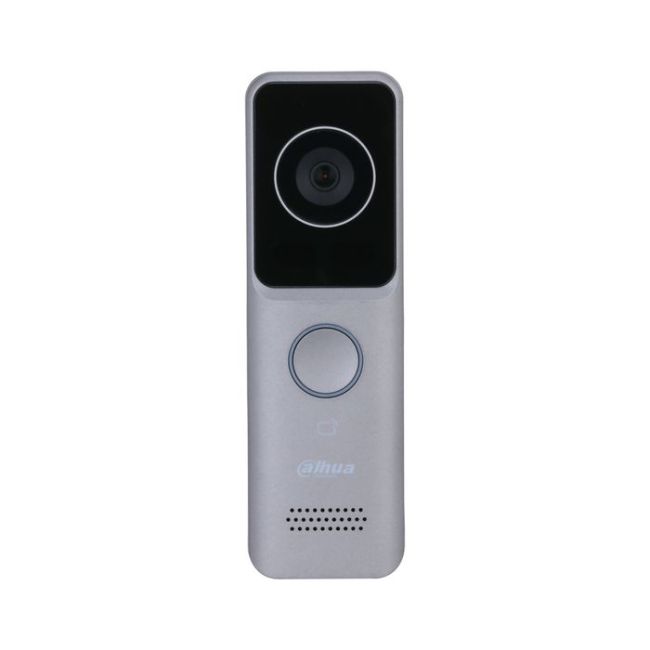

Dahua DHI-VTO2311R-WP - 2MP Wi-Fi Villa Door Station

£123.20 £102.67

In stock

SKU

DHI-VTO2311R-WP

Product Features

Dahua DHI-VTO2311R-WP is a 2MP Wi-Fi villa door station and wireless video intercom for a video door entry system.
1/2.8-inch 2-MP HD CMOS camera, 120 dB WDR, 3D and 2D noise reduction, auto IR.
Two-way calls with indoor monitors, plus calling and unlocking by app.
Unlock with IC card, app or indoor monitor, with H.264 and H.265 compression.
IP65 rated, powered by standard PoE or 12-33 VDC.

Product Description

Product Specifications

Dahua DHI-VTO2311R-WP — 2MP Wi-Fi Villa Door Station

The Dahua DHI-VTO2311R-WP is a slim IP villa door station for a house or small premises, with a 2MP camera, a mechanical call button and an IC card reader. It connects over Wi-Fi (2.4GHz) or a 10/100 network cable, and it can be powered by standard PoE or a 12-33V DC supply.

The 1/2.8-inch camera has a 110 degree horizontal view, 120dB WDR and auto IR for callers after dark. Visitors can make two-way video calls to indoor monitors, and Dahua lists video calls and unlocking through the app. The reader stores up to 3000 IC cards and reads them from 0 to 3cm.

It has a lock control port, an exit button input, a door status input and a tamper alarm. The light grey PC and ABS case is IP65 rated for -40 to +60 degrees C and is surface mounted, and a rain cover is included.

Also listed as VTO2311R-WP.

Key features

1/2.8-inch 2-MP HD CMOS camera with 120 dB WDR, 3D NR and 2D NR, and auto IR.
Two-way video call with indoor monitors; video and voice messages from visitors can be checked on the indoor monitor.
Video call and unlocking through the app.
Unlock with IC card, app or indoor monitor, with room for 3000 cards and a card reading distance of 0 cm to 3 cm.
Wi-Fi connection (IEEE 802.11b/g/n, 2.4 GHz) and a 10/100 Mbps RJ-45 port.
H.264 and H.265 video compression.
IP65 rated, ultra slim design in PC and ABS.
Standard PoE or 12-33 VDC 1 A power supply.

Technical specification

Model	DHI-VTO2311R-WP (Wi-Fi Villa Door Station)
Camera	1/2.8-inch CMOS 2-MP HD camera
Field of view	H: 110°; V: 62°; D: 133°
WDR	120 dB
Noise reduction	3D NR; 2D NR
Video compression	H.264; H.265
Video resolution	Main stream: 720p, WVGA, D1 and CIF. Sub stream: 1080p, WVGA, D1, QVGA and CIF
Light compensation	Auto IR
Day/Night	Auto (ICR)/Color/B/W; Color/B/W
Audio	1 input; built-in speaker; two-way audio; G.711a, G.711u, PCM
Unlock mode	Card; app; indoor monitor
Card	IC card; card capacity 3000; reading distance 0 cm-3 cm
Wi-Fi	IEEE 802.11b; IEEE 802.11g; IEEE 802.11n; 2.4 GHz
Network port	1 x RJ-45 10/100 Mbps Ethernet port
Interoperability	ONVIF; CGI
Storage	Micro SD card (max. 256 GB)
Power supply	12-33 VDC, 1 A; standard PoE. Power adapter optional
Power consumption	3.5 W (standby); 6 W (working)
Installation	Surface mount
Appearance colour and casing	Light grey; PC+ABS
Protection	IP65
Operating temperature	-40 °C to +60 °C (-40 °F to +140 °F)
Dimensions	160 mm x 50 mm x 30 mm (6.30 x 1.97 x 1.18 in)
Weight	0.18 kg net; 0.4 kg gross

Works with and related products

Dahua lists two-way video calls between this door station and indoor monitors. Related products from Zenith:

Dahua DHI-KTW02 Wi-Fi villa door station and IP indoor monitor kit
Dahua DHI-VTH5422HW 2-wire IP indoor monitor: a 7-inch TFT indoor monitor with PoE.
Dahua DHI-VTH5221DW-S2 7-Inch Wi-Fi and PoE Indoor Monitor: a Dahua IP indoor monitor with Wi-Fi and PoE for answering calls from the door station
Dahua DH-PFS4206-4P-120 4 Port PoE+ Switch: a small PoE+ switch that can power the door station and an indoor monitor from one place

Pairings are suggested on general compatibility (same brand, matching connection type and specification), not as tested combinations.

Common questions

Is the DHI-VTO2311R-WP a Wi-Fi door station?

Yes. Dahua lists a Wi-Fi connection (IEEE 802.11b/g/n, 2.4 GHz), and it also has a 10/100 Mbps RJ-45 network port.

How is it powered?

By 12-33 VDC at 1 A or by standard PoE. A power adapter is optional. Dahua lists 3.5 W standby and 6 W working.

How can the door be unlocked?

By IC card, from the app, or from an indoor monitor. The reader holds 3000 cards and reads from 0 cm to 3 cm.

What does the camera see?

A 1/2.8-inch 2-MP HD CMOS camera with a field of view of H 110°, V 62° and D 133°, 120 dB WDR, 3D and 2D noise reduction and auto IR.

Is it weatherproof?

It is IP65 rated and works from -40 °C to +60 °C. Dahua's datasheet lists IP65 as its protection rating and does not state an IK rating.

Can it keep messages and snapshots?

Dahua lists leave videos and auto snapshot, which need an SD card in the indoor monitor or door station, with Micro SD up to 256 GB.

Which indoor monitor does it work with?

Dahua lists two-way video calls with indoor monitors but does not name models in this datasheet. See the related products above, or contact us to check a pairing.

Does it have a tamper alarm?

Yes. Dahua lists a tamper alarm on this door station.

What lock connections does it have?

It has one lock control port, one exit button input and one door status detection input.

What comes in the box?

Dahua lists an alarm power ribbon cable and a rain cover as included accessories. A power adapter is optional.

Full manufacturer specification: Dahua datasheet (PDF)
