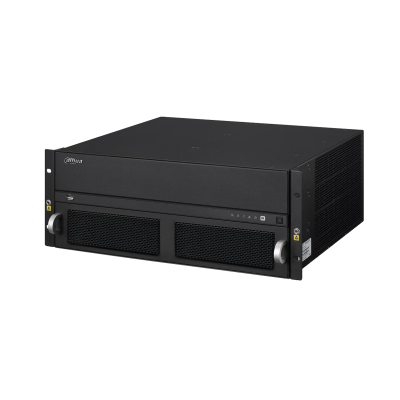

Dahua DHI-M70-4U-E - 4K H.265 Video Wall Controller

£3,134.88 £2,612.40

In stock

SKU

DHI-M70-4U-E

Product Features

Dahua DHI-M70-4U-E is a 4U video wall controller, video wall processor and matrix decoder with 4K H.265 decoding.
Acts as a matrix switcher and decodes up to 80 channels at 8MP or 320 channels at 1080P when fully configured.
Splices up to 60 screens, with splicing, zoom, merge, roam and overlay.
Pluggable card design in a 19 inch 4U ATCA chassis, with 6 gigabit RJ-45 network ports.

Product Description

Product Specifications

Dahua DHI-M70-4U-E - 4K H.265 Video Wall Controller

The Dahua DHI-M70-4U-E is the 4U chassis at the centre of Dahua's M70 video wall system. It takes pluggable cards for decoding, video input and video output, and uses them to put camera streams and other video sources onto a wall of screens. It is aimed at control rooms, monitoring centres and large sites where operators need many cameras visible at once.

The chassis has 12 slots: 2 for main control boards and 10 for video and audio function boards. Fully configured, Dahua rates it at 80 channels of 8MP decoding or 320 channels at 1080P, and it can splice output across up to 60 LCD screens, with zoom, merge, roam and overlay of windows on the wall.

Six gigabit RJ-45 ports handle matrix control, preview and central storage, and the system can be run from a web browser, the local GUI, a video platform, a network keyboard or an iPad. Dahua's ordering information lists the chassis on its own, so decoding and output cards are chosen separately to suit the size of the wall.

Also listed as M70-4U-E.

Key features

19 inch standard 4U ATCA industry box with easy and flexible configuration through pluggable card modules.
Decoding when fully configured: 20 channels at 32MP, 80 channels at 8MP, 320 channels at 1080P, 720 channels at 720P or 1280 channels at D1.
Decoding of 240 channels of D1 non-standard stream signals when fully configured.
40 channels of 1080P signal encoding when fully configured.
Splices up to 60 screens. Video wall splicing supports up to 60 LCD display units, with splicing, zoom, merge, roam and overlay.
Base unit of a modular video wall system: the decoding, video input and video output cards are separate pluggable cards.
Analog and digital video signal input and matrix output, with SD and HD video signal matrix switching.
Non-compressed digital signal encoding output.
6 RJ-45 gigabit network ports for matrix control, preview and online central storage.
Supports TCP/IP, RTP, RTSP, RTCP, TCP, UDP, DHCP, PPPoE and other network protocols.
Remote casting of analog and digital video onto the video wall, and remote reboot, upgrade and default setting.

Technical specification

Model	DHI-M70-4U-E
Dahua type	Multi-service Video Management Platform (Ultra Series)
Dahua ordering description	4K, H.265 Decoding
Main processor	Quad-core embedded microprocessor
Operating system	Embedded Linux
Bus	PCI-E
Mainframe slots	12 (2 main control board slots, 10 video and audio function board slots)
Mainframe	Power module (redundant power optional), main control board, control board, PCI-E bus rear panel, smart temperature controlled fan
Video input cards	Maximum 10
Video output cards	Maximum 10
Encoding (fully configured)	40 channels at 1080P
Decoding (fully configured)	20 channels at 32MP, 80 channels at 8MP, 320 channels at 1080P, 720 channels at 720P or 1280 channels at D1; 240 channels of D1 non-standard stream
Video wall splicing	Up to 60 LCD display units
Video wall functions	Splicing, zoom, merge, roam, overlay
Control mode	WEB, local GUI, video platform, network keyboard, iPad
Network	6 RJ-45 ports (10/100/1000M), 2 on the main board and 4 on the control board
Serial port	4 RS232 ports (4 RJ-45) for console and control; 1 RS485 port
USB	3 USB 2.0, 1 USB 3.0
Power supply	100 V to 240 V AC, 50/60 Hz
Power consumption	600 W
Working environment	-10 to +50 degrees C, 10% to 90% RH, 86 kPa to 106 kPa
Dimensions (W x D x H)	4U, 482.6 mm x 437.0 mm x 177.0 mm (19.0 x 17.2 x 7.0 inch)
Weight	25 kg (fully configured)

Related products

Related Dahua products in our range: DHI-NVR616H-128-XI (128 channel WizMind NVR) and DH-S5500-24GF4XF-E (28 port managed aggregation switch).

Works well with

Dahua DHI-NVR616H-128-XI 128 Channel NVR: a large Dahua recorder to hold the camera streams the wall decodes
Dahua DH-S5500-24GF4XF-E 28 Port Managed Aggregation Switch: to aggregate camera and recorder traffic feeding the controller's gigabit ports

Pairings are suggested on general compatibility (same brand, matching connection type and specification), not as tested combinations.

Common questions

What is the DHI-M70-4U-E?

It is the 4U chassis of Dahua's M70 multi-service video management platform. It decodes video streams, switches analog and digital video signals as a matrix and splices them across a video wall of up to 60 screens.

How many screens can it splice?

Up to 60 screens. Dahua lists video wall splicing of up to 60 LCD display units, with splicing, zoom, merge, roam and overlay.

What can it decode?

When fully configured: 20 channels at 32MP, 80 channels at 8MP (4K), 320 channels at 1080P, 720 channels at 720P or 1280 channels at D1. Dahua lists the model as 4K, H.265 decoding.

Does it include decoding cards?

The datasheet lists decoding, video input and video output cards as separate pluggable cards, and its ordering information lists the DHI-M70-4U-E chassis only. Contact us to confirm the cards you need for your video wall.

Is it a matrix switcher?

Yes. As well as decoding, it works as a video matrix switcher: Dahua lists analog and digital video signal input and matrix output, with SD and HD video signal matrix switching.

How is it controlled?

The datasheet lists the control modes WEB, local GUI, video platform, network keyboard and iPad.

What network connections does it have?

6 RJ-45 gigabit ports (2 on the main board and 4 on the control board) for matrix control, preview and online central storage, plus 4 RS232 ports, 1 RS485 port and USB ports.
