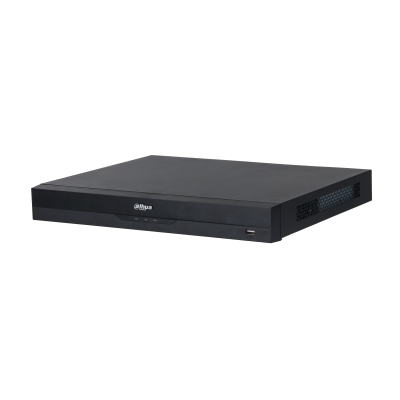

Dahua DHI-NVR5216-8P-EI - 16 Channel 8-Port PoE NVR
Product Features
- Dahua DHI-NVR5216-8P-EI is a 16 channel NVR (network video recorder) with 8 PoE ports from the WizSense range.
- It records IP cameras up to 32MP, with 4K HDMI output and VGA.
- On-recorder AI: 2-channel face detection and recognition, 4-channel perimeter protection and 8-channel SMD Plus.
- Two SATA bays take hard drives up to 20TB each, with N+M cluster and iSCSI support.
Dahua DHI-NVR5216-8P-EI — 16 Channel 8-Port PoE NVR
The Dahua DHI-NVR5216-8P-EI is a 16 channel NVR, also called a network video recorder, with 8 PoE ports, from Dahua's WizSense range. It is a CCTV recorder for IP cameras up to 32MP, with 4K HDMI output. Dahua lists on-recorder AI for 2-channel face detection and recognition, 4-channel perimeter protection and 8-channel SMD Plus, with N+M cluster and iSCSI support.
Also listed as NVR5216-8P-EI.
Key features
- 16 channel recorder with 8 PoE ports (10/100 Mbps, IEEE 802.3af/at). Ports 1-8 support ePoE. Total PoE output is 130 W, with a maximum of 25.5 W on one port.
- IP cameras up to 32MP. Dahua lists decoding of 32 x 1080p@30 fps or 16 x 4MP@30 fps, and 384 Mbps incoming, recording and outgoing bandwidth with AI off (200 Mbps with AI on).
- 4K HDMI output plus VGA output.
- AI by recorder: 2-channel face detection and recognition (up to 20 face databases and 20,000 face images), 4-channel perimeter protection and 8-channel SMD Plus.
- AI by camera, with compatible cameras: face detection and recognition, perimeter protection, SMD, metadata, ANPR, stereo analysis, heat map, people counting, PPE detection, smart object detection and smart sound detection. AcuPick supports up to 16 channels.
- NVR NEXT modular interface, EPTZ, and one-click arming and disarming.
- 2 SATA ports for hard drives up to 20 TB each, with N+M cluster and iSCSI support.
Technical specification
| Model | DHI-NVR5216-8P-EI |
|---|---|
| Dahua description | Dahua 16CH 2HDD 1U NETWORK VIDEO RECORDER |
| Series | WizSense, NVR5000-EI |
| Processor and operating system | Industrial-grade processor; Embedded Linux |
| Audio and video access channels | 16 channels |
| Network bandwidth | AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing; AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing |
| Recording resolution | 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 720p; 960p; D1; CIF; QCIF |
| Decoding capability (AI disabled) | 2-channel 32 MP@25 fps; 2-channel 24 MP@25 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 10-channel 6 MP@30 fps; 12-channel 5 MP@30 fps; 16-channel 4 MP@30 fps |
| Video compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| AI by recorder | 2-channel face detection and recognition (up to 20 face databases, 20,000 face images); 4-channel perimeter protection; 8-channel SMD Plus |
| AI by camera | Face detection; face recognition; video metadata (human, motor vehicles, non-motor vehicles); perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map; PPE detection; smart object detection; smart sound detection |
| AcuPick (by camera) | Max. 16 channels, 1 combined event per channel/s |
| Video output | 1 VGA, 1 HDMI; HDMI: 7680 x 4320, 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720; VGA: 1920 x 1080, 1280 x 1024, 1280 x 720 |
| Multi-screen display | Main screen 1/4/8/9/16; sub screen 1/4/8/9/16 |
| PoE | 8 ports, 10/100 Mbps, IEEE 802.3 af/at, ports 1-8 support ePoE |
| Hard drives | 2 SATA ports, each disk up to 20 TB (limit varies with environment temperature) |
| Third-party camera access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha |
| Interoperability | ONVIF 25.06 (Profile T; Profile S; Profile G; Profile M); CGI; SDK |
| Audio input / output | 1-channel RCA in; 1-channel RCA out |
| Alarm input / output | 4 channels in; 2 channels out |
| Other ports | 1 network port (10/100/1000 Mbps, RJ-45); 2 USB (1 front USB 2.0, 1 rear USB 3.0); 1 RS-232; 1 RS-485 |
| Power supply | 100-240 VAC, 47-63 Hz |
| Power consumption | NVR 10 W or less (without HDD); total PoE output 130 W, 25.5 W maximum per port |
| Size and weight | 375.0 mm x 329.4 mm x 53.0 mm (W x D x H); 2.57 kg net |
AcuPick search: this model supports Dahua AcuPick. See Dahua AcuPick 2.0 explained for how it works and what's new.
Works with
- Dahua DHI-ARB1606 RS485 alarm box, listed by Dahua as an optional accessory
- Hard drives: choose one from the Hard Drive option on this page (Dahua lists 2 SATA ports, up to 20 TB each)
Common questions
How many cameras can the DHI-NVR5216-8P-EI record?
It has 16 audio and video access channels, so it records up to 16 IP cameras. Dahua lists support for cameras up to 32MP.
Can I connect 16 cameras if there are only 8 PoE ports?
The recorder has 16 channels but 8 PoE ports (ports 1-8, which support ePoE), so 8 PoE cameras connect straight to it. The other channels need cameras connected over the network, for example through a PoE switch.
What does WizSense mean?
WizSense is Dahua's AI range. Dahua says it uses an independent AI chip and deep learning algorithms and focuses on human and vehicle detection. Read our WizSense guide for more.
What AI does the recorder run itself?
By recorder: 2-channel face detection and recognition, 4-channel perimeter protection and 8-channel SMD Plus. Video metadata, AcuPick, ANPR, people counting, heat map and PPE detection are done by the camera, so they need compatible cameras.
How much storage can it take?
It has 2 SATA ports, each taking a disk up to 20 TB. Dahua also lists N+M cluster and iSCSI support.
Can it record cameras from other brands?
Dahua lists ONVIF (Profile T, S, G and M) and access for Panasonic, Sony, Axis, Arecont, Pelco, Canon and Hanwha cameras.
Full manufacturer specification: Dahua product page
Browse the full Dahua range, more CCTV recorders, or contact us on 01902 902251 or visit our Wolverhampton trade counter for advice.
Download the Dahua DHI-NVR5216-8P-EI datasheet (PDF).
Supplied by Zenith Security Co, Wolverhampton. We deliver to England, Scotland and Wales, or you can collect from our Wolverhampton trade counter (please call first).
Browse the range: Dahua NVR range · Dahua cameras.
| Product Code | DHI-NVR5216-8P-EI |
|---|---|
| Brand | Dahua |
| HDD Bays | 2 |
| Max IP Camera Resolution | 32MP |
| PoE Ports | 8 |
| AI Function | SMD Plus, IVS (Perimeter Protection), Face Recognition, AcuPick, Video Metadata |
| Video Output | 1 VGA/1 HDMI |
| Product Type | NVR |
| Max No. of Channels | 16 ch |
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG |
| Recording Resolution | 32MP, 24MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, 960p, D1, CIF, QCIF |
| Display | 1 x HDMI (up to 7680x4320), 1 x VGA (up to 1920x1080) |
| Storage Capacity | 2 x SATA HDD bays, up to 20TB each |
| Audio I/O | 1 x RCA audio in, 1 x RCA audio out |
| Alarm I/O | 4 x alarm in, 2 x alarm out |
| Interface | 1 x RJ-45 10/100/1000 Mbps Ethernet port |
| PoE Port | 8 x PoE ports, 10/100 Mbps, IEEE 802.3af/at, ports 1-8 support ePoE |
| USB Port | 2 x USB (1 x USB 2.0 front, 1 x USB 3.0 rear) |
| Serial Interface | 1 x RS-232, 1 x RS-485 |
| Smart Function | AI face detection & recognition, SMD Plus, perimeter protection, video metadata, ANPR (camera-side) |
| Power | 100-240V AC, 47-63Hz |
| Operating Temperature | -10C to +55C |
| Dimensions | 375.0 x 329.4 x 53.0 mm (W x D x H) |
