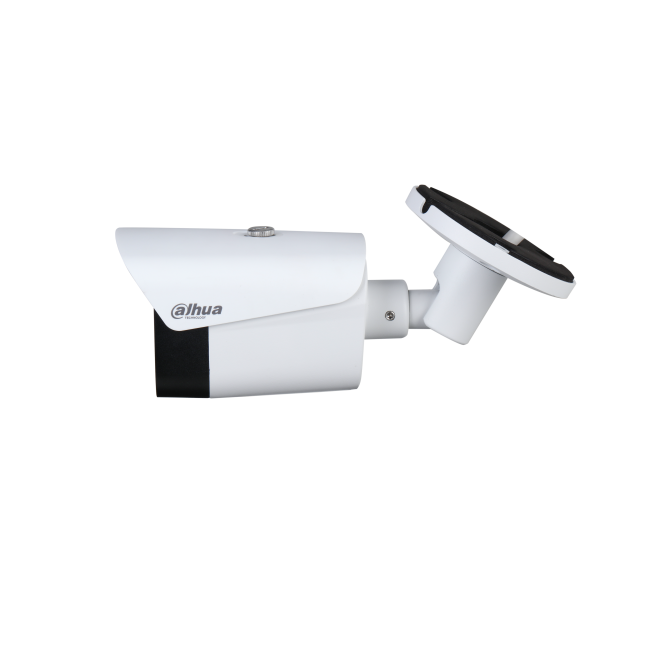

Dahua DHI-TPC-BF1241-B3F4-DW-S2 - 4MP Thermal Network Mini Hybrid Bullet Camera, 3.5mm/4mm
Product Features
- 256 × 192 VOx uncooled thermal sensor with 3.5mm lens (50.6° horizontal)
- 4MP visible channel with 4mm lens and 30m IR
- Heat detection and alarm, cold and hot spot trace
- Tripwire and intrusion with human/vehicle classification, smoking and call detection
- Image fusion and 18 colour palettes
- IP67, 12V DC or PoE, micro SD up to 256GB
Dahua DHI-TPC-BF1241-B3F4-DW-S2: 4MP Thermal Network Mini Hybrid Bullet Camera
The Dahua DHI-TPC-BF1241-B3F4-DW-S2 is a dual-channel bullet camera from Dahua's Eureka series (Dahua model TPC-BF1241-S2). It combines a 256 × 192 vanadium oxide thermal sensor with a 3.5mm lens and a 4MP visible camera with a 4mm lens. The thermal channel sees heat in total darkness, smoke and light fog, while the visible channel records colour detail. It is the wide-angle version of the DHI-TPC-BF1241-B7F8-DW-S2.
Who is it for?
Warehouses, yards, plant rooms, farms, boundaries and car parks where you want early warning of a heat source or reliable detection of people and vehicles at night without relying on lighting. Heat detection with cold and hot spot trace helps flag overheating equipment or a developing fire.
Key specification
| Model | DHI-TPC-BF1241-B3F4-DW-S2 |
|---|---|
| Thermal detector | Vanadium oxide uncooled focal plane, 256 × 192, 12μm, 8-14μm |
| Thermal sensitivity | < 40mK (NETD) |
| Thermal lens | 3.5mm, F1.0; H 50.6°, V 37.8° |
| Visible sensor | 1/2.7" CMOS, 4MP (2336 × 1752) |
| Visible lens | 4mm, F1.6; H 71.2°, V 52° |
| IR distance | 30m |
| Min. illumination | Colour 0.05 lux; B/W 0.005 lux; 0 lux with IR on |
| Intelligence | Tripwire, intrusion; heat detection and alarm; cold and hot spot trace; human and vehicle classification; smoking detection; call detection |
| Image | 18 colour palettes; fusion mode; DDE; 16x digital zoom; 2D/3D NR |
| Video compression | H.265, H.264, H.264H, MJPEG |
| Storage | Micro SD up to 256GB |
| Ports | RJ-45 10/100; 1 audio in/out; 1 alarm in/out; RS-485 |
| Interoperability | ONVIF, CGI, Dahua SDK |
| Power | 12V DC ±20% or PoE; max. 10.1W (12V DC), 12.3W (PoE) |
| Protection | IP67 |
| Operating temperature | -30°C to +60°C |
| Dimensions / weight | 205.5 × 90.4 × 90.1mm; 0.9kg |
Detection distances (3.5mm thermal lens)
| Target | Detect | Recognise | Identify |
|---|---|---|---|
| Vehicle | 449m | 110m | 56m |
| Human | 146m | 38m | 19m |
Heat detection distance up to 45m (0.2m × 0.2m target). Perimeter protection distance: human 24.5m, vehicle 72.5m.
Mounting accessories (from Dahua's datasheet)
- PFA152-E pole mount bracket
- DH-PFA130-E junction box
What you will need
- A PoE switch or PoE NVR port, or a 12V DC power supply
- A Dahua NVR or DSS software to record the thermal and visible channels
- Cat5e or Cat6 cable, up to 100m per run
Frequently asked questions
Is this a temperature measurement (radiometric) camera?
It provides heat detection and alarm with cold and hot spot trace. Dahua's datasheet for this model does not list spot or area temperature measurement rules.
Why choose the 3.5mm version?
It gives the widest thermal view (50.6°) for yards and building perimeters. The 7mm version reaches further (human detection 292m) with a narrower 24° view.
Does it work in total darkness?
Yes. The thermal channel needs no light at all, and the visible channel has 30m IR.
Can it be powered by PoE?
Yes, or by a 12V DC supply.
Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales. Browse the full Dahua range or contact us on 01902 902251.
| Product Code | DHI-TPC-BF1241-B3F4-DW-S2 |
|---|---|
| Manufacturer | Dahua |
| AI Function | IVS (Perimeter Protection) |
| Protection Level | IP67 |
| Power Supply | 12V DC, PoE |
| Illumination Distance | Up to 30m |
| Product Type | Thermal Camera |
| Max Resolution | 4MP |
| Protection Level, Ingress Protection | IP67 |
| Power | 12V DC ±20%, PoE |
