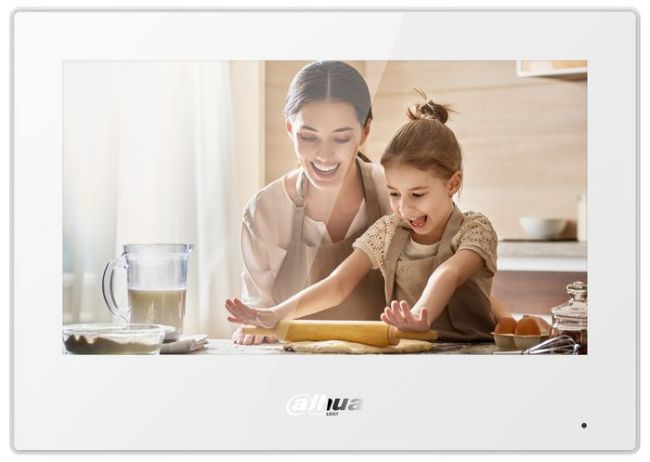

Dahua DHI-VTH5321GW-W - 7 Inch Android IP Video Intercom Indoor Monitor for Apartment and Villa
Product Features
- Dahua DHI-VTH5321GW-W is a 7 inch Android IP video intercom indoor monitor for apartment intercom and video door entry systems.
- Capacitive touch screen at 1024x600, running Android 8.1 with app installation.
- Ethernet and Wi-Fi, powered by 12 V DC or PoE.
- Two-way audio, 8 alarm inputs, 1 alarm output and a TF card slot up to 256 GB.
Dahua DHI-VTH5321GW-W - 7 Inch Android IP Video Intercom System Indoor Monitor
The Dahua DHI-VTH5321GW-W is a 7 inch Android IP indoor monitor for Dahua video intercom and video door entry systems. It has a 1024 x 600 capacitive touch screen, runs Android 8.1 and connects over Ethernet and Wi-Fi, and Dahua highlights quick configuration for the villa system. For an apartment intercom, Dahua lists 9 apartment extensions, against 4 villa extensions in a villa system. This listing is the white finish. Dahua's datasheet covers the DHI-VTH5321GW-W and the DHI-VTH5321GB-W together; Dahua lists the model as DHI-VTH5321GW-W (VTH5321GW-W without the DHI- prefix).
Also listed as VTH5321GW-W.
Key features
- 7 inch TFT capacitive touch screen at 1024 x 600.
- Android 8.1 with a more user-friendly UI, and support for Android app installation.
- Ethernet and Wi-Fi network support (IEEE 802.11b/g/n, 2.4 GHz).
- Quick configuration for the villa system, with 4 villa extensions (calls can be made among up to 3 indoor monitors when only Wi-Fi is connected) or 9 apartment extensions.
- Two-way audio with an omnidirectional microphone, a built-in 1 W speaker and echo suppression.
- Elevator control, text announcements from the management centre, leave videos or text messages (SD card needed) and a do not disturb mode.
- 8 alarm inputs, 1 alarm output, RS-485, SOS and a doorbell input that uses an alarm input port.
- Powered by 12 V DC 1 A or PoE (802.3af), with a Micro SD card slot for up to 256 GB.
Technical specification
| Model | DHI-VTH5321GW-W (Dahua datasheet covers DHI-VTH5321GW-W and DHI-VTH5321GB-W) |
|---|---|
| Main processor / operating system | Embedded processor; Android 8.1 |
| Network protocol | IPv4, TCP, SIP, UDP, RTSP |
| Screen | Capacitive screen; 7 inch TFT LCD; 1024 x 600 |
| Video / audio compression | H.264; PCM |
| Audio | 1 omnidirectional microphone; built-in 1 W speaker; two-way audio; echo suppression/DNR; 16 kHz, 16 bit |
| Extension number | Villa: 4 (calls can be made among up to 3 indoor monitors when only Wi-Fi is connected); apartment: 9 |
| Wi-Fi | Yes; IEEE 802.11b/802.11g/802.11n; 2.4 GHz; 64/128 bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Storage | Micro SD card, up to 256 GB |
| Functions | Text announcements; elevator control; leave videos or text messages (SD card needed); do not disturb mode |
| Alarm and serial ports | RS-485: 1; alarm input: 8; alarm output: 1; doorbell: yes (uses an alarm input port); SOS: yes |
| Power output | 1 x 12 V/100 mA |
| Network port | 1 x 10M/100M Ethernet |
| Casing / colour | PC+ABS; white/black (datasheet) |
| Power supply | 12 V DC 1 A; PoE (802.3af) |
| Installation | Surface mount |
| Certifications | CE; FCC |
| Supplied accessories (datasheet) | Surface mount bracket, alarm ribbon cable, RS-485 cable and power-supply pins |
| Dimensions | 189.6 mm x 134.6 mm x 26 mm (7.46" x 5.30" x 1.02") |
| Operating conditions | -10 °C to +55 °C (+14 °F to +131 °F); 10%RH-95%RH non-condensing; below 3,000 m |
| Power consumption | ≤1.5 W (standby); ≤7 W (working) |
| Weight | Net 385 g (0.85 lb); gross 490 g (1.08 lb) |
Works with
Dahua's product page lists a VTM59D desktop support as an accessory. Stocked by Zenith: Dahua VTM59D desktop support for 7-inch indoor monitors. Other Dahua indoor monitors at Zenith: Dahua DHI-VTH5421EW-H IP and Wi-Fi indoor monitor with handset and Dahua DHI-VTH5341G-W Android 10-inch indoor monitor.
Common questions
Does the Dahua DHI-VTH5321GW-W have Wi-Fi?
Yes. It supports Ethernet and Wi-Fi (IEEE 802.11b/g/n on 2.4 GHz) and has a 10M/100M Ethernet port. Dahua notes that with only Wi-Fi connected, calls can be made among up to 3 indoor monitors in a villa system.
How is it powered?
By 12 V DC at 1 A or PoE (802.3af). Power consumption is 1.5 W or less in standby and 7 W or less when working.
How many extensions can it support?
Dahua lists 4 extensions for a villa and 9 for an apartment.
What is supplied with it?
Dahua's datasheet lists a surface mount bracket, an alarm ribbon cable, an RS-485 cable and power-supply pins as provided.
Does it support elevator control?
Yes. Dahua lists elevator control through the indoor monitor.
Which door stations does it work with?
It is the indoor monitor for a Dahua video intercom system. Tell us the door station model you are pairing it with and we will confirm compatibility before you order.
Full manufacturer specification: Dahua product page
Browse the full Dahua range, our Access control category, contact us on 01902 902251, or see our Wolverhampton trade counter page.
Download the Dahua DHI-VTH5321GW-W datasheet (PDF).
Supplied by Zenith Security Co, Wolverhampton. We deliver to England, Scotland and Wales, or you can collect from our Wolverhampton trade counter (please call first).
Browse the range: Dahua video intercom · Dahua cameras.
| Product Code | DHI-VTH5321GW-W |
|---|---|
| Brand | Dahua |
| Product Type | Video Intercom |
| Power | PoE / DC12V |
