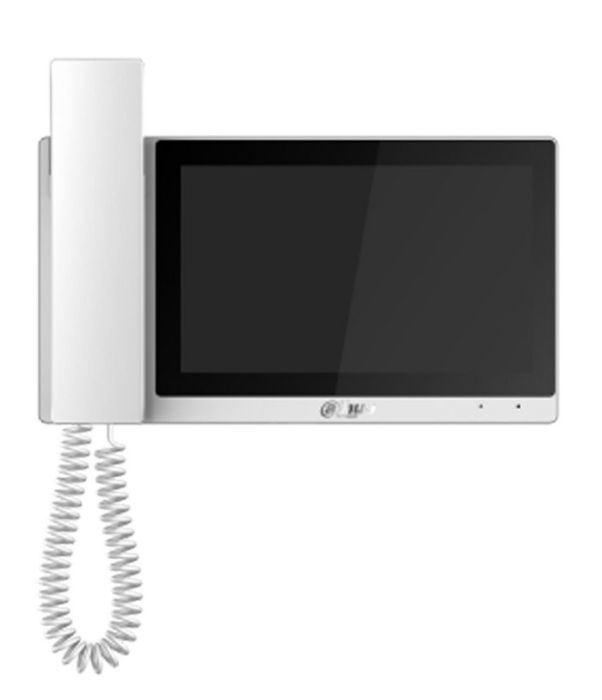

Dahua DHI-VTH5421EW-H 7 inch IP and Wi-Fi video intercom indoor monitor with handset for video door entry system

Skip to the beginning of the images gallery

Dahua DHI-VTH5421EW-H - 7 Inch IP and Wi-Fi Video Intercom Indoor Monitor with Handset

Name: Dahua DHI-VTH5421EW-H - 7 Inch IP and Wi-Fi Video Intercom Indoor Monitor with Handset
Brand: Dahua
SKU: DHI-VTH5421EW-H
Price: 150.22 GBP
Availability: InStock

£150.22 £125.18

In stock

SKU

DHI-VTH5421EW-H

Product Features

Dahua DHI-VTH5421EW-H is a 7 inch IP and Wi-Fi video intercom indoor monitor with a handset for private calls in a video door entry system.
Two way intercom with hands-free answering and a capacitive TFT touch screen at 1024x600.
Standard PoE or 12 V DC power, 6 alarm inputs, 1 alarm output, RS-485 and SOS.
SD card slot up to 32 GB, with ONVIF and SIP support.

Product Description

Product Specifications

Dahua DHI-VTH5421EW-H - 7 Inch IP and Wi-Fi Video Intercom System Indoor Monitor with Handset

The Dahua DHI-VTH5421EW-H is a 7 inch IP and Wi-Fi video intercom indoor monitor with a handset, for Dahua video intercom and video door entry systems. It has a 1024 x 600 capacitive touch screen and standard PoE, and the handset gives a private conversation while you can also answer calls hands free. It suits a video door entry system, where its full duplex audio through the built-in speaker or handset speaker makes it a two way intercom, and Dahua lists 4 extensions for an apartment intercom. This listing is the white finish. Dahua's datasheet is titled DHI-VTH5421E(W)-H; Dahua lists the model as DHI-VTH5421EW-H (VTH5421EW-H without the DHI- prefix).

Also listed as VTH5421EW-H.

Key features

7 inch TFT capacitive touch screen at 1024 x 600.
Handset for private calls, plus hands-free answering.
IP and Wi-Fi connectivity: a 100 Mbps RJ-45 port and Wi-Fi (IEEE 802.11b/g/n, 2.4 GHz).
Standard PoE or 12 V DC 1 A power.
Device ports: 6 alarm inputs, 1 alarm output, 1 RS-485 and a 12 V/100 mA power output for peripheral alarm devices and sensors.
SOS alarm, doorbell input, elevator control, text message viewing and a do not disturb mode.
Embedded Linux system with ONVIF and SIP support, H.264 video and PCM audio.
SD card slot up to 32 GB for leaving photos and messages.

Technical specification

Model	DHI-VTH5421EW-H (Dahua datasheet model: DHI-VTH5421E(W)-H)
Operating system	Embedded Linux
Interoperability / protocols	ONVIF; IPv4, DNS, RTSP, RTP, TCP, UDP, SIP
Screen	Capacitive screen; 7 inch TFT display; 1024 (H) x 600 (V)
Video / audio encoding	H.264; PCM
Audio	1 channel input; 1 built-in speaker and 1 handset speaker; full duplex communication; echo suppression and cancellation/digital noise reduction; 16 kHz, 16 bit
Communication / functions	Full digital; text messages viewable; elevator control; leave photos and messages (SD card needed); do not disturb mode
Extension quantity	Villa: 9 extensions; apartment: 4 extensions
Wi-Fi	Yes; IEEE 802.11b/802.11g/802.11n; 2.4 GHz; 64/128 bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Storage	SD card supported, maximum capacity 32 GB
Alarm and serial ports	RS-485: 1; alarm input: 6 (digital); alarm output: 1 (digital); doorbell: yes (uses an alarm input port); SOS: yes
Power output	1 x 12 V/100 mA
Network port	1 x RJ-45 100 Mbps
Housing	PC+ABS
Power supply	12 V DC 1 A; standard PoE
Installation	Surface mount (only suitable for mounting at heights ≤ 2 m)
Certification	CE, FCC
Accessories (datasheet)	Bracket; alarm cable; RS-485 cable
Dimensions	236.0 mm x 129.8 mm x 23.0 mm (9.29" x 5.11" x 0.91")
Operating conditions	-10 °C to +55 °C (+14 °F to +131 °F); 10%RH-90%RH non-condensing; below 3,000 m
Power consumption	≤2 W (standby); ≤5 W (working)
Weight	Net 566 g (1.25 lb); gross 917 g (2.02 lb)

Works with

Dahua's product page lists a VTM59D desktop support as an accessory. Stocked by Zenith: Dahua VTM59D desktop support for 7-inch indoor monitors. Other Dahua indoor monitors at Zenith: Dahua DHI-VTH5321GW-W Android 7-inch indoor monitor and Dahua DHI-VTH5341G-W Android 10-inch indoor monitor.

Common questions

Why choose the Dahua DHI-VTH5421EW-H with a handset?

The handset gives a private, phone-style conversation, and you can also answer hands free. Dahua lists one built-in speaker and one handset speaker, with full duplex communication and echo suppression.

Does it have Wi-Fi?

Yes. It supports Wi-Fi (IEEE 802.11b/g/n on 2.4 GHz) as well as a 100 Mbps RJ-45 network port.

How is it powered?

By standard PoE or 12 V DC at 1 A. Power consumption is 2 W or less in standby and 5 W or less when working.

How many extensions can it support?

Dahua lists 9 extensions for a villa and 4 for an apartment.

How is it installed?

It is a surface mount monitor. Dahua notes it is only suitable for mounting at heights of 2 m or less.

Which door stations does it work with?

It is the indoor monitor for a Dahua video intercom system. Tell us the door station model you are pairing it with and we will confirm compatibility before you order.
