Dahua VTM123 - Desk Stand for VTH Video Intercom Indoor Monitor
Product Features
- Dahua VTM123 is a desktop mounted bracket and desk stand for VTH video intercom indoor monitors, listed under intercom accessories.
- 45 degree dip angle, size 190 x 100 x 54 mm, PC and ABS casing.
- The cable leaves through a wire outlet at the rear or bottom of the stand.
- Dahua gives the VTH5221E-H handset as its installation example.
Dahua VTM123 — Desk Stand for Video Intercom Indoor Monitor

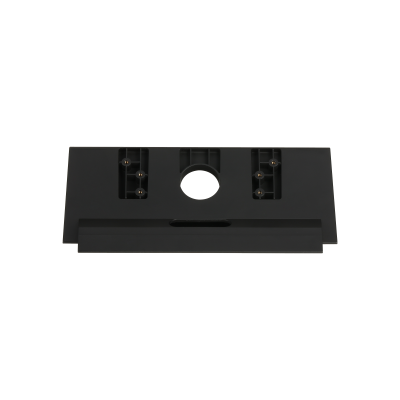

The Dahua VTM123 is a desktop mounted bracket (a desk stand) for a VTH indoor monitor from Dahua's video intercom range. Dahua lists it under video intercom accessories, in the mounting accessories group. The monitor sits at a 45° dip angle on the stand, and the cable is guided out through a wire outlet at the rear or bottom of the stand.
Also listed as DH-VTM123.
Who is it for?
Anyone who wants a VTH indoor monitor to sit on a desk or counter. Dahua's installation example uses the VTH5221E-H handset.
Key features
- Desktop mounted bracket for an indoor monitor (VTH handset).
- 45° dip angle.
- PC + ABS casing.
- Size 190 mm × 100 mm × 54 mm.
- Cable outlet at the rear or at the bottom of the stand.
- Metal bracket fixes to the stand with two M3 × 6 cross recessed countersunk head screws.
Technical specification
| Model | VTM123 |
|---|---|
| Type | Desktop mounted bracket for indoor monitor |
| Size | 190 mm × 100 mm × 54 mm |
| Dip angle | 45° |
| Casing material | PC + ABS |
| Cable outlet | Rear or bottom of the stand |
| Fixing screws | Two M3 × 6 cross recessed countersunk head screws (metal bracket to stand) |
Related products
- Dahua VTM59D desk stand for a 7-inch video intercom indoor monitor
- Dahua DHI-VTH5421EW-H 7 inch IP and Wi-Fi video intercom indoor monitor with handset
Common questions
What is the Dahua VTM123?
It is a desktop mounted bracket for an indoor monitor, with a 45° dip angle and a PC + ABS casing, measuring 190 × 100 × 54 mm.
Which monitors does it suit?
Dahua describes it as a desktop mounted bracket for indoor monitors, and its installation example uses the VTH5221E-H handset. Check your monitor model against Dahua's datasheet before ordering.
How is the monitor fitted?
Using the VTH5221E-H as the example: tighten the metal bracket onto the top two nuts of the desktop bracket with two M3 × 6 cross recessed countersunk head screws, connect the wire, guide the wire through the outlet at the rear or bottom of the stand, then put the handset along the slot at the top of the metal bracket and install it into the bracket.
Are there other desk stands?
Yes, the Dahua VTM59D desk stand suits a 7-inch indoor monitor.
Full manufacturer specification: Dahua product page
Supplied by Zenith Security Co, Wolverhampton. We deliver to England, Scotland and Wales, or you can collect from our Wolverhampton trade counter (please call first).
Browse the full Dahua range, or contact us on 01902 902251 or visit our Wolverhampton trade counter for advice.
| Product Code | VTM123 |
|---|---|
| Manufacturer | Dahua |
| Product Type | Accessories & Mounts |
