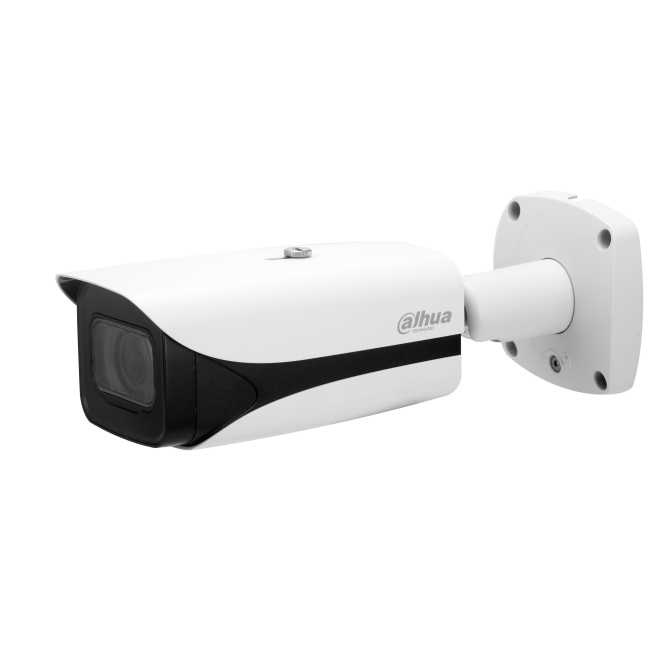

Dahua DH-IPC-HFW5442EP-ZE-2712-ATC-S - 4MP 2K WizMind AI Varifocal Bullet IP CCTV Camera
Product Features
- Dahua DH-IPC-HFW5442EP-ZE-2712-ATC-S is a 4MP 2K WizMind AI PoE IP CCTV bullet camera with a 2.7-12mm motorised lens.
- Infrared night vision up to 60m, 140dB WDR, built-in microphone and Micro SD up to 1TB.
- AI perimeter protection, face detection, people counting, heat map and AcuPick search.
- Waterproof IP67 and IK10 housing, powered by 12V DC, PoE (802.3af) or ePoE.
- Colour: white · Horizontal field of view: 115° to 47° (2.7-12 mm lens)
Dahua DH-IPC-HFW5442EP-ZE-2712-ATC-S
The Dahua DH-IPC-HFW5442EP-ZE-2712-ATC-S (IPC-HFW5442EP-ZE-2712-ATC-S without the DH- prefix) is a 4MP 2K WizMind AI PoE IP CCTV bullet camera with a 2.7-12mm motorised varifocal lens and IR up to 60m. Dahua's datasheet for the family, DH-IPC-HFW5442E-ZE, describes it as a 4MP IR vari-focal bullet WizMind network camera from the WizMind 5 Series. It pairs a 1/1.8-inch sensor with AI-ISP and 140 dB WDR with deep learning for perimeter protection, face detection, people counting, heat map and video metadata. With an IP67 and IK10 housing and an operating temperature of -30°C to +60°C it can be mounted outdoors.
Also listed as IPC-HFW5442EP-ZE-2712-ATC-S (Dahua base model IPC-HFW5442E-ZE).
Key features
- 4MP 2K output: 2688 x 1520 at up to 25/30 fps (1920 x 1080 at up to 50/60 fps) from a 1/1.8-inch CMOS sensor with AI-ISP.
- Motorised vari-focal 2.7-12mm lens, F1.8, with a 115° to 47° horizontal field of view.
- IR night vision up to 60m from 4 IR LEDs; minimum illumination 0.0007 lux in colour.
- 140 dB WDR and 3D noise reduction.
- WizMind AI perimeter protection: intrusion and tripwire classify humans, vehicles and animals, with self-learning to filter out false alarms.
- Face detection, people counting with queue management, heat map, video metadata, smart object detection and smart sound detection.
- AcuPick search for people, animals and motor vehicles in live and recorded video.
- Electronic image stabilisation (EIS), AI H.265 and AI H.264 coding, Smart H.265+ and Smart H.264+.
- IP67 and IK10 housing; 12 VDC, PoE (802.3af) or ePoE power.
- Alarm 2 in 1 out, audio 1 in 1 out, built-in microphone, Micro SD up to 1TB, ONVIF Profile S, G, T and M.
Technical specification
| Model | DH-IPC-HFW5442EP-ZE-2712-ATC-S (Dahua datasheet model: DH-IPC-HFW5442E-ZE) |
|---|---|
| Type | 4MP IR vari-focal bullet WizMind network camera |
| Image sensor | 1/1.8-inch CMOS, 4MP |
| Max. resolution | 2688 (H) x 1520 (V) at up to 25/30 fps; 1920 x 1080 at up to 50/60 fps |
| Lens | Motorised vari-focal 2.7-12mm, F1.8, auto iris |
| Field of view | H 115° to 47°, V 62° to 27°, D 137° to 54° |
| Close focus distance | 1.5m |
| Illumination | 4 IR LEDs, up to 60m; control Auto, Zoomprio or Manual |
| Min. illumination | 0.0007 lux at F1.8 (colour, 30 IRE); 0.0004 lux at F1.8 (B/W, 30 IRE); 0 lux with illuminator on |
| WDR | 140 dB |
| Video compression | H.265, H.264, H.264H, H.264B, MJPEG (sub stream only); Smart H.265+, Smart H.264+, AI H.265, AI H.264 |
| Streams | 4 streams |
| Intelligence | IVS perimeter protection (intrusion, tripwire, loitering detection, people gathering, parking detection); smart object detection; SMD 3.0; AcuPick; face detection; people counting; heat map; video metadata; smart sound detection |
| Audio | Built-in microphone; G.711a, G.711Mu, PCM, G.726, G.723; 1 channel in, 1 out (RCA) |
| Alarm | 2 channels in, 1 channel out |
| Storage | Micro SD up to 1TB; FTP, SFTP, NAS |
| Network | RJ-45 (10/100 Enhancement Base-T); ONVIF Profile S, G, T and M |
| Power supply | 12 VDC, PoE (802.3af) or ePoE |
| Power consumption | Basic 3.7 W (12 VDC), 4.9 W (PoE); max. 9.8 W (12 VDC), 12.3 W (PoE) |
| Protection | IP67, IK10 |
| Operating temperature | -30°C to +60°C |
| Dimensions | 273.2 x 95.0 x 95.0 mm (L x W x H) |
| Weight | 1.12 kg net |
DORI distances
DORI (Detect, Observe, Recognise, Identify) distances to EN 62676-4, from Dahua's datasheet. They do not reflect intelligent function distances.
| Lens | Detect | Observe | Recognise | Identify |
|---|---|---|---|---|
| Wide (2.7mm) | 57.5m | 23.0m | 11.5m | 5.8m |
| Tele (12mm) | 130.8m | 52.3m | 26.2m | 13.1m |
Works with
Optional accessories from Dahua's datasheet that Zenith lists:
- DH-PFA121-V3 waterproof junction box (also PFA121)
- DH-PFM900-E-V2 integrated mount tester
For recording, see our Dahua WizMind NVR range; Dahua says Smart Search works together with a Smart NVR. Related Dahua cameras: DH-IPC-HFW5241EP-ZE-27135 and the heater version DH-IPC-HFW5442HP-ZHE-2712F-DC12AC24V-ATC-S3.
Common questions
Can the zoom be changed after installation?
Yes. The 2.7-12mm lens is a motorised vari-focal lens, so zoom and focus are adjustable without changing the lens.
What is WizMind?
Dahua describes WizMind as a full portfolio of project-oriented AI products that use deep learning algorithms. This camera adds video metadata, face detection, perimeter protection and people counting. See our WizMind guide.
Does it detect animals?
Perimeter protection (intrusion, tripwire) classifies humans, vehicles and animals, and AcuPick can search recordings for people, animals and motor vehicles.
Does it count people?
Yes. It supports tripwire people counting, people counting in an area and queue management, and reports can be generated and exported.
Which memory card does it take?
Micro SD cards up to 1TB. FTP, SFTP and NAS storage are also listed.
How is it powered?
From 12 VDC, PoE (802.3af) or ePoE. Dahua advises disconnecting one source if the adapter and PoE are connected at the same time. Basic power use is 3.7 W on 12 VDC and 4.9 W on PoE.
Can it be used as an outdoor camera?
Yes. Dahua lists an IP67 and IK10 housing and an operating temperature of -30°C to +60°C, and it runs from 12 VDC, PoE (802.3af) or ePoE.
Is it a waterproof camera?
The housing is rated IP67, with IK10 impact protection, in Dahua's listing.
Is it an infrared camera?
Yes. It has 4 IR LEDs reaching up to 60m, and minimum illumination is 0 lux with the illuminator on.
Browse the full Dahua range or more IP cameras, or contact us on 01902 902251.
Supplied by Zenith Security Co, Wolverhampton. We deliver to England, Scotland and Wales, or you can collect from our Wolverhampton trade counter (please call first).
AcuPick search: this model supports Dahua AcuPick. See Dahua AcuPick 2.0 explained for how it works and what's new.
| Product Code | DH-IPC-HFW5442EP-ZE-2712-ATC-S |
|---|---|
| Manufacturer | Dahua |
| Style | Bullet Cameras |
| AI Function | SMD 3.0, IVS (Perimeter Protection), Face Detection, People Counting, Heat Map, AcuPick, Video Metadata, Smart Sound Detection |
| Protection Level | IP67, IK10 |
| Power Supply | 12V DC, PoE, ePoE |
| Illumination Distance | 31–60m |
| WDR | 140dB |
| Noise Reduction | 3DNR |
| Built-in Mic | Yes |
| Material | Metal & Plastic |
| Illuminator Type | IR LED |
| Product Type | IP Camera |
| Colour | White |
| Max Resolution | 4MP |
| Video Compression | H.265, H.264, H.264H, H.264B, MJPEG (sub stream); Smart H.265+, Smart H.264+; AI H.265, AI H.264 |
| Min. Illumination | 0.0007 lux@F1.8 (Color, 30 IRE); 0.0004 lux@F1.8 (B/W, 30 IRE); 0 lux (Illuminator on) |
| WDR | 140 dB |
| Lens Type | Vari-focal |
| Lens Size | 2.7 mm to 12 mm |
| FOV | H 115°–47°; V 62°–27° |
| Noise Reduction | 3D NR |
| Streams | 4 streams |
| Protection Level, Ingress Protection | IP67, IK10 |
| Operating Temperature | -30°C to +60°C |
| Local Storage | Micro SD, max. 1TB |
| Power | 12V DC, PoE (802.3af), ePoE |
| Dimensions | 273.2mm × 95.0mm × 95.0mm |
