Dahua DH-IS4210-8GT-120 - 10-Port Managed Industrial Gigabit CCTV PoE Switch

Dahua DH-IS4210-8GT-120 — 10-Port Managed Industrial Gigabit PoE Switch with 8 PoE Ports

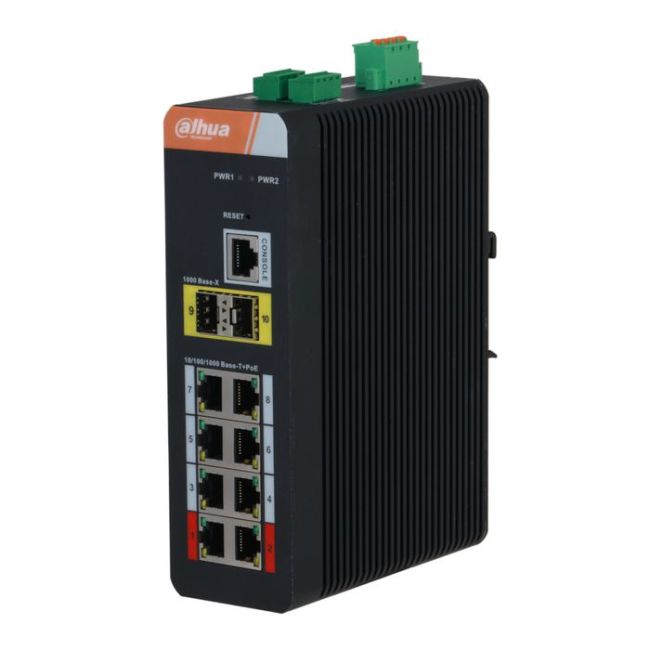

The Dahua DH-IS4210-8GT-120 is a 10-port managed industrial gigabit PoE network switch with 8 PoE ethernet ports and 2 SFP uplink ports. Dahua lists it as a 10-Port Managed Industrial Gigabit Switch with 8-Port PoE. It is a layer 2 switch with a full metal design, rated for -40°C to +75°C, and it powers PoE cameras on ports 1 to 8.

Also listed as IS4210-8GT-120.

Key features

• All-gigabit design: 8 × RJ45 10/100/1000 Mbps ports and 2 × SFP 1000 Mbps ports.
• IEEE 802.3af, 802.3at, Hi-PoE and 802.3bt (red port): ports 1 and 2 up to 90W each, ports 3 to 8 up to 30W each, 120W at full load.
• Long-distance PoE up to 250m, with the bandwidth reduced to 10 Mbps.
• PoE Watchdog detects a failed port and restarts it to recover a camera connection.
• STP, RSTP and ERPS loop protection, IEEE 802.1Q VLAN, static link aggregation and LACP.
• Redundant power supply: the switch stays powered if one power port fails.
• Desktop mount and DIN rail mount.
• Managed by web (HTTP and HTTPS), Telnet, CLI and SNMP v1/v2c/v3.

Technical specification

Works with

• Dahua GSFP-1310R-20-SMF Gigabit SFP module (1550/1310nm, LC, 20km, single-mode)
• Dahua GSFP-1310T-20-SMF Gigabit SFP module (1310/1550nm, LC, 20km, single-mode)
• Dahua GSFP-850-MMF Gigabit SFP module (850nm, LC, 550m, multi-mode)
• Dahua DRL-48V120W1AA 120W DIN rail power supply (listed in the datasheet ordering information)

See also the Dahua DH-IS4410-6GT-120, the same range with 6 PoE ports and 4 SFP ports.

What you will need

• A 53 VDC power supply. The datasheet states that the power adapter is not included.
• PoE cameras or access points on ports 1 to 8, and Cat5e or Cat6 cabling.
• SFP fibre modules for the uplink ports where you need a fibre link.

Common questions

Does it come with a power supply?

No. It takes a 53 VDC input and Dahua states that the power adapter is not included. Dahua lists the DRL-48V120W1AA DIN rail power supply in the datasheet ordering information. Tell us your install and we will help you match a supply.

How many PoE ports does it have, and what power can they give?

8 PoE ports (ports 1 to 8), supporting IEEE 802.3af, 802.3at, Hi-PoE and 802.3bt. Ports 1 and 2 give up to 90W each, ports 3 to 8 up to 30W each, and the full-load figure is 120W.

What makes it an industrial PoE switch?

Dahua rates it for -40°C to +75°C with a solid full metal design, protection against overcurrent, overvoltage and EMC, and a redundant power supply.

Can it power a camera 250m away?

Dahua lists long-distance PoE transmission of up to 250m, switched on by a dial or the web page, with the bandwidth reduced to 10 Mbps.

How is it managed?

It is a managed layer 2 switch with web (HTTP and HTTPS), Telnet, CLI and SNMP v1/v2c/v3 management, VLAN, STP, RSTP, ERPS and LACP.

Can I use fibre?

Yes. Ports 9 and 10 are SFP 1000 Mbps ports. SFP modules are sold separately: Dahua lists single-mode and multi-mode modules in the datasheet.

Is it a PoE switch for CCTV?

Yes. It is a PoE switch for security cameras: it powers PoE cameras on ports 1 to 8 using IEEE 802.3af, 802.3at, Hi-PoE or 802.3bt, so it can serve as a CCTV PoE switch for IP cameras. Ports 1 and 2 give up to 90W each, ports 3 to 8 up to 30W each, and the full-load figure is 120W.

Full manufacturer specification: Dahua product page
