Dahua DH-XVR5104HS-4KL-I3/T - 4 Channel 4K 5MP CCTV DVR with Two-Way Talk over Coax
Product Features
- Dahua DH-XVR5104HS-4KL-I3/T is a 4 channel Penta-brid 4K 5MP CCTV DVR, a digital video recorder with WizSense AI.
- A CCTV recorder for HDCVI, AHD, TVI, CVBS and IP cameras, with 4-channel two-way talk over coax.
- Up to 8 IP channels at 8MP, and Wi-Fi camera access.
- 4-channel AcuPick, perimeter protection and SMD Plus, 2-channel face recognition.
- 1 SATA bay up to 16 TB, HDMI output up to 4K.
Dahua DH-XVR5104HS-4KL-I3/T — 4 Channel 4K CCTV DVR with Two-Way Talk
The Dahua DH-XVR5104HS-4KL-I3/T is a compact 4 channel Penta-brid 4K 5MP CCTV DVR from Dahua's WizSense range, with one hard drive bay. Its 4 BNC inputs auto-detect HDCVI, AHD, TVI and CVBS cameras, and it accepts up to 8 IP camera channels. The "/T" version adds 4-channel two-way talk over the coax cable, so you can speak and listen through supported cameras. See the full range of Dahua Penta-brid recorders. As a CCTV recorder it stores footage on a SATA hard drive. Dahua names it the 4CH Penta-brid 4K Value/5MP Compact 1U 1HDD WizSense Digital Video Recorder.
Also listed as XVR5104HS-4KL-I3/T.
Key features
- Two-way talk: 4-channel two-way talk over coaxial cable between the camera, client and recorder, with instant voice intercom and audio alerts.
- AcuPick (4 channels) for analogue channels, to find targets in recorded video more quickly.
- WizSense AI on the recorder: 4-channel SMD Plus (or 8-channel SMD by camera) for human and vehicle alarms, 4-channel perimeter protection, and 2-channel face recognition (face recognition conflicts with SMD Plus and perimeter protection).
- 4-channel AI Coding with Smart H.265+ and H.265 dual-stream compression, and an Encoding Enhancement mode.
- Up to 8 IP channels, each up to 8MP, with 64 Mbps incoming bandwidth; supports accessing Wi-Fi cameras.
- EPTZ (1 channel) and privacy protection (1 channel).
- 1 SATA port for a drive of up to 16 TB; HDMI output up to 4K and a VGA output.
Technical specification
| Model | DH-XVR5104HS-4KL-I3/T |
|---|---|
| Dahua product name | 4CH Penta-brid 4K Value/5MP Compact 1U 1HDD WizSense Digital Video Recorder |

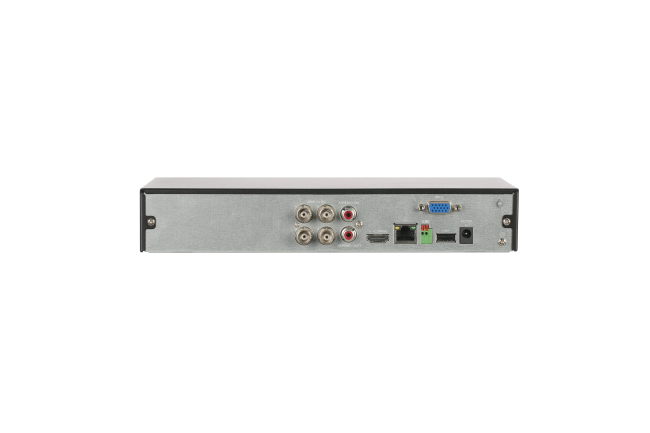

| Analogue camera input | 4 BNC ports, HDCVI/AHD/TVI/CVBS auto-detect |
| Analogue formats | CVI up to 4K@25/30 fps, 6 MP@20 fps, 5 MP@25 fps; TVI up to 4K@15 fps and 5 MP@20 fps; AHD up to 4K@15 fps and 5 MP@20 fps |
| IP camera input | Up to 8 channels (4 IP channels by default + 4 converted analogue channels); incoming 64 Mbps, recording 64 Mbps, outgoing 64 Mbps |
| Two-way talk | 4-channel coaxial two-way talk (BNC); local and network user two-way talk shares the first channel input |
| Video compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Audio compression | G.711a; G.711u; PCM |
| Video output | 1 HDMI, 1 VGA; HDMI up to 3840 × 2160 |
| AI by recorder | AcuPick 4 channels; SMD Plus 4 channels; SMD by camera 8 channels; perimeter protection 4 channels; face recognition 2 channels; EPTZ 1 channel; privacy protection 1 channel |
| Face database | Up to 10 face databases with 20,000 images |
| Third-party camera access | Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF |
| Interoperability | ONVIF 25.06 (Profile T; Profile S; Profile G); CGI; SDK |
| Network protocols | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search |
| Storage | 1 SATA port, up to 16 TB (the limit varies with environment temperature) |
| Audio ports | 1 RCA + 4 BNC (coaxial audio) in; 1 RCA out |
| Other ports | 1 RJ-45 (10/100 Mbps); 1 RS-485; 2 USB 2.0 (1 front, 1 rear) |
| Power | 12 VDC, 2 A; under 7 W without HDD |
| Operating temperature | -10 °C to +55 °C |
| Storage temperature | -20 °C to +60 °C |
| Operating humidity | 10%–90% RH, non-condensing |
| Installation | Desktop |
| Dimensions | 260.0 mm × 237.8 mm × 47.6 mm (W × D × H) |
| Net / gross weight | 0.88 kg / 1.45 kg |
Works with
- Dahua DHI-ARB1606 RS485 alarm box (listed by Dahua as an optional accessory)
- A surveillance hard drive from the Hard Drive option on this page
Common questions
What does the "/T" mean?
Dahua lists this model with 4-channel two-way talk over coaxial cable, so audio travels both ways between the recorder and supported cameras.
What does Penta-brid mean?
Dahua lists support for HDCVI, AHD, TVI, CVBS and IP video input on one recorder, so analogue and IP cameras can share it. See our guide to Dahua Penta-brid recorders.
Can I add IP cameras?
Yes. It takes 4 IP channels by default and up to 8 when analogue channels are converted to IP. Once IP extension is enabled, EPTZ, video quality analytics, scene changing, face recognition, face detection, perimeter protection, AcuPick and privacy protection cannot be used.
Can it use Wi-Fi cameras?
Dahua lists support for accessing Wi-Fi cameras and names the DH-NC300 (802.11AX 300M) and DH-NC650 (802.11AC 650M) wireless adapters as optional accessories.
Do I need AI cameras for face recognition and SMD Plus?
No. Dahua lists these for the analogue channels by recorder, so standard analogue cameras can use them. See our WizSense guide.
Does it come with a hard drive?
It has one SATA bay for a drive of up to 16 TB. Choose a drive from the Hard Drive option on this page to order this DVR with hard drive, or choose recorder only and supply your own.
Full manufacturer specification: Dahua product page
Supplied by Zenith Security Co, Wolverhampton. We deliver to England, Scotland and Wales, or you can collect from our Wolverhampton trade counter (please call first).
Browse the full Dahua range, our CCTV recorders, or contact us on 01902 902251 or visit our Wolverhampton trade counter for advice.
AcuPick search: this model supports Dahua AcuPick. See Dahua AcuPick 2.0 explained for how it works and what's new.
