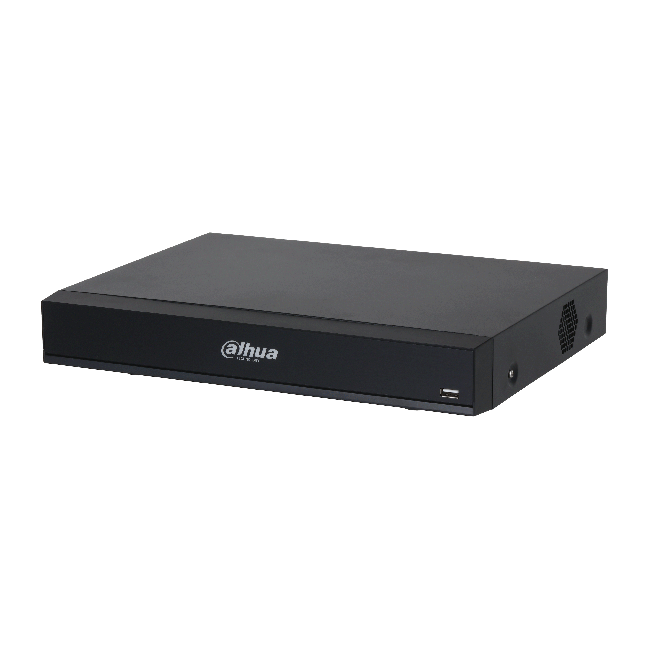

Dahua DH-XVR7104HE-4K-I3 - 4 Channel 4K DVR

Name: Dahua DH-XVR7104HE-4K-I3 - 4 Channel 4K DVR
Brand: Dahua
SKU: DH-XVR7104HE-4K-I3
Price: 216.58 GBP
Availability: InStock

£216.58 £180.48

In stock

SKU

DH-XVR7104HE-4K-I3

Product Features

Dahua DH-XVR7104HE-4K-I3 4 channel digital video recorder (4K CCTV DVR), a Penta-brid XVR from the WizSense range.
Takes HDCVI, AHD, TVI and CVBS cameras on 4 BNC inputs, plus up to 8 IP channels of up to 12MP.
AI by recorder: face recognition, SMD Plus, perimeter protection and QuickPick 2.0.
One SATA hard drive bay up to 16TB, with 4K HDMI and VGA output.
8 alarm inputs and 3 alarm outputs.

Hard Drive

Qty

Product Description

Product Specifications

Dahua DH-XVR7104HE-4K-I3 - 4 Channel 4K CCTV DVR Recorder

The Dahua DH-XVR7104HE-4K-I3 (XVR7104HE-4K-I3 without the DH- prefix) is a 4 channel 4K CCTV DVR and Penta-brid XVR digital video recorder from Dahua's WizSense range, in a Mini 1U case with one hard drive bay. Its 4 BNC inputs auto-detect HDCVI, AHD, TVI and CVBS cameras, and it also takes up to 8 IP camera channels (up to 12MP). AI by recorder adds human and vehicle filtering (SMD Plus), face recognition and perimeter protection. See the full range of Dahua Penta-brid recorders and our Penta-brid guide.

Also listed as XVR7104HE-4K-I3.

Key features

4 BNC analogue inputs (HDCVI, AHD, TVI, CVBS auto-detect) and up to 8 IP channels (up to 12MP), with 128 Mbps incoming bandwidth
Records 4K at 1 to 15fps, 6MP at up to 20fps, and 5MP, 4K-N, 4MP, 3MP and 1080p at up to 25/30fps
Smart H.265+, H.265, Smart H.264+, H.264 and AI Coding compression
AI by recorder: 4-channel SMD Plus, 4-channel perimeter protection, 2-channel face recognition, 2-channel QuickPick 2.0, 1-channel privacy protection, 1-channel EPTZ
HDMI output up to 3840 x 2160 and a VGA output
One SATA port, up to 16TB
8 alarm inputs and 3 alarm outputs; ONVIF 24.06 (Profile T, S and G)

Technical specification

Model	DH-XVR7104HE-4K-I3
Dahua description	4CH Penta-brid 4K Mini 1U 1HDD WizSense Digital Video Recorder
Analogue camera input	4 BNC, HDCVI/AHD/TVI/CVBS auto-detect
IP camera input	Up to 8 channels (4 by default plus 4 converted analogue channels), up to 12MP; incoming 128 Mbps, recording 128 Mbps, outgoing 128 Mbps
Encoding capacity (Encode Enhancement off)	Main stream 4K at 1-15fps; 6MP at 1-20fps; 5MP/4K-N/4MP/3MP/1080p/720p at 1-25/30fps
Encoding capacity (Encode Enhancement on)	1st channel 4K at 1-30fps, other channels 4K at 1-15fps
Video compression	AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
AI by recorder	SMD Plus 4 channels; perimeter protection 4 channels (general mode) or 2 channels (advanced mode); face recognition 2 channels; QuickPick 2.0 2 channels; privacy protection 1 channel
Face database	Up to 10 face databases with 20,000 images
Video output	1 HDMI (up to 3840 x 2160), 1 VGA
Multi-screen display	1/4 (1/4/8/9 with IP extension)
Third-party camera access	Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
Storage	1 SATA port, up to 16TB (limit varies with ambient temperature)
Alarm input / output	8 / 3
Audio	Input: 4 RCA and 4 BNC (coaxial audio); output: 1 RCA; two-way talk shares the first channel audio input
Network port	1 RJ-45, 10/100/1000 Mbps
Other ports	1 RS-485; 2 USB (1 front USB 2.0, 1 rear USB 3.0)
Mobile access	iOS; Android
Power supply	12 VDC, 2A
Power consumption	Under 10W without HDD
Operating conditions	-10 °C to +55 °C, 10%-90% RH non-condensing
Dimensions and weight	325.0 x 254.3 x 55.0mm (W x D x H); net 1.20kg, gross 1.90kg
Installation	Desktop
Certifications	CE, FCC

Works with

Dahua lists the DHI-ARB1606 alarm box as an optional accessory. Hard drives are available from the Hard Drive option on this page.

Common questions

How many cameras can it record?

It has 4 BNC analogue inputs and takes 4 IP channels by default, up to 8 IP channels when the analogue channels are converted to IP.

What does WizSense mean?

Dahua says WizSense is a series of AI products that use an independent AI chip and deep learning algorithms, focused on humans and vehicles. See our WizSense guide.

Can all the AI functions run together?

Not in every mode. Dahua notes that after IP extension is enabled, EPTZ, video quality analytics, scene changing, face recognition, face detection, SMD, perimeter protection, QuickPick 2.0 and privacy protection cannot be used. With Encode Enhancement enabled, Dahua says EPTZ, video quality analytics, scene changing, face recognition, face detection, perimeter protection, QuickPick 2.0 and privacy protection cannot be used.

Do I need AI cameras for face recognition and SMD Plus?

No. Dahua lists these functions as AI by recorder, so they run on the recorder.

Does it come with a hard drive?

It is sold without a hard drive. You can add one from the Hard Drive option on this page, or supply your own, up to 16TB.

Which cameras does it work with?

HDCVI, AHD, TVI and CVBS cameras on the BNC inputs, and IP cameras including ONVIF and the third-party brands Dahua lists.
