Dahua DHI-ARA13-W2(868B)-Blue - Wireless External Siren
Product Features
- Dahua DHI-ARA13-W2(868B)-Blue wireless external siren and alarm sounder for AirShield systems, with sound and light output.
- Up to 110 dB(A) with fire, medical, intrusion and panic alarm sounds and 12 LED groups.
- 868MHz two-way wireless with frequency hopping, up to 1,600 m in open space.
- IP65 for outdoor and indoor wall mounting, powered by 4 CR123A batteries or 9-15 VDC.
Dahua DHI-ARA13-W2(868B)-Blue — Wireless Alarm Siren
The Dahua DHI-ARA13-W2(868B)-Blue is the Blue version of Dahua's DHI-ARA13-W2(868) wireless external siren, an AirShield alarm siren and alarm sounder that gives the sound and light alarm for a wireless alarm system. It sounds multiple alarm types, including fire, medical, intrusion and panic, at up to 110 dB(A) and has 12 alarm LED groups. It is rated IP65 for outdoor or indoor wall mounting and communicates over two-way 868MHz wireless with frequency hopping, up to 1,600 m in open space.
Also listed as ARA13-W2(868B)-Blue.
Key features
- Sound and light alarm: multiple alarm sounds (fire, medical, intrusion, panic and more) with 12 alarm LED groups and a green alarm indicator. Dahua also lists red, yellow and blue indicator lights.
- Sound pressure of 110 dB(A) at volume high (95.2 dB(A) at 1 metre in an anechoic chamber).
- Outdoor and indoor use: IP65, -25 °C to +60 °C operating temperature, wall mount.
- 868MHz two-way communication with frequency hopping and AES-128 encryption, up to 1,600 m in an open space.
- Powered by 4 x CR123A batteries (3.4 years in Dahua's test case) or 9-15 VDC, with low battery detection.
- Case and wall tamper alarm, signal strength detection and cloud update with automatic recovery from update failure.
- Settings can be configured in the app.
Technical specification
| Model | DHI-ARA13-W2(868B)-Blue (Dahua datasheet model: DHI-ARA13-W2(868), Wireless External Siren) |
|---|---|
| Product type | Wireless external siren |
| Scenario | Outdoor/Indoor |
| Sound and light alarm | Light alarm and multiple alarm sounds, including fire, medical, intrusion, panic and more |
| Sound pressure | Volume high: 110 dB(A); in anechoic chamber: 95.2 dB(A) at 1 metre |
| Indicator light | 1 x green alarm indicator; 12 x alarm LED groups |
| Carrier frequency | 868.0 MHz-868.6 MHz |
| Transmitter power (EIRP) | Limit 25 mW |
| Communication mechanism | Two-way |
| Communication distance | Up to 1,600 m (5,249.34 ft) in an open space |
| Frequency hopping | Yes |
| Power supply | 4 x CR123A battery/9-15 VDC |
| Battery life | 4 CR123A batteries can be used for 3.4 years (if triggered fortnightly and the alarm sounds for 120 s each time with a battery efficiency of 80%) |
| Low battery detection | Yes |
| Tamper | Yes |
| Operating temperature | -25 °C to +60 °C (-13 °F to +140 °F) |
| Operating humidity | 10%-90% (RH) |
| Protection | IP65 |
| Installation | Wall mount |
| Casing material | PC + ABS |
| Dimensions | 200 mm × 200 mm × 52.5 mm (L × W × H) |
| Net weight | 610 g (1.34 lb) |
| Certifications | CE; EN 50131-1, EN 50131-4, EN 50131-6, EN 50131-5-3; Security Grade 2; Environmental Class IV |
Works with
This siren needs a compatible Dahua 868MHz AirShield alarm hub to sound. Dahua's datasheet does not list hub models, so ask us to check compatibility before you order. Related products we stock:

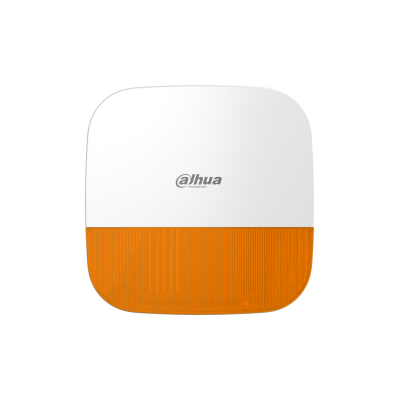

- Dahua DHI-ARA13-W2(868O)-Orange wireless siren (Orange version)
- Dahua DHI-ARA13-W2(868R)-Red wireless siren (Red version)
- Dahua DHI-ARC3800H-FW2(868) 4G wireless alarm hub
- Dahua DHI-ART-ARC3000H-03-GW2(868) AirShield wireless security alarm kit
- Dahua DHI-ALARMKIT-WithKeyfobs-V2 wireless alarm kit
- Dahua DHI-ALARMKIT-WithKeypads-V2 wireless alarm kit
- Dahua DHI-ARA12-W2(868) wireless indoor siren
Common questions
What does the DHI-ARA13-W2(868B)-Blue siren do?
It is the sound and light alarm output of a Dahua wireless alarm system. When it receives an alarm signal it triggers its sound and light alarm: one of its alarm sounds (fire, medical, intrusion, panic and more) at up to 110 dB(A) with 12 alarm LED groups.
Can it be fitted outdoors?
Yes. Dahua lists the scenario as outdoor and indoor, with IP65 protection, an operating temperature of -25 °C to +60 °C and wall mounting.
How loud is it?
Dahua gives 110 dB(A) at volume high, and 95.2 dB(A) at 1 metre measured in an anechoic chamber.
How is it powered and how long do the batteries last?
It runs on 4 x CR123A batteries or a 9-15 VDC supply and reports low battery. Dahua rates 4 CR123A batteries at 3.4 years if the siren is triggered fortnightly and sounds for 120 s each time, at 80% battery efficiency.
How far does the wireless signal reach?
Up to 1,600 m in an open space, using two-way 868MHz communication with frequency hopping and AES-128 encryption.
What is the difference between the Blue, Orange and Red versions?
Dahua's datasheet lists one siren, DHI-ARA13-W2(868), and does not describe colour versions, so the specification on this page is Dahua's for that siren. This listing is the Blue version (868B). If the colour matters for your installation, call us on 01902 902251 before ordering.
Browse the full Dahua range or contact us on 01902 902251.
Supplied by Zenith Security Co, Wolverhampton. We deliver to England, Scotland and Wales, or you can collect from our Wolverhampton trade counter (please call first).
Browse the range: Dahua AirShield alarms · Dahua cameras.
| Product Code | DHI-ARA13-W2(868B)-Blue |
|---|---|
| Brand | Dahua |
| Device Type | Siren |
| Product Type | Intruder & Smoke Alarm |
