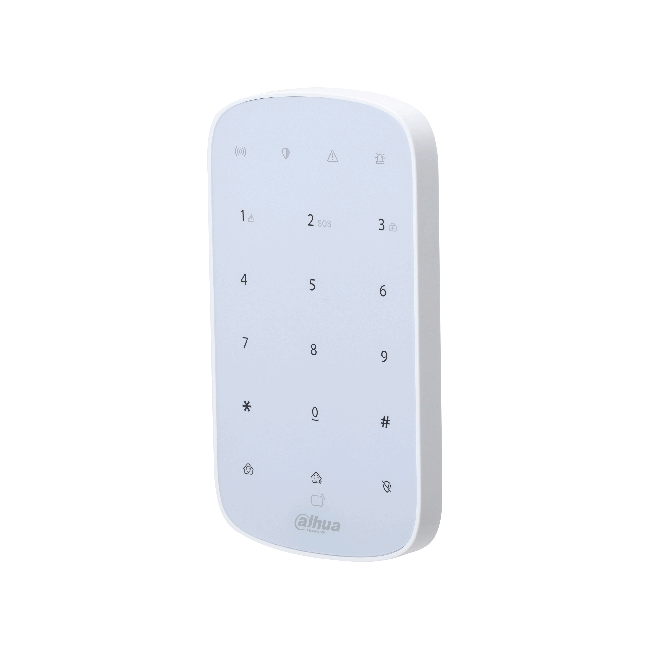

Dahua DHI-ARK30T-W2(868) - AirShield Wireless Alarm Keypad
Product Features
- Dahua DHI-ARK30T-W2(868) AirShield wireless alarm system keypad for use with a Dahua alarm hub.
- Arm and disarm with a private passcode or an IC card, for up to 32 users.
- Three shortcut alarms: medical, fire and emergency.
- 868MHz two-way wireless, AES128 encryption, up to 1,600m in open space.
- Runs on 4 AA batteries, about 3 years at one arm and disarm a day.
Dahua DHI-ARK30T-W2(868) — AirShield Wireless Alarm Keypad
The Dahua DHI-ARK30T-W2(868) is an AirShield wireless alarm system keypad for use with a Dahua alarm hub. Each of up to 32 users can arm and disarm the alarm system with their own private passcode or an IC card, and the hub keeps a log of the operations each user performs. Three shortcut alarms (medical, fire and emergency) can be raised from the keypad. This is the 868MHz version, with two-way AES128 encrypted wireless and frequency hopping. Dahua describes it as ideal for villas, shops, apartments and more.
Also listed as ARK30T-W2(868).
Key features
- Arm and disarm with a password or IC card, with 32 users each on their own private passcode.
- 3 shortcut alarms: medical, fire and emergency.
- 15 buttons (0-9, *, #, arm, disarm and home arm), 4 indicators (communication, arm/disarm, fault and alarm) and a built-in buzzer.
- Signal strength detection helps you choose a suitable installation site.
- Low battery alarm, tamper detection and temperature monitoring.
- Two-way 868.0-868.6MHz wireless with AES128 encryption and frequency hopping, up to 1,600m in open space.
- Cloud update, with automatic recovery from update failure.
- Runs on 4 AA batteries: about 3 years if used to arm and disarm once a day.
Technical specification
| Model | DHI-ARK30T-W2(868) |
|---|---|
| Type | Wireless keypad, used with an alarm hub |
| Arm and disarm | Password; IC card |
| User management | 32 users |
| Buttons | 15 buttons (0-9, *, #, arm, disarm, and home arm) |
| Indicator light | 4 indicators (communication, arm/disarm, fault, and alarm) |
| Buzzer | 1 × built-in buzzer |
| Shortcut alarms | Medical, fire, emergency |
| Low battery detection | Yes |
| Tamper | Yes |
| Remote update | Cloud update |
| Wireless carrier frequency | 868.0 MHz-868.6 MHz |
| Communication mechanism | Two-way |
| Communication distance | Up to 1,600 m (5,249.34 ft) in an open space |
| Encryption mode | AES128 |
| Frequency hopping | Yes |
| Power supply | 4 × AA batteries |
| Battery life | 3 years (if used to arm and disarm once a day); 2 years after enabling Entering/Exiting Delay Time and Arming/Disarming Ringtone |
| Operating temperature | -10 °C to +55 °C (indoor) |
| Operating humidity | 10%-90% (RH) |
| Product dimensions | 146.0 mm × 82.0 mm × 22.6 mm |
| Net weight | 145 g without battery; 240 g with battery |
| Installation | Wall mount |
| Casing material | PC + ABS |
| Certifications | CE; EN 50131 Security Grade 2; Environmental Class II |
Works with
Common questions
How do users arm and disarm it?
With a password or an IC card. It supports 32 users, each with their own private passcode, and the alarm hub keeps a log of the operations performed by each user.
What shortcut alarms does it have?
Three: medical, fire and emergency.
Does it need an alarm hub?
Yes. Dahua says the wireless keypad is used with an alarm hub. The (868) in the model number is the 868.0-868.6MHz version, so use it with an 868MHz hub.
How far will it communicate with the hub?
Dahua quotes up to 1,600 m in an open space.
How long do the batteries last?
It takes 4 AA batteries. Dahua quotes 3 years if the keypad is used to arm and disarm once a day, or 2 years with the entering/exiting delay time and arming/disarming ringtone enabled.
What standards does it meet?
Dahua lists CE, EN 50131 Security Grade 2 and Environmental Class II.
Full manufacturer specification: Dahua product page
Supplied by Zenith Security Co, Wolverhampton. We deliver to England, Scotland and Wales, or you can collect from our Wolverhampton trade counter (please call first).
Browse the full Dahua range, the Intruder alarms category, or contact us on 01902 902251 or visit our Wolverhampton trade counter for advice.
| Product Code | DHI-ARK30T-W2(868) |
|---|---|
| Manufacturer | Dahua |
| Product Type | Intruder & Smoke Alarm |
