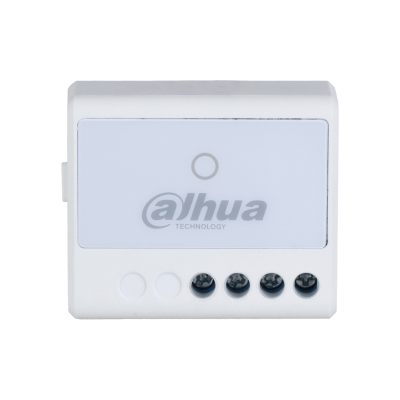

Dahua DHI-ARM7012-W2 - 433MHz Wireless WallSwitch Relay Module
Product Features
- Dahua DHI-ARM7012-W2 433MHz wireless WallSwitch relay module, a remote power switch.
- Remote mains switch: 100-240 VAC, built-in relay, up to 13A.
- Monitors voltage, current and energy consumption, with overvoltage, overload and overheating protection.
- Two-way AES128 wireless with jamming detection, up to 800m in open areas.
- Cloud update with automatic recovery if an update fails.
Dahua DHI-ARM7012-W2 — 433MHz Wireless WallSwitch Relay Module
The Dahua DHI-ARM7012-W2 is a 433MHz wireless WallSwitch, a wireless wall switch relay module. Dahua describes it as a power switch that remotely controls 100-240 VAC power, so you can switch mains power remotely: output terminal N is connected directly to input terminal N, and the connection between output terminal L and input terminal L is controlled by opening and closing a built-in relay. It also measures power consumption, and has protection against overvoltage, overload and overheating. It is wired into mains power, so installation should be carried out by a competent person.
Also listed as ARM7012-W2.
Key features
- Frequency hopping and two-way communication keep the wireless link stable.
- Jamming detection and communication encryption (AES128).
- Monitors voltage, current and energy consumption.
- Overheat and overload protection, and protection against overvoltage.
- Relay output: 1 channel, NO or NC, 100-240 VAC, max 13A.
- Cloud update, with automatic restore if a cloud update fails.
- Test mode, and one indicator for pairing and communication status; wall mount.
Technical specification
| Model | DHI-ARM7012-W2 |
|---|---|
| Type | Wireless WallSwitch (power switch) |
| Relay output | 1, NO/NC (100-240 VAC, max 13 A) |
| Power supply | 100-240 VAC, 50/60 HZ |
| Monitoring | Voltage, current and energy consumption |
| Protection | Overvoltage, overload and overheating |
| Indicator light | 1 for multiple statuses (pairing, communication) |
| Button | 1 |
| Remote update | Cloud update |
| Test mode | Yes |
| Wireless carrier frequency | 433.1 MHz-434.6 MHz |
| Communication mechanism | Two-way |
| Communication distance | 800 m (2624.67 ft) in open areas |
| Encryption mode | AES128 |
| Frequency hopping | Yes |
| Operating temperature | -10 °C to +55 °C (indoor) |
| Operating humidity | 10%-90% (RH) |
| Product dimensions | 39 mm × 33 mm × 19 mm |
| Net weight | 45 g |
| Installation | Wall mount |
| Casing material | Plastic |
| Certifications | CE |
Related products
- Dahua DHI-ARM7012-W2(868) 868MHz version of this wireless WallSwitch
- Dahua DHI-ARM7011-W2 433MHz wireless relay module
Common questions
What does the WallSwitch do?
Dahua describes it as a power switch that remotely controls 100-240 VAC power. Output terminal N is connected directly to input terminal N, and the connection between output terminal L and input terminal L is opened and closed by a built-in relay.
What load can it switch?
The relay output is 1 channel, NO or NC, rated 100-240 VAC at up to 13A. It is powered from 100-240 VAC, 50/60Hz, so it is wired into mains power and should be installed by a competent person.
What does it monitor and protect against?
It measures power consumption (voltage, current and energy consumption) and has protection against overvoltage, overload and overheating.
Which frequency is this model?
The model without (868) is the 433.1-434.6MHz version. The (868) model uses 868.0-868.6MHz. Choose the one that matches your alarm hub: Dahua shows this model with an RF433 alarm hub.
How far will it communicate?
Dahua quotes 800 m in open areas for this 433MHz model.
Does it need an alarm hub?
Yes. Dahua shows the WallSwitch connected to an alarm hub, with setup through the DMSS app. The 868MHz version is the Dahua DHI-ARM7012-W2(868) 868MHz wireless WallSwitch.
Can it recover from a failed update?
Yes. It supports cloud update and automatically restores when a cloud update fails.
Full manufacturer specification: Dahua product page
Supplied by Zenith Security Co, Wolverhampton. We deliver to England, Scotland and Wales, or you can collect from our Wolverhampton trade counter (please call first).
Browse the full Dahua range, the Intruder alarms category, or contact us on 01902 902251 or visit our Wolverhampton trade counter for advice.
Browse the range: Dahua AirShield alarms · Dahua cameras.
| Product Code | DHI-ARM7012-W2 |
|---|---|
| Brand | Dahua |
| Device Type | Input/Relay Module |
| Product Type | Intruder & Smoke Alarm |
