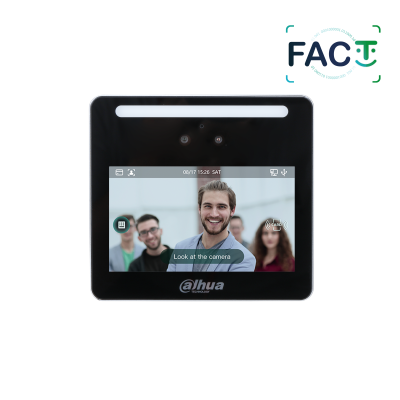

Dahua DHI-ASI3213G-MW - 4.3-Inch Face Recognition Biometric Access Control Terminal

Name: Dahua DHI-ASI3213G-MW - 4.3-Inch Face Recognition Biometric Access Control Terminal
Brand: Dahua
SKU: DHI-ASI3213G-MW
Price: 176.4 GBP
Availability: InStock

£176.40 £147.00

In stock

SKU

DHI-ASI3213G-MW

Product Features

Dahua DHI-ASI3213G-MW is a 4.3-inch face recognition biometric access control terminal with a touch screen.
Unlocks by face, card or password with a 2MP dual lens and white and IR fill light.
Stores 1,500 faces and works without network, with 99.5% accuracy and liveness detection.
Door lock, unlock button and door status connections, plus RS-485, USB 2.0 and Ethernet.
Indoor use, DC 12V 1.5A.

Product Description

Product Specifications

Dahua DHI-ASI3213G-MW - 4.3-Inch Face Recognition Access Control Terminal

The Dahua DHI-ASI3213G-MW (Dahua lists it as a Face Recognition Access Controller) is a 4.3-inch touch screen face recognition biometric access control terminal for indoor use. It unlocks by face, card or password, or a combination, using a 2MP wide-angle dual lens with white and IR fill light. User data is stored on the device, which holds 1,500 face images and works without a network.

Also listed as ASI3213G-MW.

Key features

4.3 inch LCD touch screen, resolution 480 x 272
2MP wide-angle dual lens, white fill light and IR light
Face, card and password unlock, with unlock by period
Holds 1,500 face images and works without network
Face-camera distance 0.3 m to 1.5 m
Face verification accuracy 99.5% and face comparison speed 0.3 s per person, with liveness detection
Anti-passback, tamper, duress, door sensor timeout, illegal intrusion and illegal card exceeding threshold alarms

Technical specification

Model	DHI-ASI3213G-MW
Product type	Face Recognition Access Controller
Display	4.3 inch TFT screen, capacitive touch screen
Screen resolution	480 x 272
Camera	2MP CMOS
Light compensation	Auto white light fill light, auto IR fill light
Voice prompt	Supported
Housing material	PC+ABS
Unlock mode	Card, password and face unlock; card, password and face combination unlock
Card reader type	IC card
Face-camera distance	0.3 m-1.5 m
Face verification accuracy	99.5%
Face recognition speed	0.3 s
Capacity	1,500 users, 1,500 faces, 1,500 cards, 1,500 passwords, 150,000 storage records
Network protocol	IPv4, RTSP, RTP, TCP, UDP, P2P
Ports	1 RS-485, 1 USB 2.0, 1 10/100 Mbps Ethernet
Alarm input and linkage	1 alarm input; alarm linkage supported
Unlock button, door status detection, door lock control	1 each
Peripheral card reader	1 RS-485
Power supply and consumption	DC 12V 1.5A; 18 W
Dimensions	116 mm x 107 mm x 22 mm
Operating temperature and humidity	-10°C to +55°C; 5%RH-95%RH (non-condensing)
Environment and installation	Indoor; desktop and wall mount
Certifications	CE/FCC

Works with

Zenith lists these Dahua MIFARE cards and key fobs for IC card use:

Dahua IC-S50 - MIFARE S50 13.56MHz access control card
Dahua IC-SM - MIFARE key fob

Common questions

Does it work without a network connection?

Yes. Dahua says user data can be stored at the access controller, which holds 1,500 face images and works without network.

Which unlock methods does it support?

Face, card and password unlock, and combinations of card, password and face, with unlock by period.

How close does a face need to be?

The face-camera distance is 0.3 m to 1.5 m.

Can it connect to a door lock?

It has 1 door lock control, 1 unlock button and 1 door status detection connection, plus 1 RS-485 for a peripheral card reader.

Can I use it outdoors?

No. The working environment is indoor, from -10°C to +55°C.

How is it powered?

DC 12V 1.5A, with power consumption of 18 W.

Full manufacturer specification: Dahua product page
