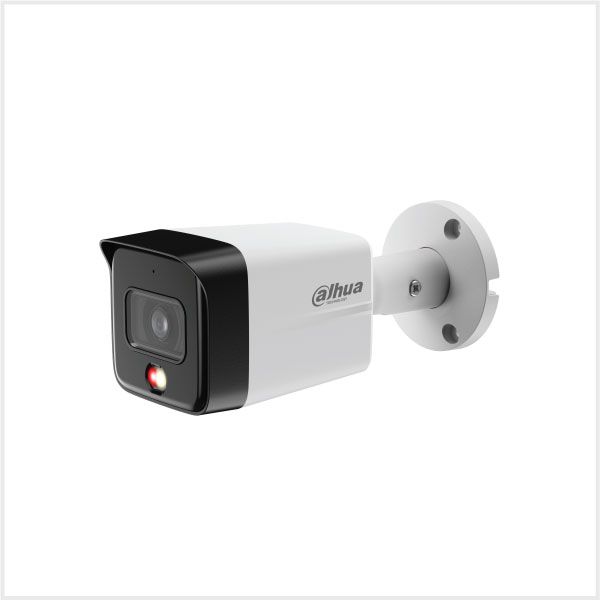

Dahua DH-IPC-HFW1639TCP-A-IL-0280B-S6 - 6MP 3K Smart Dual Light Bullet IP CCTV Camera
Product Features
- Dahua DH-IPC-HFW1639TCP-A-IL-0280B-S6 is a 6MP 3K Smart Dual Light bullet IP CCTV camera, a waterproof outdoor security camera with a 2.8mm fixed lens.
- One multi-core light gives infrared night vision up to 30m and warm light up to 30m.
- Human detection filters out alarms triggered by non-human targets.
- Built-in microphone, 12V DC or PoE (802.3af) power, and IP67 protection.
- Colour: white · Horizontal field of view: 110° (2.8 mm lens)
Dahua DH-IPC-HFW1639TCP-A-IL-0280B-S6
The Dahua DH-IPC-HFW1639TCP-A-IL-0280B-S6 (IPC-HFW1639TCP-A-IL-0280B-S6 without the DH- prefix) is a 6MP 3K Smart Dual Light bullet IP CCTV camera with a fixed 2.8mm lens. Dahua lists the family as DH-IPC-HFW1639TC-A-IL, a 6MP Entry Smart Dual Light fixed-focal bullet network camera. One multi-core light provides IR for night vision and warm light, and the camera has human detection, a built-in microphone, PoE and an IP67 rating. That IP67 rating means it can be mounted outdoors, with infrared night vision up to 30m. See our Smart Dual Light guide for how Smart Dual Light works.
Also listed as IPC-HFW1639TCP-A-IL-0280B-S6.
Key features
- 6MP (3200 x 1800) at up to 20 fps from a 1/2.7-inch CMOS sensor, with 2688 x 1520 at 25/30 fps.
- Smart Dual Light: the IR illuminator is normally on at night; when a target appears the light switches on and the camera records full-colour video, then returns to IR when the target leaves.
- Built-in multi-core light with IR up to 30m and warm light up to 30m.
- Human detection filters out alarms triggered by non-human targets.
- Built-in microphone.
- Smart H.265+ and Smart H.264+ encoding, DWDR, 3D NR, HLC and BLC.
- 12V DC or PoE (802.3af) power, in an IP67 metal housing.
Technical specification
| Model | DH-IPC-HFW1639TCP-A-IL-0280B-S6 (Dahua datasheet family DH-IPC-HFW1639TC-A-IL, 1639-S6 series) |
|---|---|
| Camera type | 6MP Entry Smart Dual Light fixed-focal bullet network camera |
| Image sensor | 1/2.7 inch CMOS |
| Max. resolution | 3200 x 1800 (6MP) |
| Frame rate | Main stream 3200 x 1800 at 1-20 fps; 2688 x 1520 at 1-25/30 fps |
| Video compression | H.265, H.264, H.264H, H.264B, MJPEG (sub stream only); Smart H.265+, Smart H.264+ |
| Streams | 2 streams |
| Lens | 2.8mm fixed-focal, M12 mount, F1.6 |
| Field of view | Horizontal 110 degrees, vertical 58 degrees, diagonal 132 degrees |
| Min. illumination | 0.007 lux at F1.6 (colour), 0.0007 lux at F1.6 (B/W), 0 lux (illuminator on) |
| Illumination distance | Up to 30m IR, up to 30m warm light (1 multi-core light) |
| Day/night and WDR | Auto (ICR) / Colour / B/W; DWDR |
| Intelligence | Human detection, Smart Dual Light |
| Audio | Built-in microphone; G.711a, G.711Mu, PCM, G.726 |
| Network | RJ-45 (10/100 Base-T), ONVIF (Profile S and Profile T) |
| Storage | FTP |
| Power supply | 12 VDC / PoE (802.3af) |
| Power consumption | Basic 2W (12 VDC), 2.9W (PoE); max. 4W (12 VDC), 5.3W (PoE) |
| Operating temperature | -40 to +60 degrees C, 95% RH non-condensing |
| Protection | IP67 |
| Casing and size | Metal, 173.3mm x 70.0mm x 70.0mm, net weight 0.44kg |
DORI distances
DORI (Detect, Observe, Recognise, Identify) distances to EN 62676-4, from Dahua's datasheet. They do not reflect intelligent function distances.
| Lens | Detect | Observe | Recognise | Identify |
|---|---|---|---|---|
| 2.8mm | 63.6m | 25.4m | 12.7m | 6.4m |
Works with
Optional accessories that Dahua's datasheet lists for this model and that are listed on our site:
- DH-PFA130-E junction box
- DH-PFA134 junction box
- DH-PFA151 corner mount bracket
- DH-PFA152-E pole mount bracket
Common questions
What is Smart Dual Light?
Dahua's Smart Dual Light normally keeps the IR illuminator on at night. When a target appears the light switches on and the camera records full-colour video, and when the target leaves the light goes off and IR resumes. Read our Smart Dual Light guide for more.
How far do the lights reach?
Dahua gives up to 30m for IR and up to 30m for warm light on the one multi-core light.
Does it have a microphone?
Yes. Dahua's datasheet lists a built-in microphone.
Can it be powered over PoE?
Yes. It accepts 12 VDC or PoE (802.3af). Dahua quotes 2.9W basic and 5.3W maximum on PoE.
What does human detection do?
It extracts moving human targets from the video and filters out alarms triggered by non-human targets.
Is it an infrared security camera?
Yes. The one multi-core light gives infrared night vision up to 30m. When a target appears the light also switches on as warm light up to 30m.
Is it suitable for outdoor use?
It is rated IP67 (dust-proof, tested after 30 minutes in 1m of water) and operates from -40 to +60 degrees C.
Which lens does it have?
This part number ends 0280B, the 2.8mm lens, with a 110 degree horizontal field of view. Dahua's datasheet also lists a 3.6mm lens for the family.
Browse the full Dahua range or more IP cameras, or contact us on 01902 902251.
Supplied by Zenith Security Co, Wolverhampton. We deliver to England, Scotland and Wales, or you can collect from our Wolverhampton trade counter (please call first).
Browse the range: Dahua IP cameras · all Dahua cameras.
| Product Code | DH-IPC-HFW1639TCP-A-IL-0280B-S6 |
|---|---|
| Brand | Dahua |
| Style | Bullet Cameras |
| Protection Level | IP67 |
| Power Supply | 12V DC, PoE |
| Illumination Distance | Up to 30m |
| Built-in Mic | Yes |
| Illuminator Type | Smart Dual Light |
| Product Type | IP Camera |
| Colour | White |
| Max Resolution | 6MP |
| Min. Illumination | 0.007 lux@F1.6 (Colour, 30 IRE); 0.0007 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) |
| Lens Type | Fixed |
| Lens Size | 2.8 mm |
| Max. IR Range | Up to 30 m |
| Protection Level, Ingress Protection | IP67 |
| Operating Temperature | -40 to 60 deg C |
| Power | 12VDC / PoE (802.3af) |
| Dimensions | 173.3 x 70.0 x 70.0mm |
