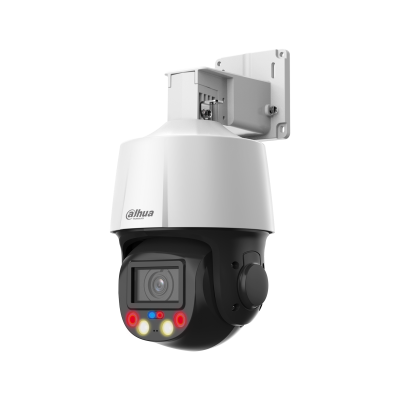

Dahua DH-SD3E405DB-GNY-A-PV1 - 4MP 2K 5x Optical Zoom TiOC WizSense AI PTZ IP CCTV Camera

Dahua DH-SD3E405DB-GNY-A-PV1 - 4MP 2K 5x Optical Zoom TiOC WizSense AI PTZ IP CCTV Camera

The Dahua DH-SD3E405DB-GNY-A-PV1 is a 4MP (2K) pan tilt zoom (PTZ) IP CCTV camera with 5x optical zoom in Dahua's TiOC and WizSense ranges, which Dahua calls a 4MP 5x TiOC WizSense Network PTZ Camera. It pans 0 to 355 degrees and tilts -15 to +90 degrees, has Smart Dual Light with IR night vision up to 50m, siren and light active deterrence, built-in microphone and speaker for two-way talk, and runs on PoE+ (802.3at) or 12 VDC with IP66 protection.

Also listed as SD3E405DB-GNY-A-PV1.

Key features

• 1/2.8" 4MP CMOS sensor, up to 2560 x 1440 at 25/30fps, with a 2.7mm to 13.5mm lens giving 5x optical zoom.
• Smart Dual Light: IR illuminator up to 50m, with the light switching on up to 30m when a target appears so the camera records full-colour video.
• TiOC siren and light active deterrence: red and blue light warning and 11 sound alarms, with up to 10 custom sounds.
• WizSense AI: perimeter protection and SMD 3.0 with human and vehicle classification, plus face detection and auto tracking Lite, which makes it an auto tracking camera.
• Built-in microphone and speaker for two-way talk.
• 300 presets and 8 tours, with pan 0.1 to 36 degrees per second manually.
• Micro SD slot up to 512GB, 1 alarm in and 1 alarm out, 1 audio in and 1 audio out.
• IP66 and TVS 6000V lightning, surge and voltage transient protection; -30 to +60 degrees C operation.

Technical specification

How far it can see (Dahua DORI figures)

Works with

• Dahua PFA121 junction box
• Dahua PFA152-E pole mount bracket
• Dahua PFM900-E-V2 integrated mount tester

Common questions

What does 5x optical zoom mean in practice?

The 2.7mm to 13.5mm lens zooms optically up to 5 times, taking the horizontal angle of view from 94.9 to 30.1 degrees, so an operator can move from a wide overview to a close-up from one mounting point.

What does TiOC mean?

TiOC is Dahua's active deterrence camera range. On this model Dahua lists red and blue light warning and sound alarms when a perimeter event occurs. Read more in our TiOC guide.

Can this camera tell the difference between a person and a vehicle?

Yes. Dahua lists vehicle and human alarm classification in its perimeter protection and SMD 3.0, which helps filter out false alarms from animals and leaves. See our WizSense guide.

How far does the night vision reach?

Dahua lists IR up to 50m and warm light up to 30m. See our Smart Dual Light guide for how the lights work.

Does it need PoE+?

Dahua lists PoE+ (802.3at) or a 12 VDC, 2A supply. Basic power draw is 4.5W and the maximum is 15W with the illuminator, PTZ, speaker and heating glass running.

Can it talk and listen?

Yes. It has a built-in microphone and speaker for two-way talk through the mobile app.

Is it suitable for outdoor use?

Dahua rates it IP66 with TVS 6000V protection against lightning, surge and voltage transients, and lists an operating range of -30 to +60 degrees C, so it can be mounted outdoors.

Full manufacturer specification: Dahua product page

Browse the full Dahua range, more IP cameras, NVRs, or contact us on 01902 902251 or visit our Wolverhampton trade counter for advice.

Download the Dahua DH-SD3E405DB-GNY-A-PV1 datasheet (PDF).
