Dahua DH-HAC-HDW1500TLMQP-A-0280B-S2 — 5MP HDCVI Eyeball Camera

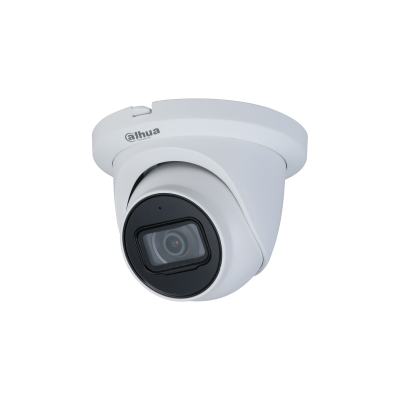

The Dahua DH-HAC-HDW1500TLMQP-A-0280B-S2 is a 5MP HDCVI eyeball camera with a fixed 2.8mm lens, Smart IR up to 30m and an IP67-rated housing for indoor or outdoor use.

Also listed as HAC-HDW1500TLMQP-A-0280B-S2.

Key features

• Infrared camera: Smart IR night vision up to 30m, with a 5MP (16:9) picture and a fixed 2.8mm lens.
• HDCVI analogue CCTV camera with a single BNC video output, so it connects to a Dahua XVR over coax as a BNC camera.
• Dahua lists the video output as switchable to AHD, so it can also be used as an AHD camera.
• Wide dynamic range camera: DWDR (digital wide dynamic range) for strong backlight scenes, with 2D noise reduction.

Who is HDCVI for?

HDCVI sends HD video over standard coax — ideal for upgrading an existing coax-cabled analogue system without rewiring, and for very long cable runs where the 100m IP limit is a problem.

Key specification

What you will need

• A Dahua XVR recorder. HDCVI cameras need an HDCVI-capable recorder. Dahua's Penta-brid XVRs accept HDCVI, AHD, TVI, CVBS analogue and IP on the same box, so you can mix old and new cameras while you upgrade in stages. See our DVRs and XVRs.
• RG59 coax and 12V power to each camera. Pre-made shotgun cable carries both in one run and is the quickest way to install.
• A multi-way 12V power supply if you are running several cameras — the recorder does not power them, unlike PoE on an IP system.

Frequently asked questions

Will this camera work with my existing recorder?

Only if the recorder supports HDCVI. Most Dahua XVRs auto-detect the camera type per channel. Tell us your recorder model and we will confirm.

Can I mix it with my existing analogue cameras?

Yes — a Penta-brid XVR takes analogue and HD cameras on different channels at the same time, so you can replace cameras gradually.

How far can I run the cable?

HDCVI runs much further than IP over standard RG59 coax, well beyond the 100m limit that applies to network cable, making it a good fit for long cable runs.
