Dahua DH-IPC-HDW1639TP-A-IL-0280B-S6-Black - 6MP 3K Smart Dual Light Eyeball PoE IP CCTV Camera

Dahua DH-IPC-HDW1639TP-A-IL-0280B-S6-Black - 6MP 3K IR Night Vision PoE Smart Dual Light Turret IP CCTV Camera

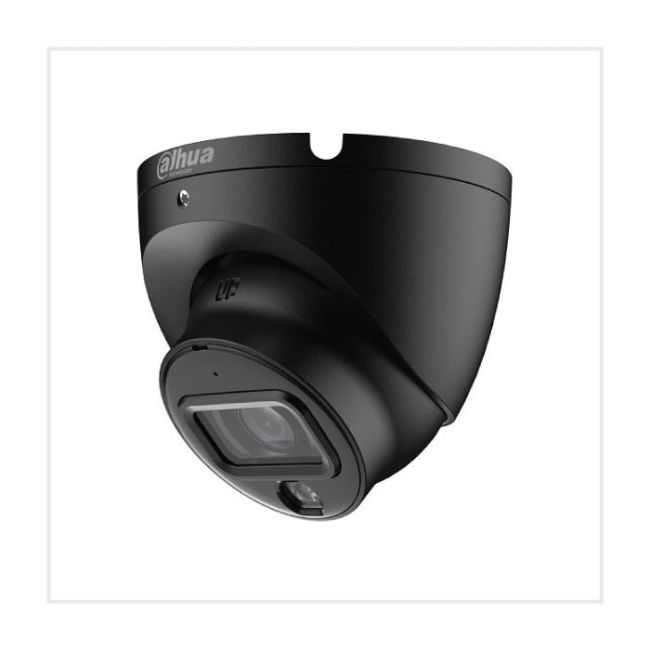

The Dahua DH-IPC-HDW1639TP-A-IL-0280B-S6-Black is a black 6MP eyeball IP camera from Dahua's Entry series, built to the 1639-S6 revision. Its 1/2.7 inch sensor records 3200 x 1800 at up to 20fps, or 2688 x 1520 at 25/30fps, through a fixed 2.8mm lens with a 110 degree horizontal view.

A built-in multi-core light gives IR up to 30m and warm light up to 30m. With Smart Dual Light the IR is normally on at night, and the warm light comes on when a target appears so the event is recorded in colour. Human detection filters out alarms from non-human targets, and a built-in microphone records audio.

Dahua's S6 datasheet lists no Micro SD slot, so the camera is meant to record to an NVR, which can be a Dahua recorder or one that supports ONVIF Profile S or T. Power is 12V DC or PoE (802.3af), with a maximum of 5.3W on PoE, and it is IP67 rated for -40 to +60 degrees C.

Also listed as IPC-HDW1639TP-A-IL-0280B-S6-Black.

Without the lens and colour codes the model is written IPC-HDW1639TP-A-IL-S6.

Key features

• 1/2.7" CMOS sensor with a maximum of 6MP (3200 x 1800) at 20fps, and 2688 x 1520 at 25/30fps.
• Smart Dual Light: the IR illuminator is normally on at night, and when a target appears the camera switches light and records full-colour video of the event.
• Built-in multi-core light with up to 30m IR distance and up to 30m warm light distance.
• H.265 coding with Smart H.265+ and Smart H.264+, ROI and flexible coding to suit different bandwidth and storage.
• Human detection, which filters out alarms triggered by non-human targets.
• Built-in microphone, DWDR, 3D noise reduction, HLC, BLC and digital watermarking.
• 12 VDC or PoE (802.3af) power, IP67 protection and -40 to +60 degrees C operation.
• Image flip by 90, 180 or 270 degrees for narrow and long scenes.

Technical specification

How far it can see (Dahua DORI figures, 2.8mm lens)

Works with

• Dahua DH-PFB220C ceiling mount bracket
• Dahua DH-PFA106 mount adapter
• Dahua DH-PFA151 corner mount bracket
• Dahua DH-PFA152-E pole mount bracket
• Dahua PFA150 pole mount bracket
• Dahua PFB204W wall mount bracket
• Dahua PFB305W wall mount bracket
• Dahua DH-PFA13A-E junction box
• The version without the Black suffix (DH-IPC-HDW1639TP-A-IL-0280B-S6)
• Dahua DHI-NVR4104HS-P-EI 4 Channel PoE NVR: a compact Dahua WizSense NVR with 4 PoE ports to power and record the camera
• Dahua DH-PFS3110-8ET-96-V2 PoE Switch: 8 PoE ports for cameras that draw up to 5.3W each

Pairings are suggested on general compatibility (same brand, matching connection type and specification), not as tested combinations.

Common questions

Is this a 6MP or a 3K camera?

Both. Dahua lists a maximum of 6MP (3200 x 1800) at 20fps, which is the 3K class. It can also stream 2688 x 1520 (4MP) at up to 25/30fps.

What is Smart Dual Light?

Dahua's Smart Dual Light keeps the IR illuminator on at night and switches light when a target appears, so the camera records full-colour video of key events. Read more in our Smart Dual Light guide.

How far does the night vision reach?

Dahua lists up to 30m for the IR and up to 30m for the warm light.

Is the lens fixed or varifocal?

It is a fixed 2.8mm lens with a horizontal angle of view of 110 degrees. Dahua also lists a 3.6mm version, which has a different model number.

Can it be powered over PoE?

Yes. Dahua lists 12 VDC or PoE (802.3af), with a basic power draw of 2.9W and a maximum of 5.3W on PoE.

Is it suitable for outdoor use?

Dahua rates it IP67 with an operating range of -40 to +60 degrees C.

Is it a CCTV camera with audio?

Yes. It has a built-in microphone and supports G.711a, G.711Mu, PCM and G.726 audio.

Does it detect people?

Yes. Dahua lists human detection, which classifies and detects human targets and filters out alarms from non-human targets.

Does the DH-IPC-HDW1639TP-A-IL-0280B-S6-Black have a memory card slot?

No. Dahua's S6 datasheet lists FTP as the camera's storage option and does not list a Micro SD card slot, so footage is normally recorded on an NVR.

Can it be used with a third-party ONVIF recorder?

Dahua lists ONVIF Profile S and Profile T, so it can be added to recorders that support those profiles. Smart Search, which refines event searches, works together with a Dahua Smart NVR.

Can I view it on my phone?

Yes. Dahua lists iOS and Android mobile clients, with DMSS as the app, and Smart PSS Lite and DSS for viewing on a computer.
