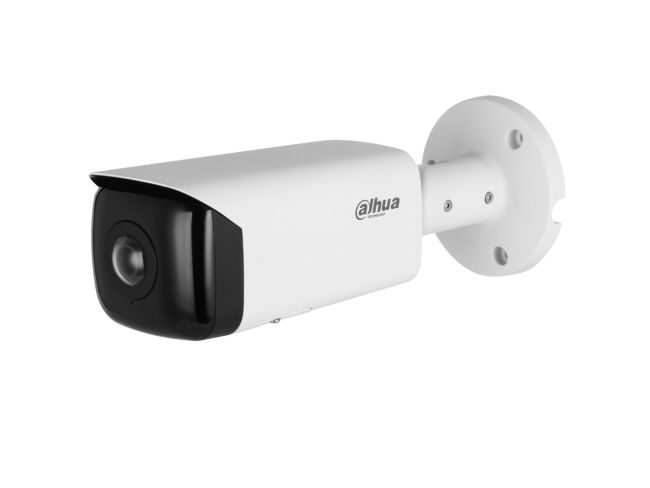

Dahua DH-IPC-HFW3441T-AS-P - 4MP 180 Degree Wide Angle WizSense Bullet IP CCTV Camera, 2.1mm, IR Night Vision, Built-in Mic, IP67
Product Features
- Dahua DH-IPC-HFW3441T-AS-P is a 4MP WizSense AI bullet IP CCTV camera with a 2.1 mm lens giving a 180° wide angle view.
- IR night vision up to 20 m.
- Intrusion and tripwire with human and vehicle classification, SMD and Quick Pick.
- Built-in mic, audio and alarm I/O, Micro SD up to 256 GB.
- IP67 metal housing, PoE or 12 VDC.
Dahua DH-IPC-HFW3441T-AS-P — 4MP 180 Degree Wide Angle WizSense Bullet IP CCTV Camera
The Dahua DH-IPC-HFW3441T-AS-P (also written IPC-HFW3441T-AS-P) is a 4MP WizSense bullet IP CCTV camera with a fixed 2.1 mm lens that covers a 180° horizontal view (170° with lens distortion correction on, the default). It has IR night vision up to 20 m, human and vehicle classification for intrusion and tripwire, a built-in microphone, and an IP67 metal housing, powered by PoE or 12 VDC. Suited to wide frontages, yards and car parks where one camera has to cover a wide area. Our guide to Dahua WizSense cameras explains the range.
Key features
- 1/2.7" CMOS; main stream up to 2880 × 1620 at 20 fps or 2688 × 1520 at 25/30 fps.
- Fixed 2.1 mm lens (F2.0): horizontal 180° with LDC disabled, 170° with LDC enabled (default).
- IR night vision up to 20 m from 2 IR LEDs; 0 lux with illuminator on.
- IVS perimeter protection: intrusion and tripwire with human and vehicle classification; SMD; Quick Pick with an AI NVR.
- 120 dB WDR, 3D NR, Smart H.265+ and AI coding.
- Built-in mic, 1 audio in/out, 1 alarm in/out; Micro SD up to 256 GB.
- IP67 metal housing; 12 VDC or PoE.
Technical specification
| Model | DH-IPC-HFW3441T-AS-P |
|---|---|
| Series | WizSense 3, IR |
| Image sensor | 1/2.7" CMOS |
| Max. resolution | 2880 (H) × 1620 (V) |
| Frame rate | Main stream 2880 × 1620 at 1-20 fps / 2688 × 1520 at 1-25/30 fps; sub stream 704 × 576 at 1-25 fps; third stream 1920 × 1080 at 1-25/30 fps |
| Lens | Fixed-focal 2.1 mm, M12 mount, F2.0 |
| Field of view | LDC disabled: H 180°, V 78°, D 180°; LDC enabled (default): H 170°, V 75°, D 175° |
| Min. illumination | 0.01 lux at F2.0 (colour, 30 IRE); 0.001 lux at F2.0 (B/W, 30 IRE); 0 lux with illuminator on |
| Illumination | IR up to 20 m (2 IR LEDs), auto control |
| WDR | 120 dB |
| Video compression | H.265; H.264; H.264B; MJPEG (sub stream only); Smart H.265+ and Smart H.264+; AI H.265 and AI H.264 |
| Intelligence | Intrusion and tripwire with human and vehicle classification; SMD; Quick Pick; Smart Search with Smart NVR |
| Audio | Built-in mic; 1 audio input, 1 audio output (RCA) |
| Alarm | 1 input (5 mA 3-5 VDC); 1 output (1,000 mA 30 VDC / 500 mA 50 VDC) |
| Storage | Micro SD up to 256 GB; FTP, SFTP, NAS |
| Network | RJ-45 10/100 Base-T; ONVIF Profile S, G and T |
| Power supply | 12 VDC / PoE |
| Power consumption | Basic 3.1 W (12 VDC), 5.3 W (PoE); max 4 W (12 VDC), 6.5 W (PoE) |
| Operating conditions | -40 °C to +60 °C; less than 95% RH |
| Protection | IP67 |
| Casing / dimensions / weight | Metal; 249.3 × 90.7 × 90.4 mm; 820 g net |
Works with
- Dahua DH-PFA151 corner mount bracket
- Dahua DH-PFA152-E pole mount bracket
- Dahua DH-PFM900-E-V2 integrated mount tester
- The dome version (DH-IPC-HDBW3441R-AS-P)
Common questions
How wide is the view?
Dahua lists 180° horizontal with lens distortion correction (LDC) disabled and 170° with LDC enabled, which is the default.
Does it see at night?
Yes. It has 2 IR LEDs reaching up to 20 m and works at 0 lux with the illuminator on. Night video is black and white.
What does WizSense mean?
WizSense is Dahua's AI range focused on humans and vehicles. This model classifies humans and vehicles for intrusion and tripwire rules. See our WizSense guide.
Is it waterproof?
Yes. Dahua lists IP67 for the metal housing, with an operating range of -40 °C to +60 °C.
How is it powered, and will it work with other recorders?
It runs on 12 VDC or PoE and supports ONVIF Profile S, G and T.
Full manufacturer specification: Dahua product page
Supplied by Zenith Security Co, Wolverhampton. Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales, or collect from our Wolverhampton trade counter (please call first).
Browse the full Dahua range, more IP cameras, or contact us on 01902 902251 or visit our Wolverhampton trade counter for advice.
| Product Code | DH-IPC-HFW3441T-AS-P |
|---|---|
| Manufacturer | Dahua |
| AI Function | SMD 4.0, AcuPick |
| Protection Level | IP67 |
| Power Supply | 12V DC, PoE |
| Illumination Distance | Up to 30m |
| WDR | 120dB |
| Built-in Mic | Yes |
| Illuminator Type | IR LED |
| Product Type | IP Camera |
| Colour | Brown |
| Max Resolution | 4MP |
| Lens Type | Fixed |
