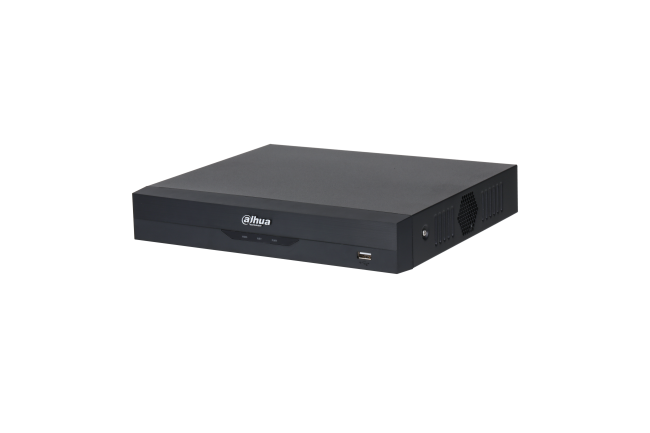

Dahua DH-XVR5108HS-4KL-I3/T - 8 Channel 4K-N/5MP WizSense XVR (Digital Video Recorder) with Two-Way Talk
Product Features
- Dahua DH-XVR5108HS-4KL-I3/T is an 8 channel 4K-N/5MP WizSense XVR CCTV DVR (digital video recorder) with two-way talk over coax.
- Takes HDCVI, AHD, TVI, CVBS and IP cameras, with up to 16 IP channels of up to 8MP.
- On-recorder AI: AcuPick, perimeter protection, face recognition and SMD Plus.
- One SATA port for a hard drive of up to 16TB, with 4K HDMI output and Smart H.265+.
Dahua DH-XVR5108HS-4KL-I3/T — 8 Channel 4K-N/5MP WizSense XVR CCTV DVR with Two-Way Talk
The Dahua DH-XVR5108HS-4KL-I3/T is a compact 8 channel 4K-N/5MP Penta-brid WizSense XVR CCTV DVR (digital video recorder) from Dahua's WizSense range, with one hard drive bay. Its 8 BNC inputs detect HDCVI, AHD, TVI and CVBS cameras automatically, and you can add up to 16 IP channels. It lists 8-channel two-way talk over the coax cable. For the same recorder listed without the /T suffix, see the Dahua DH-XVR5108HS-4KL-I3. See the full range of Dahua Penta-brid recorders and our guide to Dahua Penta-brid recorders.
Also listed as XVR5108HS-4KL-I3/T.
Key features
- 8-channel two-way talk over coaxial cable, for communication between the camera, client and recorder.
- 8-channel AcuPick for analogue channels, which Dahua says improves the efficiency of target retrieval.
- 8-channel perimeter protection for tripwire and intrusion detection, and 4-channel face recognition.
- 8-channel SMD Plus (or 16-channel SMD by camera) for human and vehicle alarms.
- 8-channel AI Coding to save storage and bandwidth while keeping target detail.
- HDCVI, AHD, TVI, CVBS and IP inputs, with up to 16 IP channels of up to 8MP and 128 Mbps incoming bandwidth.
- Supports accessing Wi-Fi cameras, with Smart H.265+ and H.265 dual-stream compression.
- EPTZ, privacy protection and an Enhanced Encoding mode.
- One SATA port for a hard drive of up to 16TB, with HDMI output up to 3840 × 2160.
Technical specification
| Model | DH-XVR5108HS-4KL-I3/T (XVR5108HS-4KL-I3/T) |
|---|---|
| Type | 8CH Penta-brid 4K Value/5MP Compact 1U 1HDD WizSense digital video recorder (XVR) |
| Analogue video input | 8 BNC ports, HDCVI/AHD/TVI/CVBS auto-detect |
| HDCVI input | 4K at 25/30 and 12.5/15 fps; 6MP at 20 fps; 5MP at 25 and 20 fps; 4MP at 25/30 fps; 1080p at 25/30 fps; 720p at 25/30 and 50/60 fps |
| TVI input | 4K at 15 fps; 5MP (2560 x 1944) at 20 fps; 5MP (2960 x 1665) at 20 fps; 4MP and 3MP at 25/30 fps; 1080p and 720p at 25/30 fps |
| AHD input | 4K at 15 fps; 5MP at 20 fps; 4MP and 3MP at 25/30 fps; 1080p and 720p at 25/30 fps |
| IP camera input | Up to 16 channels (8 IP channels by default plus 8 converted analogue channels), each up to 8MP; 128 Mbps incoming, recording and outgoing |
| Main stream (Encode Enhancement off) | First channel 4K at 1-15 fps, others 4K at 1-7 fps; first channel 5MP at 1-25 fps, others 1-12 fps; 4K-N/5MP at 1-15 fps; 1080p/720p/960H/D1/CIF at 1-25/30 fps |
| Video compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264, dual-stream |
| Two-way talk | Coaxial two-way talk on 8 BNC channels; local and network user two-way talk shares the first channel audio input |
| AcuPick | 8 channels |
| Perimeter protection | 8 channels, 10 IVS rules per channel |
| Face recognition | 4 channels; up to 10 face databases with 20,000 images |
| SMD Plus | 8 channels by recorder; 16 channels SMD by camera |
| Other AI functions | EPTZ 1 channel; privacy protection 1 channel; AI video quality analytics 8 channels; scene changing 1 channel; irregular black block masking 1 channel |
| Video output | 1 HDMI up to 3840 × 2160, 1 VGA up to 1920 × 1080 |
| Audio | 1 RCA and 8 BNC (coaxial) in, 1 RCA out; G.711a, G.711u, PCM |
| Storage | 1 SATA port, up to 16TB |
| Network and ports | 1 RJ-45 (10/100/1000 Mbps); 2 USB (1 front USB 2.0, 1 rear USB 3.0); 1 RS-485 |
| Power | 12 VDC, 2 A; under 10 W without HDD |
| Size and weight | 260.0 × 237.8 × 47.6 mm; 1.23 kg net |
| Operating environment | -10°C to +55°C; 10%-90% RH, non-condensing |
| Interoperability | ONVIF 25.06 (Profile T, S, G), CGI, SDK |
Works with
- Dahua DHI-ARB1606 RS485 alarm box, listed by Dahua as an optional accessory.
- Surveillance hard drives for the SATA bay, such as the WD Purple 1TB, WD Purple 4TB or Toshiba S300 2TB. The Hard Drive option on this page also offers a recorder-only choice. Choose a WD Purple or Toshiba S300 drive there to buy it as a DVR with hard drive.
Common questions
How does two-way talk work on this recorder?
Dahua lists 8-channel two-way talk over coaxial cable on this model, allowing communication between the camera, client and recorder. Local and network two-way talk shares the audio input of the first channel.
What is AcuPick?
AcuPick is Dahua's search technology. It uses back-end intelligence to help search through large amounts of video and locate targets with greater precision. This recorder provides it on 8 analogue channels.
Can I mix analogue and IP cameras?
Yes. This CCTV recorder takes 8 IP channels by default and up to 16 when the analogue channels are converted to IP. Dahua states that once IP extension is enabled, EPTZ, video quality analytics, scene changing, face recognition, face detection, perimeter protection, AcuPick and privacy protection cannot be used. Our guide to Dahua Penta-brid recorders explains Penta-brid.
Which AI functions run on the recorder?
AcuPick, perimeter protection, face recognition and SMD Plus run on the recorder itself. Dahua notes face recognition conflicts with SMD Plus and perimeter protection. See our guide to Dahua WizSense.
Does it support Wi-Fi cameras?
Dahua lists support for accessing Wi-Fi cameras on this recorder.
How much storage can I fit?
One SATA port, up to 16TB. Dahua notes the maximum capacity varies with environment temperature.
Full manufacturer specification: Dahua product page
Supplied by Zenith Security Co, Wolverhampton. We deliver to England, Scotland and Wales, or you can collect from our Wolverhampton trade counter (please call first).
Browse the full Dahua range or CCTV recorders. To pair with a recorder, see our HD analogue cameras. Need help choosing? Contact us, call 01902 902251, or visit our Wolverhampton trade counter.
AcuPick search: this model supports Dahua AcuPick. See Dahua AcuPick 2.0 explained for how it works and what's new.
| Product Code | DH-XVR5108HS-4KL-I3/T |
|---|---|
| Manufacturer | Dahua |
| Product Type | XVR |
