Dahua DH-XVR5432L-4KL-I3 - 32 Channel 4K 5MP WizSense Penta-brid Digital Video Recorder (CCTV DVR)
Product Features
- Dahua DH-XVR5432L-4KL-I3 32 channel 4K 5MP WizSense Penta-brid digital video recorder (CCTV DVR).
- 4 SATA bays for a CCTV hard drive, up to 16TB each, plus eSATA, in a 1.5U case.
- Camera recorder: HDCVI, AHD, TVI and CVBS inputs plus up to 64 IP channels.
- On-recorder AI: QuickPick 2.0, face recognition, perimeter protection, SMD Plus.
- 2 HDMI, VGA and CVBS outputs; 16 alarm inputs, 6 alarm outputs.
Dahua DH-XVR5432L-4KL-I3 — 32 Channel 4K 5MP WizSense Penta-brid CCTV DVR

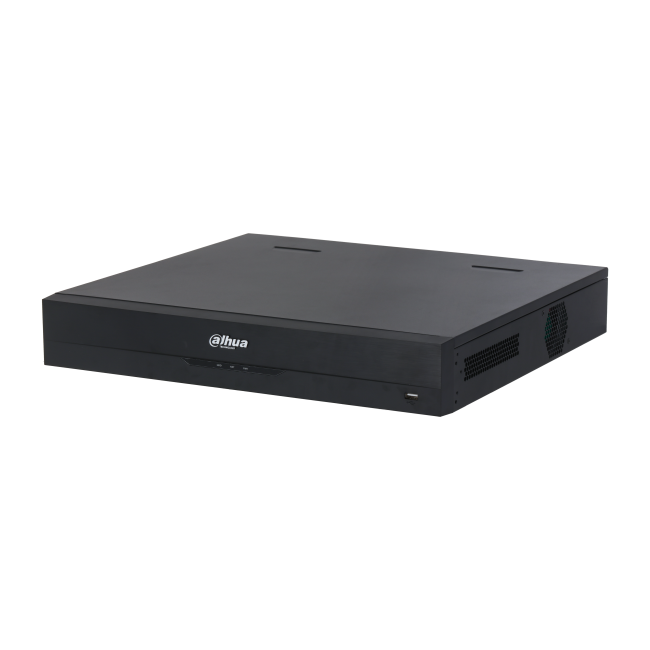

The Dahua DH-XVR5432L-4KL-I3 is a 32 channel 4K 5MP WizSense Penta-brid CCTV DVR: a hybrid XVR video recorder and camera recorder for HDCVI, AHD, TVI, CVBS and IP cameras, in a 1.5U case with four SATA hard drive bays. It records up to 4K@15fps or 5MP@25fps, takes up to 64 IP channels and runs QuickPick 2.0, face recognition, perimeter protection and SMD Plus on the recorder. See more Dahua WizSense products and Dahua Penta-brid recorders.
Also listed as XVR5432L-4KL-I3.
Key features
- 32 BNC ports that auto-detect HDCVI, AHD, TVI and CVBS cameras, plus up to 64 IP channels (32 by default and 32 converted from analogue channels), each up to 12MP.
- Max. encoding 4K@15fps / 5MP@25fps from analogue cameras, with AI Coding and Smart H.265+ compression.
- AI on the recorder: 6-channel QuickPick 2.0, 6-channel face recognition, 12-channel perimeter protection (general mode) and 32-channel SMD Plus for human and vehicle alarms.
- 4 SATA bays, each disk up to 16 TB, plus 1 eSATA port.
- 2 HDMI outputs, 1 VGA output and 1 CVBS output.
- 16 alarm inputs and 6 alarm outputs (5 relay outputs and one 12 V 1 A output).
Technical specification
| Model | DH-XVR5432L-4KL-I3 (Dahua lists this model as XVR5432L-4KL-I3) |
|---|---|
| Dahua description | 32CH Penta-brid 4K Value/5MP 1.5U 4HDDs WizSense Digital Video Recorder |
| Analogue camera input | 32 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
| Analogue formats (Dahua) | CVI: 4K@25/30 fps; 4K@12.5/15 fps; 6 MP@20 fps; 5 MP@25 fps; 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps. TVI: 4K@15 fps; 5 MP(2560 x 1944)@20 fps; 5 MP(2960 x 1665)@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. AHD: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. |
| Max. analogue encoding | 4K@15fps/5MP@25fps |
| IP camera input | Up to 64 channels of IPC access; 32 IP channels by default + 32 channels (analog channels are converted to IP channels); Incoming bandwidth: 256 Mbps, recording bandwidth: 256 Mbps and outgoing bandwidth: 256 Mbps |
| Video compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| QuickPick 2.0 (AI by recorder) | 6 channels |
| Perimeter protection | Advanced mode: 6 channels; general mode: 12 channels; 10 IVS rules for each channel |
| Face detection | 6 channels (up to 12 face images/s each channel) |
| Face recognition | 6 channels; up to 10 face databases with 20,000 images |
| SMD Plus | 32 channels by recorder (secondary filtering for human and vehicle); 64 channels by camera |
| Other AI | 1-channel EPTZ, 1-channel privacy protection, 32-channel AI Coding |
| Video output | 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Two-way talk | 1-channel BNC |
| Storage | 4 SATA ports. Each disk can contain up to 16 TB. This limit varies depending on the environment temperature; 1 eSATA port |
| Alarm input / output | 16 channels in; 6 channels out (5-channel relay output, 1-channel 12 V 1 A output) |
| Network port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| USB | 3 (1 front USB 2.0 port, 2 rear USB 3.0 ports) |
| Interoperability | ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK |
| Power supply | 100–240 VAC, 50±2% Hz |
| Power consumption | Under 30 W without HDD |
| Dimensions | 440.0 mm × 420.2 mm × 76.0 mm (W × D × H) |
| Net weight | 4.90 kg (10.81 lb) |
| Operating temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
Works with
- Dahua DHI-ARB1606 RS485 alarm box (optional accessory)
- Choose a surveillance hard drive from the Hard Drive option on this page, or choose recorder only and fit your own.
Common questions
How is it different from the DH-XVR5432L-I3?
The DH-XVR5432L-I3 is a 5M-N/1080p model. This 4KL version records up to 4K@15fps or 5MP@25fps and takes up to 64 IP cameras at up to 12MP.
What does Penta-brid mean?
Dahua lists HDCVI, AHD, TVI, CVBS and IP video input on this recorder. The 32 BNC ports auto-detect the analogue camera type, and IP cameras can be added on top. Our Penta-brid recorders guide explains the idea.
What does WizSense mean?
Dahua describes WizSense as its series of AI products built on an independent AI chip and deep learning algorithm, focused on humans and vehicles. On this recorder the AI runs on the recorder itself. Read our WizSense guide.
How many IP cameras can I add?
Up to 64 channels: 32 IP channels by default plus 32 converted from analogue channels, each up to 12MP, with 256 Mbps incoming bandwidth. When IP extension is enabled, EPTZ, face recognition, SMD, perimeter protection, QuickPick 2.0 and privacy protection cannot be used.
How many hard drives does it take?
Four SATA drives, each up to 16 TB, plus one eSATA port. To buy this DVR with hard drive, choose a WD Purple or Toshiba S300 surveillance HDD from the Hard Drive option on this page, or choose recorder only and fit your own CCTV hard drive.
Full manufacturer specification: Dahua product page
Supplied by Zenith Security Co, Wolverhampton. We deliver to England, Scotland and Wales, or you can collect from our Wolverhampton trade counter (please call first).
Browse the full Dahua range, more CCTV recorders, or contact us on 01902 902251 or visit our Wolverhampton trade counter for advice.
See also: Dahua DHI-XVR5432L.
Build a complete CCTV kit: add this to a full system in our CCTV kit builder. Pick your cameras and we match the recorder, hard drive, PoE or power and cables, with live prices and stock.
