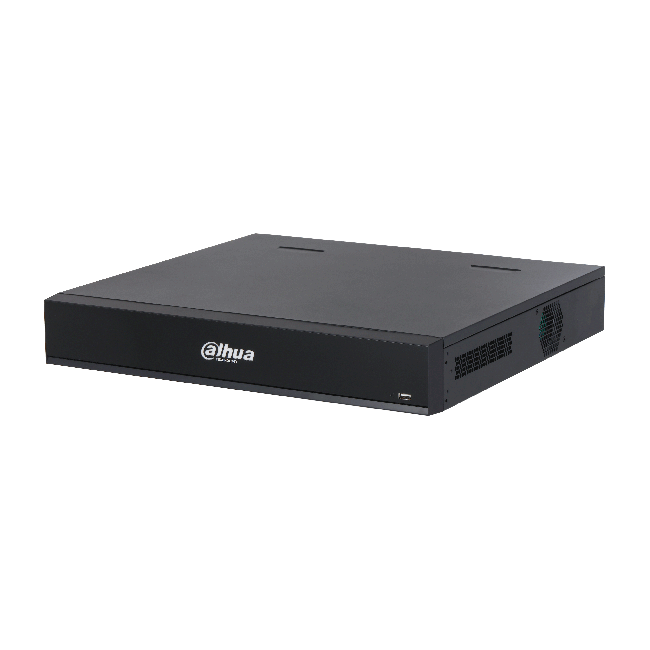

Dahua DH-XVR7416L-4K-I3 - 16 Channel Penta-brid 4K WizSense XVR

Name: Dahua DH-XVR7416L-4K-I3 - 16 Channel Penta-brid 4K WizSense XVR
Brand: Dahua
SKU: DH-XVR7416L-4K-I3
Price: 921.62 GBP
Availability: InStock

£921.62 £768.02

In stock

SKU

DH-XVR7416L-4K-I3

Product Features

Dahua DH-XVR7416L-4K-I3 is a 16 channel Penta-brid 4K WizSense CCTV DVR, a digital video recorder in a 1.5U case with 4 HDD bays.
Choose a DVR with hard drive or recorder only from the Hard Drive option.
16 BNC inputs auto-detect HDCVI, AHD, TVI and CVBS, plus up to 32 IP channels at up to 12MP.
AI by recorder: 16-channel SMD Plus, 12-channel perimeter protection, 6-channel face recognition.

Hard Drive

Qty

Product Description

Product Specifications

Dahua DH-XVR7416L-4K-I3 - 16 Channel Penta-brid 4K WizSense XVR CCTV DVR

The Dahua DH-XVR7416L-4K-I3 (Dahua lists it as XVR7416L-4K-I3) is a 16 channel Penta-brid 4K CCTV recorder and hybrid DVR in a 1.5U case with 4 HDD bays, from Dahua's WizSense range. Its 16 BNC inputs auto-detect HDCVI, AHD, TVI and CVBS cameras, so it records from analogue CCTV cameras as well as IP cameras, and it takes up to 32 IP channels at up to 12 MP each. See the full range of Dahua Penta-brid recorders. Dahua's ordering description is 16CH Penta-brid 4K 1.5U 4HDDs WizSense Digital Video Recorder.

Also listed as XVR7416L-4K-I3.

Key features

16 BNC inputs with HDCVI, AHD, TVI and CVBS auto-detect, plus up to 32 IP channels (up to 12 MP each, 128 Mbps incoming bandwidth)
4K HDCVI input (up to 25/30 fps) and dual HDMI output (HDMI 1 up to 3840 x 2160)
WizSense AI by recorder: 16-channel SMD Plus (32-channel SMD by camera) to filter motion alarms for humans and vehicles
12-channel perimeter protection, 6-channel face recognition and 6-channel QuickPick 2.0 for analogue channels
1-channel Privacy Protection (face masking) and 1-channel EPTZ
16-channel AI Coding and Smart H.265+ to save storage and bandwidth
4 SATA ports, each disk up to 16 TB, plus 1 eSATA
16 alarm inputs and 6 alarm outputs

Technical specification

Model	DH-XVR7416L-4K-I3
Dahua description	16CH Penta-brid 4K 1.5U 4HDDs WizSense Digital Video Recorder
Analogue camera input	16 BNC ports, HDCVI/AHD/TVI/CVBS auto-detect
Analogue formats	HDCVI: 4K@25/30 and 12.5/15 fps, 6 MP@20 fps, 5 MP@25/20 fps, 4 MP@25/30 fps, 1080p@25/30 fps, 720p@25/30/50/60 fps. TVI: 4K@15 fps, 5 MP@20 fps, 4 MP and 3 MP@25/30 fps, 1080p and 720p@25/30 fps. AHD: 4K@15 fps, 5 MP@20 fps, 4 MP and 3 MP@25/30 fps, 1080p and 720p@25/30 fps
IP camera input	Up to 32 channels (16 IP channels by default plus 16 converted from analogue channels), up to 12 MP each; incoming, recording and outgoing bandwidth 128 Mbps
Encoding capacity	Encode Enhancement off, main stream: 4K up to 15 fps; 6 MP up to 20 fps; 5 MP/4K-N/4 MP/3 MP/1080p up to 25/30 fps. With Encode Enhancement on, channels 1, 5, 9 and 13 can record 4K up to 30 fps
Video compression	AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
AI by recorder	QuickPick 2.0: 6 channels; perimeter protection: 12 channels (general mode); face recognition: 6 channels; SMD Plus: 16 channels (32 channels by camera); privacy protection: 1 channel; EPTZ: 1 channel
Face database	Up to 10 face databases with 20,000 images
Video output	2 HDMI, 1 VGA, 1 CVBS; HDMI 1 up to 3840 x 2160, VGA/HDMI 2 up to 1920 x 1080
Storage	4 SATA ports, each disk up to 16 TB (limit varies with environment temperature); 1 eSATA
Alarm input / output	16 channels / 6 channels
Audio	Input: 4-channel BNC and 16-channel BNC (coaxial audio); output: 1-channel BNC; two-way talk: 1-channel BNC
Interfaces	1 RS-232, 1 RS-485, 3 USB (1 front USB 2.0, 2 rear USB 3.0), 1 network port (10/100/1000 Mbps RJ-45)
Interoperability	ONVIF 24.06 (Profile T, Profile S, Profile G); CGI; SDK; third-party camera access: Panasonic, Sony, Hanwha, Axis, Arecont, ONVIF
Power supply	100-240 VAC, 50 Hz plus or minus 2%
Power consumption	Under 30 W (without HDD)
Dimensions (W x D x H)	440.0 x 415.7 x 76.0 mm (1.5U)
Net weight	4.9 kg (10.80 lb)
Operating conditions	-10 °C to +55 °C; 10%-90% RH, non-condensing
Certifications	CE (LVD EN 60950-1/IEC 60950-1; EMC EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024); FCC Part 15 Subpart B

Works with

Dahua DHI-ARB1606 alarm box (optional accessory listed in Dahua's datasheet)
Surveillance hard drives: choose one from the Hard Drive option on this page, or order the recorder without a drive

Other Dahua recorders: DH-XVR7216AN-4K-I3 (16 channel, 1U), DH-XVR5432L-I3 (32 channel), DH-XVR5216AN-4KL-I3.

Common questions

What does Penta-brid mean on this recorder?

It accepts HDCVI, AHD, TVI, CVBS and IP video inputs. The 16 BNC ports auto-detect the analogue format and IP cameras can be added on top. See Dahua Penta-brid recorders explained and Dahua HDCVI explained.

What is the difference between 4K and 4KL (4K-N) Dahua DVRs?

This 4K model records main stream 4K up to 15 fps on the analogue channels (up to 30 fps on channels 1, 5, 9 and 13 with Encode Enhancement on). The datasheet lists 5 MP, 4K-N, 4 MP, 3 MP and 1080p up to 25/30 fps.

How many IP cameras can it take?

16 IP channels by default and up to 32 when the analogue channels are converted to IP. Each can be up to 12 MP, with 128 Mbps incoming bandwidth. Once IP extension is enabled, EPTZ, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection, QuickPick 2.0 and Privacy Protection cannot be used.

What does WizSense mean on this recorder?

Dahua describes WizSense as a series of AI products using an independent AI chip and deep learning, focused on humans and vehicles. This model has 16-channel SMD Plus and 6-channel face recognition. See Dahua WizSense explained.

Can it run two monitors?

Yes. It has 2 HDMI outputs plus VGA and CVBS. HDMI 1 supports up to 3840 x 2160; VGA and HDMI 2 support up to 1920 x 1080.

Does it come with hard drives?

The recorder has 4 SATA ports (each disk up to 16 TB). Choose a surveillance hard drive from the Hard Drive option on this page to order a DVR with hard drive, or order the recorder only.

Full manufacturer specification: Dahua product page
