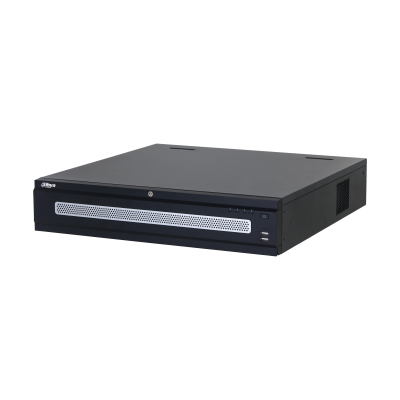

Dahua DHI-NVR608H-32-XI - 32 Channel 8-Bay AI Network Video Recorder
Product Features
- 32-channel NVR supporting IP cameras up to 32MP resolution
- 8 hot-swappable HDD bays, each supporting up to 20TB storage
- Max. 1280/1280/1024 Mbps incoming/recording/outgoing bandwidth
- AI by recorder: 8-ch face detection & recognition, 32-ch SMD, 32-ch perimeter protection
- RAID 0/1/5/6/10, N+M cluster, iSCSI support
Dahua DHI-NVR608H-32-XI — 32-Channel Network Video Recorder
The Dahua DHI-NVR608H-32-XI is a high-capacity 32-channel network video recorder built for large, multi-camera installations. It supports IP cameras up to 32 megapixels and can decode up to 40 channels at 1080p@30fps, while eight hot-swappable HDD bays (each up to 20TB) give it the storage headroom for long recording retention across a big site.
Who is it for?
This NVR suits larger sites running dozens of cameras from a single recorder — retail chains, warehouses, business parks and multi-building premises — particularly where on-recorder AI analytics (face recognition, perimeter protection, metadata search) and RAID-protected storage are wanted without relying on a separate NVR appliance per building.
Key specification
| Channels | 32 IP channels |
|---|---|
| Max. IP Camera Resolution | Up to 32 MP |
| Decoding Capability | Up to 40 × 1080p @ 30 fps |
| Network Bandwidth | 1280 Mbps incoming / 1280 Mbps recording / 1024 Mbps outgoing |
| Storage | 8 HDD bays, each up to 20TB, hot-swappable |
| RAID Support | RAID 0/1/5/6/10, N+M cluster, iSCSI |
| AI Features | 8-ch face detection & recognition, 8-ch video metadata, 32-ch SMD, 32-ch perimeter protection, up to 32-ch AcuPick |
What you will need
- Hard drives are not included — fit up to 8 x 3.5" HDDs (each up to 20TB) to suit your required recording retention.
- This model's specification sheet does not list built-in PoE ports, so you will likely need a separate PoE switch to power and connect your IP cameras over the network.
- A monitor with HDMI or VGA input is needed for local live view, playback and setup at the recorder itself.
Frequently asked questions
How many cameras can the DHI-NVR608H-32-XI support?
It supports up to 32 IP camera channels, with each channel accepting cameras up to 32 megapixels resolution.
How much storage can I fit?
The recorder has 8 hot-swappable HDD bays, each supporting drives up to 20TB, for up to 160TB of raw internal storage.
Does it support RAID?
Yes — RAID 0, 1, 5, 6 and 10 are supported, along with N+M cluster and iSCSI, for redundancy and resilience on larger deployments.
Does this NVR include AI analytics?
Yes — it includes on-recorder AI including face detection and recognition on 8 channels, video metadata on 8 channels, and SMD (smart motion detection) plus perimeter protection on all 32 channels.
See the full Dahua range or browse all CCTV at Zenith Security. Need advice on sizing storage or PoE switching for this recorder? Contact us on 01902 902251 or visit our Wolverhampton trade counter.
| Product Code | DHI-NVR608H-32-XI |
|---|---|
| Manufacturer | Dahua |
| Max No. of Channels | 32 ch |
