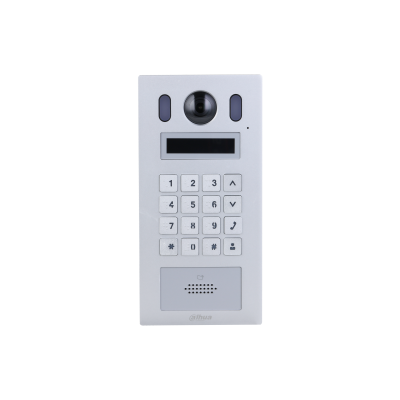

Dahua DHI-VTO6222E-P - 2MP 2-Wire IP Video Intercom Door Station

Name: Dahua DHI-VTO6222E-P - 2MP 2-Wire IP Video Intercom Door Station
Brand: Dahua
SKU: DHI-VTO6222E-P
Price: 259.35 GBP
Availability: InStock

£259.35 £216.12

In stock

SKU

DHI-VTO6222E-P

Product Features

Dahua DHI-VTO6222E-P is a 2MP 2-wire IP video intercom door station and 16-button keypad door entry system for apartments.
For a flat intercom system: 1/2.9-inch CMOS camera, 120 dB WDR, auto white light and a 2.3-inch display.
Unlock by password, IC card (up to 10,000 cards) or remotely, for 5,000 users.
Digital 2-wire or standard PoE, flush or surface mount, IP65 and IK08 aluminium panel.

Product Description

Product Specifications

Dahua DHI-VTO6222E-P - 2MP 2-Wire IP Video Intercom Door Station

The Dahua DHI-VTO6222E-P (VTO6222E-P) is a 2MP 2-wire IP video intercom door station for apartment door entry, with a 2.3" display and a 16-button mechanical keypad. It is a durable aluminium panel with a 2MP camera, 120 dB WDR and auto white light, and doors can be opened by password, IC card or remotely. It runs over Dahua's digital 2-wire system, and it also supports standard PoE. Pair it with a Dahua indoor monitor for each flat to build a video intercom system, or use it as a keypad door entry system and video door entry system for a block of flats.

Also listed as VTO6222E-P.

Who is it for?

Installers upgrading door entry in apartment blocks, HMOs and multi-occupancy buildings that need keypad entry, card access and a tough IK08 panel on the front entrance.

Key features

Highly durable aluminium panel with a mechanical keypad (16 buttons)
2MP HD camera, 1/2.9" CMOS, 120 dB WDR, auto white light
Supports 5,000 users and 10,000 cards
Multiple unlock methods including password, IC card and remote unlock
Connects card readers and controllers through Wiegand
Provides 12 VDC, 600 mA power
IP65 rated (silicone sealant required, see the quick start guide) and IK08 rated
Standard PoE power supply (802.3af/at)

Technical specification

Model	DHI-VTO6222E-P (Dahua UK name: VTO6222E-P)
Product type	2-wire IP apartment door station
Display	2.3" non-touch screen
Keypad	16 mechanical buttons
Camera	1/2.9" 2MP CMOS
Field of view	H 140°, V 80°, D 160°
WDR / noise reduction	120 dB / 3D NR
Video compression	H.264; H.265, 25 fps
Video resolution	Main stream: 720p, WVGA, D1, CIF; sub stream: 1080p, WVGA, D1, QVGA, CIF
Light compensation	Auto white light
Audio	Two-way audio, built-in speaker, echo suppression and digital noise reduction
Communication	Digital 2-wire
Unlock methods	Card; password; remote
Card type / capacity	IC card 13.56 MHz / 10,000 cards (5,000 users)
Card reading distance	0 cm to 3 cm
Ports	RS-485, Wiegand, alarm in, alarm out, 12 V 600 mA power output, door bell, exit button, lock control, 1 x RJ-45 10/100
Power	48 VDC 0.4 A; PoE (802.3af/at)
Power consumption	5 W standby, 7 W working
Installation	Flush mount; surface mount (boxes optional)
Protection	IK08, IP65 (silicone sealant needed, see quick start guide)
Dimensions / gross weight	200 x 98 x 35.4 mm (H x W x D) / 0.657 kg
Colour / casing	Silver, aluminium
Operating temperature	-40 °C to +60 °C, 10% to 90% RH non-condensing

Works with

VTM116-01 flush mounted box (Dahua accessory)
VTM117 surface mounted box (Dahua accessory)
DHI-VTNS2003B-2 2-wire IP switch (Dahua accessory)
DHI-VTNS1001B-2 2-wire IP switch (Dahua accessory)
DHI-VTH5422HW 2-wire IP indoor monitor, 7-inch
Related door station: DHI-VTO6521K-S2 IP video intercom door station with 4.3-inch LCD

What you will need

A flush or surface mounted box
A Dahua 2-wire switch (or a PoE switch)
Dahua indoor monitors for each flat
An electric lock or strike and IC cards if using card entry

Common questions

What can unlock the door?

Password, IC card or remote unlock. The station supports 5,000 users and 10,000 cards.

Does it work over 2-wire cabling?

Yes, it communicates over Dahua digital 2-wire via a 2-wire switch. It also supports standard PoE. Please check your existing cable with us before reusing it.

What cards does it read?

13.56 MHz IC cards, up to 10,000 cards, at a reading distance of 0-3 cm.

Can I add a separate card reader?

Yes, it has a Wiegand port for connecting card readers and controllers.

Is it suitable for a flat intercom system?

Yes. Dahua lists it as an apartment door station, so it suits a flat intercom system in an apartment block, with a Dahua indoor monitor for each flat.

Is it weatherproof?

It is rated IP65 (silicone sealant is needed, see the quick start guide) and IK08, and operates from -40 °C to +60 °C.

Full manufacturer specification: Dahua product page

Download the Dahua DHI-VTO6222E-P datasheet (PDF).
