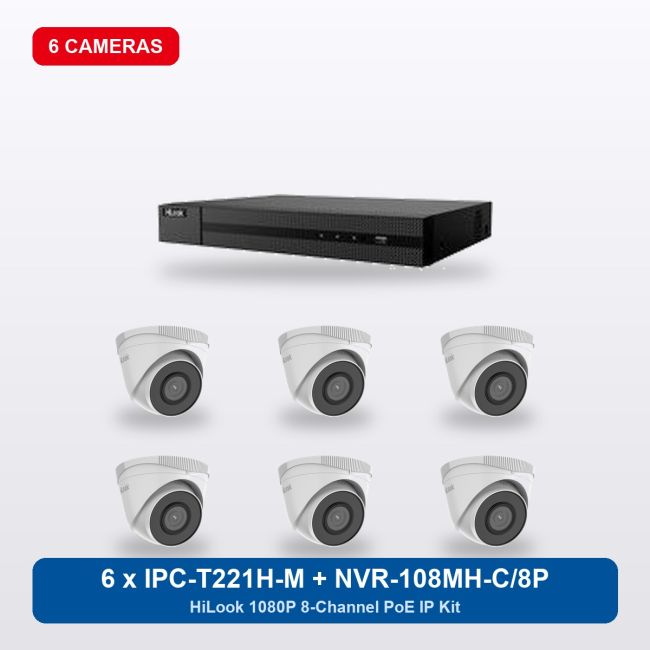

HiLook by Hikvision 1080P 8Ch IP Kit with 6 x IPC-T221H-M 30m IR Turret Cameras
Product Features
What’s included
- 1 x NVR-108MH-C/8P
- 6 x IPC-T221H-M
Optional
Plug and Play Kit
- 6 x Cat5e 20m Ready Made Cable
Main Camera Features:
- 2 MP resolution
- 2.8 mm fixed lens
- Infrared night vision up to 30m (black and white)
- H.265+/H.265/H.264+/H.264, DWDR, 3D DNR, BLC
- Powered by PoE from the NVR
NVR Features
- 8-channel IP recorder with 8 built-in PoE ports
- Plug and play: cameras are found and added automatically
- 8-ch @ 1080p (records up to 8MP) decoding; 80 Mbps incoming bandwidth
- H.265+/H.265/H.264+/H.264 compression
- HDMI/VGA output, 1 SATA interface
- Remote viewing with the free HiLookVision or Hik-Connect app
Who is this 1080P IP kit for?
A complete wired IP system: the NVR-108MH-C/8P 8-channel PoE NVR with 6 x IPC-T221H-M 2MP turret cameras. One Cat5e/Cat6 cable per camera carries both power and video, so there are no camera power supplies to fit. It suits houses, shops, offices and small commercial sites, and leaves 2 channels free to add cameras later. Already have coax cabling? An HD-TVI kit can reuse it.
What you’ll need with it
- A surveillance-grade hard drive — choose one from the options and we fit and format it; 4TB suits a 6-camera 2MP system.
- Cat5e/Cat6 cable to each camera position (up to 100m per run) — the optional Plug and Play Cable covers 6 x 20m runs — and a network cable from the NVR to your router.
- An HDMI screen for setup; day to day most people use the app.
Frequently asked questions
Do the cameras need their own power?
No — the NVR’s PoE ports power them over the network cable.
Is the night vision in colour?
No — infrared, black and white after dark, up to 30m.
Does it record sound?
No — these cameras record video only.
Is a hard drive included?
Not by default — pick one from the Hard Drive option and we fit and format it.
Is there a monthly fee?
No — recording is local to the NVR and the app is free.
Technical Specification
| NVR-108MH-C/8P Recorder | |
| IP Channels | 8 |
| PoE | 8 independent PoE ports |
| Incoming Bandwidth | 80 Mbps |
| Decoding | 8-ch @ 1080p (records up to 8MP) |
| Compression | H.265+/H.265/H.264+/H.264 |
| HDD | 1 x SATA |
| IPC-T221H-M Camera (x6) | |
| Resolution | 2 MP |
| Lens | 2.8 mm fixed |
| Night Vision | Infrared night vision up to 30m (black and white) |
| Audio | No audio |
| Features | DWDR, 3D DNR, BLC |
| Power | 12 VDC or PoE |
Further reading: Which HiLook NVR do I need? · Turret vs bullet vs dome · HiLook ColorVu 3.0 explained
| Product Code | NVR-108MH-C/8P + 6 x IPC-T221H-M |
|---|---|
| Manufacturer | HiLook by Hikvision |
| Colour | White |
| Colour | White |
| Product Type | IP CCTV Kit |
| Max Resolution | 2.1MP (1080P) |
| Number of Cameras | 6 Cameras |
| Lens Type | Fixed |
| Lens Size | 2.8 mm |
| Max. IR Range | Up to 30 m |
| Audio I/O | None |
| Power Features | PoE from the NVR (802.3af) |
