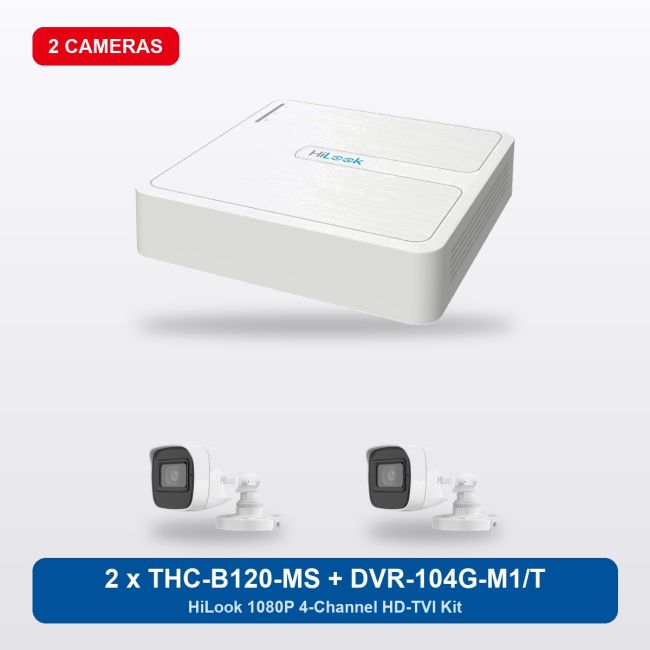

HiLook by Hikvision 1080P Full HD 4Ch Kit with 2 x THC-B120-MS 30m IR Bullet Cameras

Main Camera Features:

• 2 MP, 1920 × 1080 resolution
• 2.8 mm fixed focal lens
• Smart IR, up to 30m night vision (black and white)
• Audio over coaxial cable, built-in mic
• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
• IP66

DVR Features

• 4-channel 5-in-1 recorder: HD-TVI / AHD / CVI / CVBS / IP
• Two-way audio over coax on all HD-TVI channels
• Full-channel Motion Detection 2.0
• 1-ch IP video input (up to 5-ch total)
• H.265 Pro+, 1080p Lite @ 25/30fps per channel
• 1 SATA interface, mini 1U plastic case
• Remote viewing with the free HiLookVision or Hik-Connect app

Who is this 1080P bullet kit for?

A coax (HD-TVI) system in a box: the DVR-104G-M1/T 4-channel DVR with 2 x THC-B120-MS 2MP bullet cameras (30m IR). It suits homes, shops and small commercial sites, and is a straightforward upgrade for an old analogue system on existing RG59 coax — the DVR takes TVI, AHD, CVI and old analogue cameras on any channel, leaving 2 channels free to add cameras later. Starting from scratch with no cabling? An IP kit is the better long-term platform.

What you’ll need with it

• A surveillance-grade hard drive — choose one from the options and we fit and format it; 1–2TB suits a 2-camera system.
• RG59 coax and 12V power to each camera (pre-made shotgun cables are simplest), plus a 12V multi-way PSU — the DVR does not power cameras. The optional Plug and Play Kit covers this.
• A network cable from the DVR to your router for the app.

Frequently asked questions

Does it record sound?

Yes — each THC-B120-MS has a built-in mic and the DVR-104G-M1/T records audio over coax.

Will it work with the cameras I already have?

Yes — the DVR auto-detects analogue, TVI, AHD and CVI on each channel, so you can mix and upgrade gradually.

Is the night vision in colour?

No — infrared, black and white after dark, up to 30m.

Is a hard drive included?

Not by default — pick one from the Hard Drive option and we fit and format it.

Is there a monthly fee?

No — local recording and a free app.

Technical Specification

Further reading: NVR vs DVR — which recorder? · Turret vs bullet vs dome
